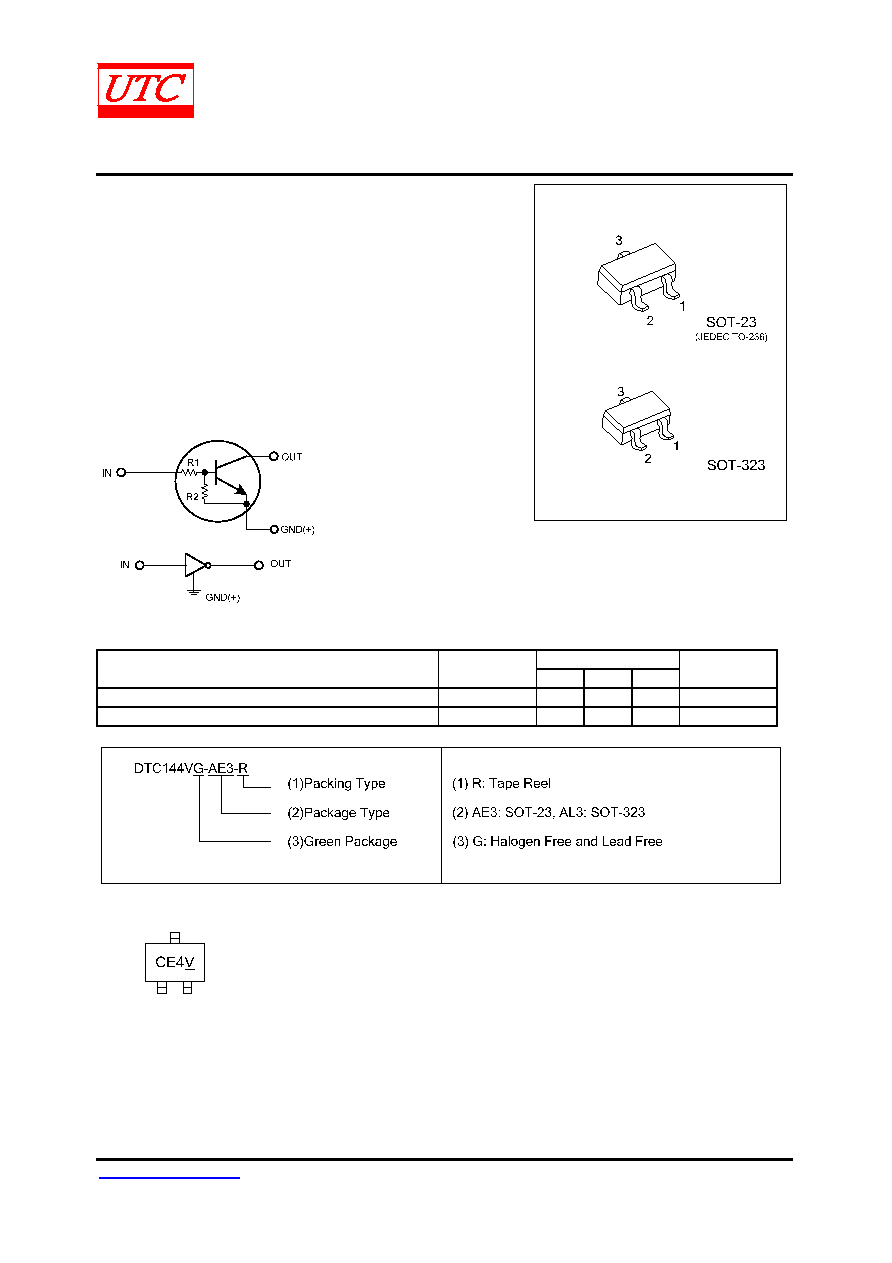

UNISONIC TECHNOLOGIES CO., LTD

DTC144V

Advance

NPN SILICON TRANSISTOR

www.unisonic.com.tw

1of 3

Copyright © 2015 Unisonic Technologies Co., Ltd

QW-R221-035 .a

NPN DIGITAL TRANSISTOR

(BUILT- IN BIAS RESISTORS)



FEATURES

* Built-in bias resistors that implies easy ON/OFF applications.

* The bias resistors are thin-film resistors with complete isolation to

allow negative input.



EQUIVALENT CIRCUIT



ORDERING INFORMATION

Pin Assignment

Ordering Number

Package

1

2

3

Packing

DTC144VG-AE3-R

SOT-23

E

B

C

Tape Reel

DTC144VG-AL3-R

SOT-323

E

B

C

Tape Reel

Note: Pin Assignment: B: Base

C: Collector

E: Emitter



MARKING
