Step Recovery Diode

Rev. V1

MSD700

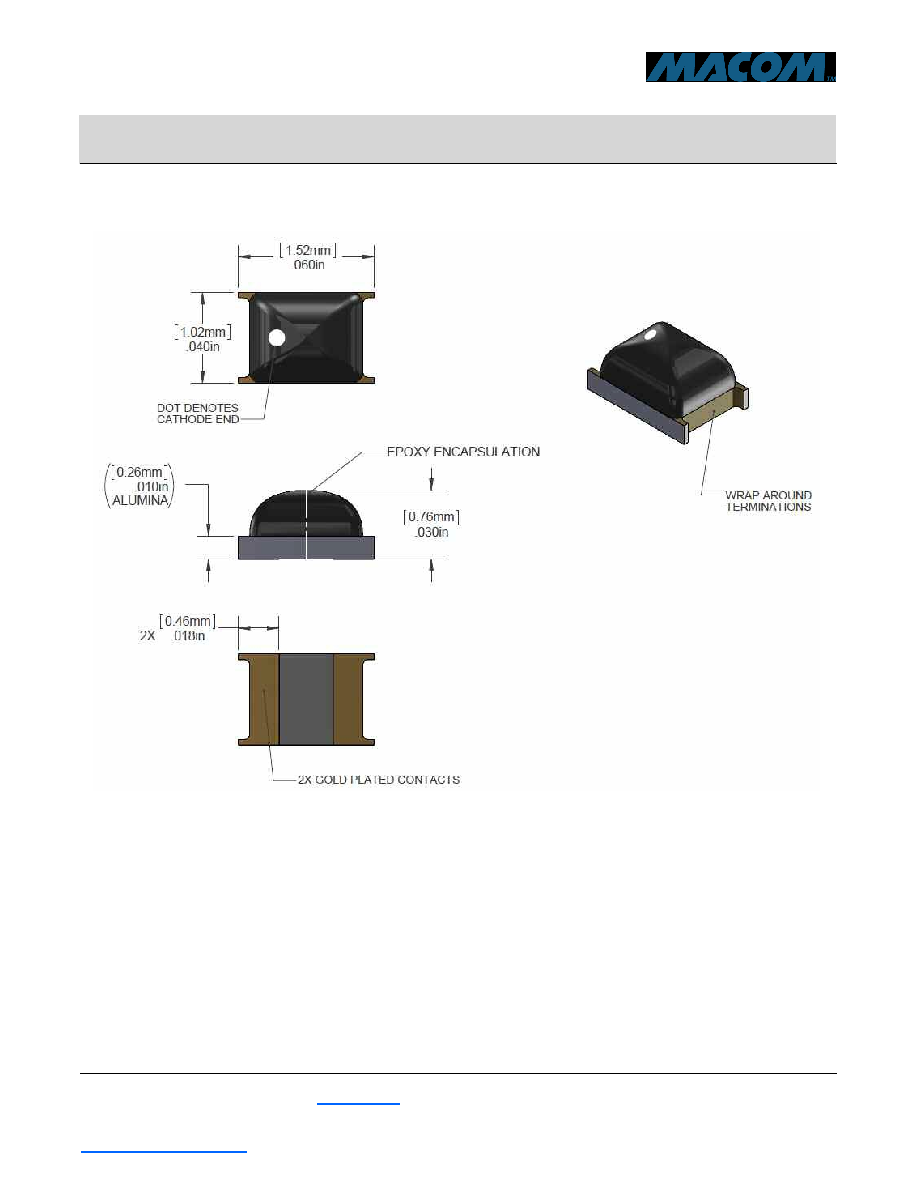

Outline (CS19-1)

Notes:

1. All dimensions in inches [mm].

3. Metal terminals composed of electrolytic Au over electrolytic Ni.
