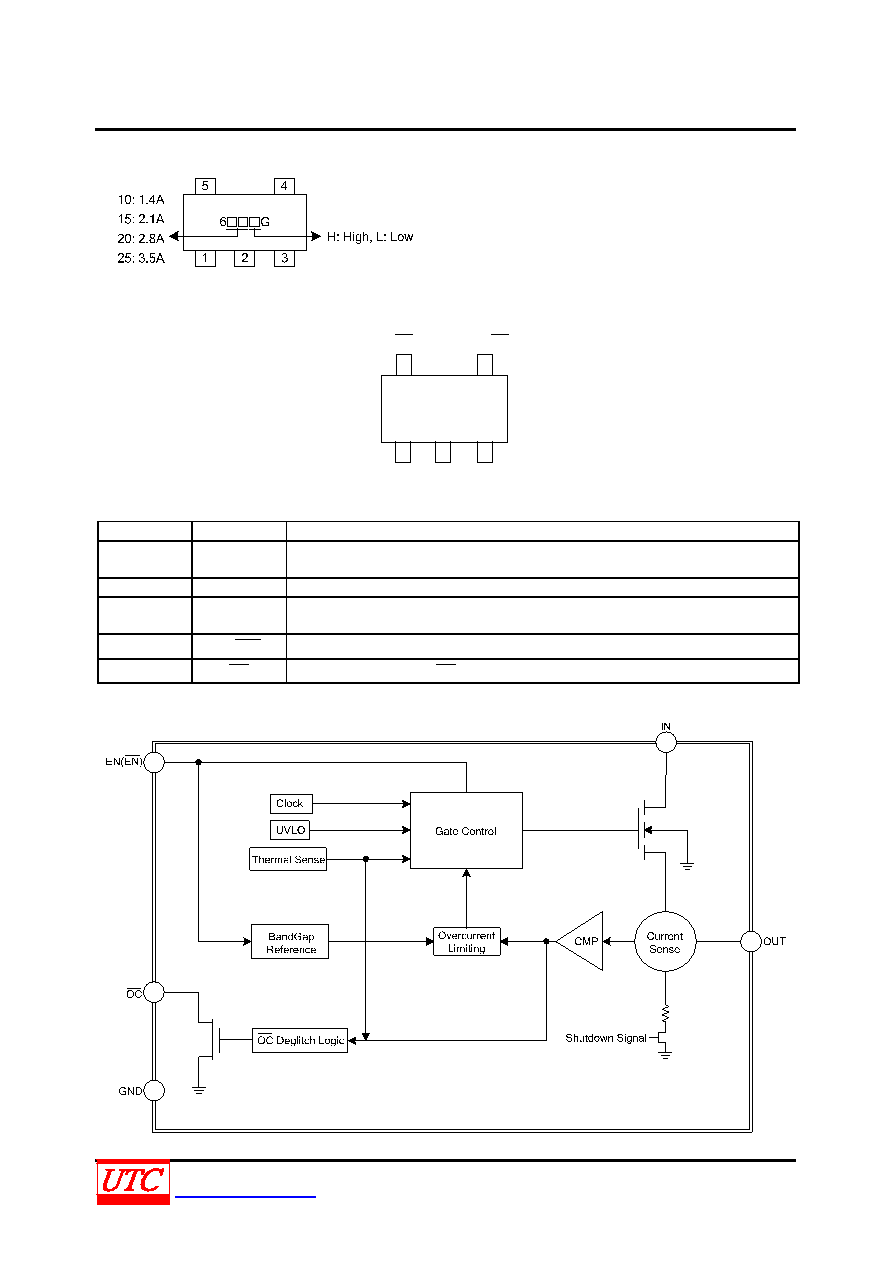

US206
Preliminary
CMOS IC
UNISONICTECHNOLOGIESCO.,LTD
2 of 4
www.unisonic.com.tw
QW-R129-021.a
MARKING
PIN CONFIGURATION
GND
OC
OUT
EN / EN
IN
1
23
4
5
PIN DESCRIPTION
PIN NO.
PIN NAME
DESCRIPTION
1
OUT
Switch Output: Output MOSFET Source. Typically connect to switched side of
load.
2
GND
Ground
3
IN
Input Supply: Output MOSFET Drain, which also supplies IC's internal circuitry.
Connect to positive supply.
4
)
EN
(
EN
Enable: Logic level enable input. Make sure EN pin never floating.
5
OC
Overcurrent open-drain OC output
BLOCK DIAGRAM
