Board description
EVLPOWERSTEP01
2/8
DocID027006 Rev 1
Board description

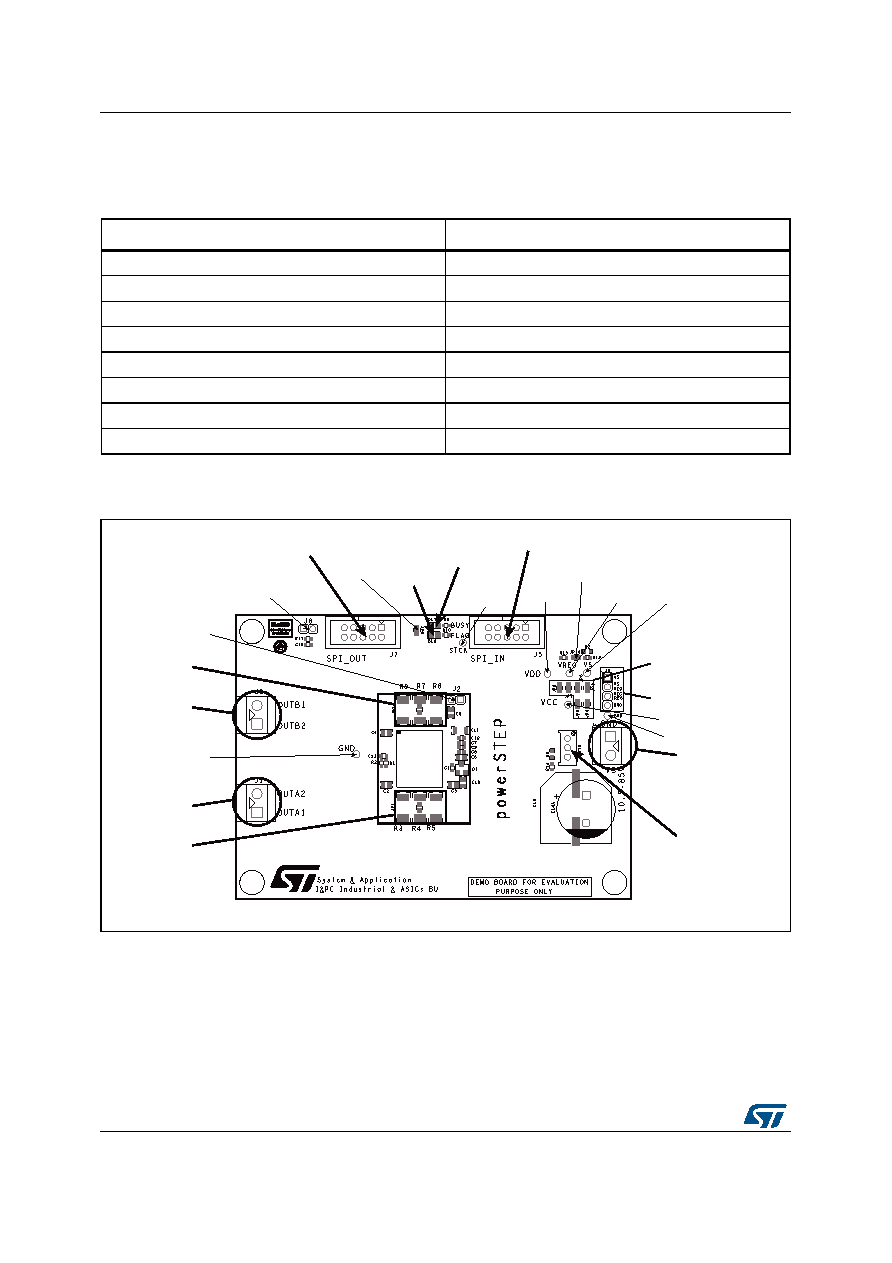

Figure 1. Jumpers and connectors location
Table 1. Electrical specifications
Parameter
Value
Supply voltage (VS)
10.5 V to 85 V
Maximum output current (each phase)
10 Ar.m.s.
Gate drivers supply voltage (VCC)
7.5 V to 15 V
Logic supply voltage
3.3 V
Logic interface supply voltage
3.3 V or 5 V
Low logic level input
0 V
High logic level input
VDD(1)
Operating ambient temperature
0 °C to +85 °C
1. All logic inputs are 5 V tolerant.
