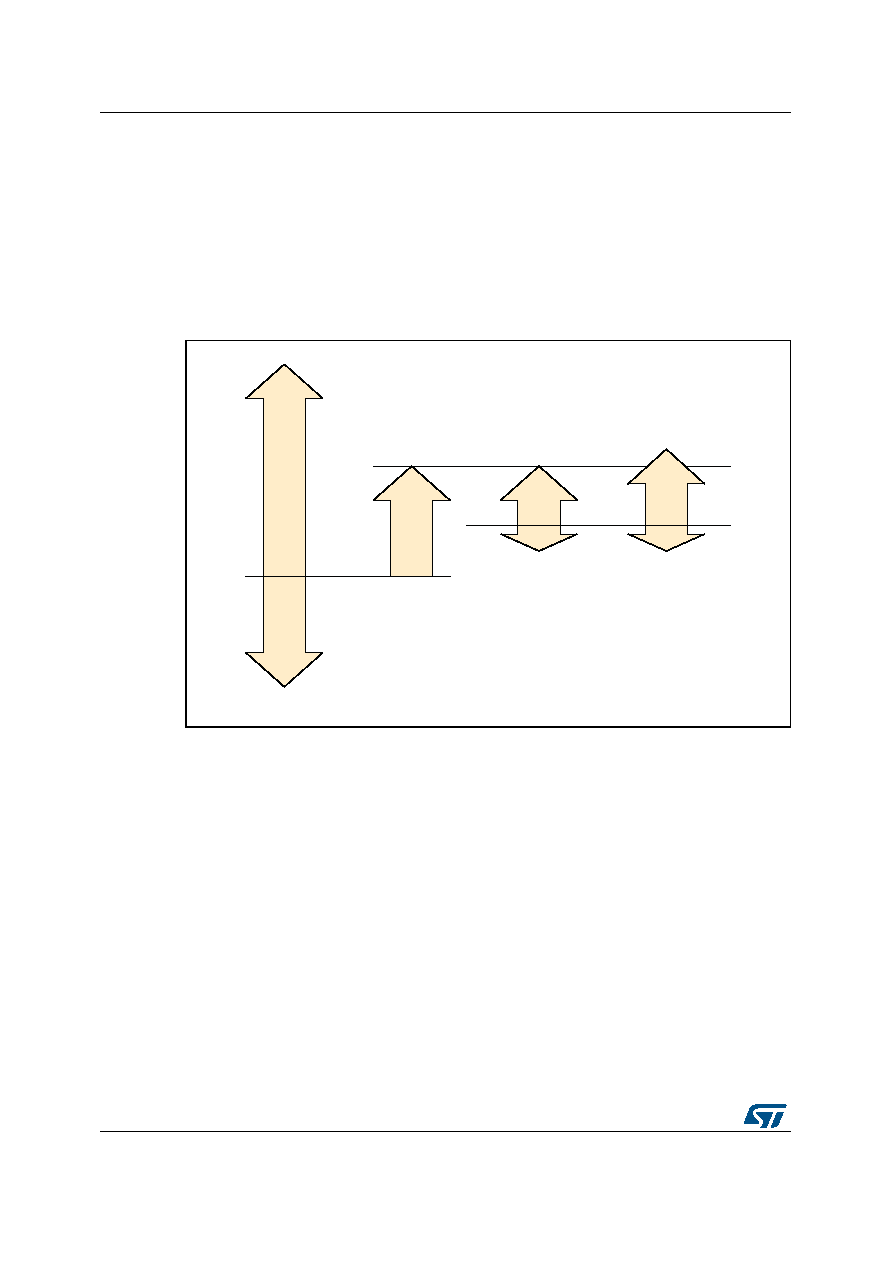

18 / 24 page ![]() Maximum permissible voltages on pins CS70 18/24 DocID026041 Rev 1 6 Maximum permissible voltages on pins The CS70 can be used in either a single or dual supply configuration. The dual-supply configuration is achieved by disconnecting Vcc- and Gnd, and connecting Vcc- to a negative supply. Figure 21 illustrates how the absolute maximum voltages on input pins Vp and Vm are referred to the VCC- potential, while the maximum voltages on the positive supply pin, gain selection pins, and output pins are referred to the Gnd pin. It should also be noted that the maximum voltage between Vcc- and Vcc+ is limited to 15 V. Figure 21. Maximum voltages on pins +75 V Vp and Vm Vcc+ -16 V +15 V +7 V Vp and Vm -0.3 V Vcc+ + 0.3 V SEL1, SEL2 and Out SEL1, SEL2 and Out Vcc- Vcc- Gnd Vcc+ Gnd -0.3V Vcc+ AM04522 |
|
|
