AOW296/AOWF296

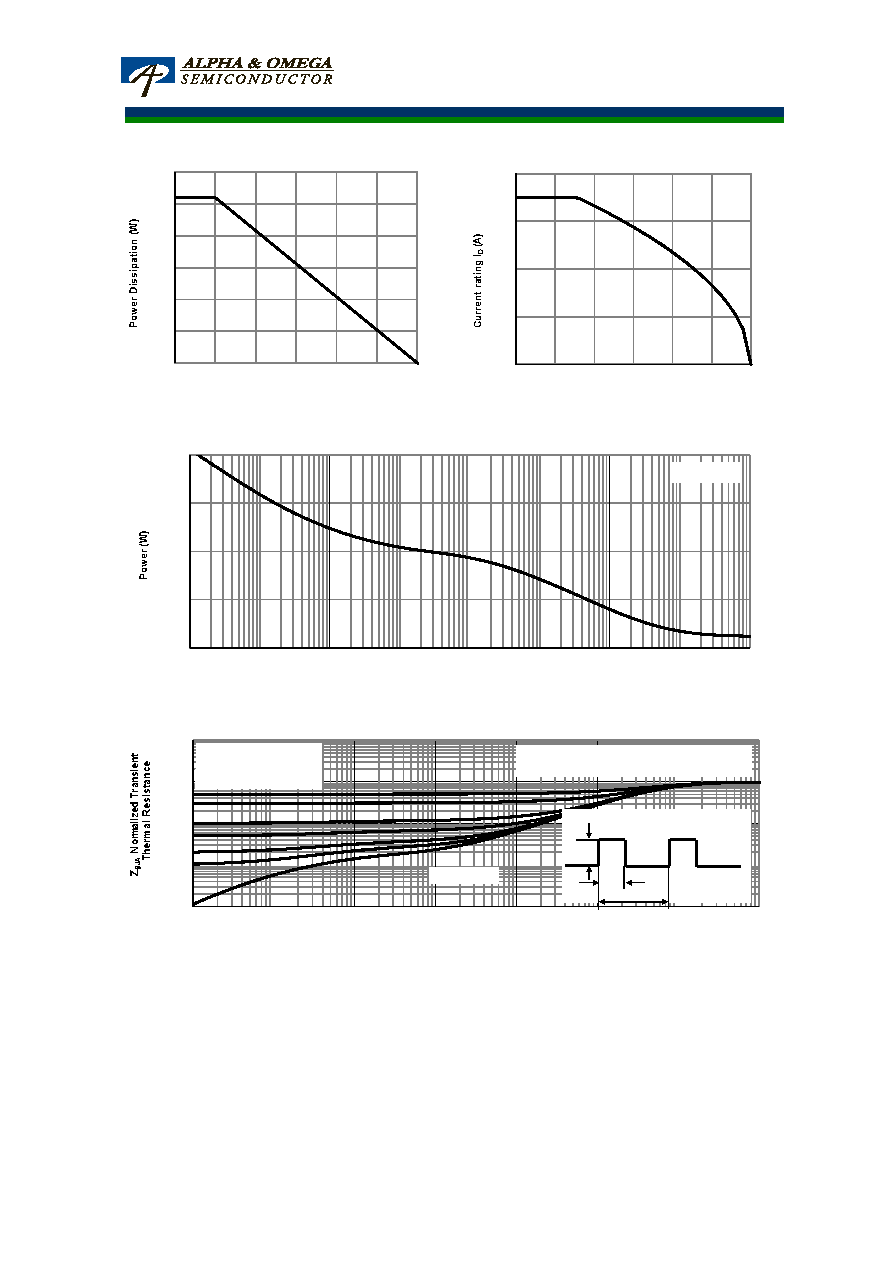

TYPICAL ELECTRICAL AND THERMAL CHARACTERISTICS
0
20
40
60
80
0
25
50
75
100
125
150
T
CASE (°C)
Figure 13: Current De-rating (Note F) - AOW296
1
10
100
1000
10000
1E-05
0.001
0.1
10
1000
Pulse Width (s)
T
A=25°C
0
20
40
60
80
100
120
0
25
50
75
100
125
150
T
CASE (°C)
Figure 12: Power De-rating (Note F) - AOW296
0.001
0.01
0.1
1
10
0.0001
0.001
0.01
0.1
1
10
100
1000
Pulse Width (s)
Figure 16: Normalized Maximum Transient Thermal Impedance (Note H) - AOW296
Single Pulse
D=T
on/T
T
J,PK=TA+PDM.Z
θJA.RθJA
T
on
T
P
DM
In descending order
D=0.5, 0.3, 0.1, 0.05, 0.02, 0.01, single pulse
Pulse Width (s)
Figure 15: Single Pulse Power Rating Junction-to-Ambient (Note H) - AOW296
RθJA=65°C/W
Rev.1.0: February 2017
www.aosmd.com
Page 5 of 8
