MMCX-R-PC Datasheet(PDF) 7 Page - Hirose Electric

Part # MMCX-R-PC
Description  Ultra Miniature Snap-on Coaxial Connector (PC Card Type 2 Mountable)
PDF  8 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  HIROSE [Hirose Electric]
Direct Link  http://www.hirose-connectors.com
Logo HIROSE - Hirose Electric

MMCX-R-PC Datasheet(HTML) 7 Page - Hirose Electric

  MMCX-R-PC Datasheet HTML 1Page - Hirose Electric MMCX-R-PC Datasheet HTML 2Page - Hirose Electric MMCX-R-PC Datasheet HTML 3Page - Hirose Electric MMCX-R-PC Datasheet HTML 4Page - Hirose Electric MMCX-R-PC Datasheet HTML 5Page - Hirose Electric MMCX-R-PC Datasheet HTML 6Page - Hirose Electric MMCX-R-PC Datasheet HTML 7Page - Hirose Electric MMCX-R-PC Datasheet HTML 8Page - Hirose Electric
Zoom Inzoom in Zoom Outzoom out
 7 / 8 page
background image
B37
7±0.05
1.6
4-Ø1±0.1
1.1
2
3.5
+0.1
0
4.6±0.1
2.54±0.05
5- Ø0.9
+0.1
0

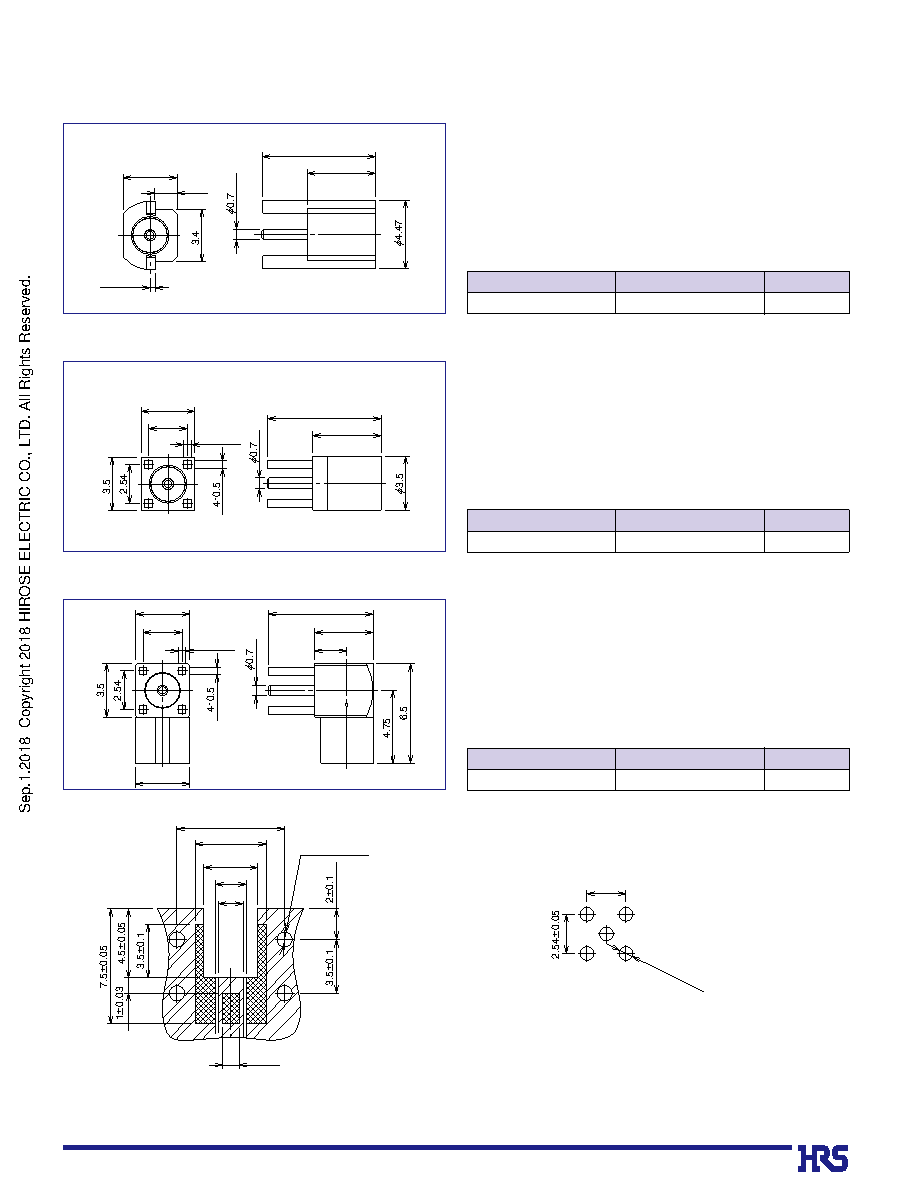

PCB mounting pattern (MMCX-LR-SMT)
(Reference) Glass epoxy FR-4 t=0.8 (
■=4.6)
PCB mounting pattern (MMCX-R-PC)
(MMCX-LR-PC-1)
■Receptacle
●Right Angle, PCB Surface Mount
3.51
0.36
1.4
7.37
4.45
CL No.
Packaging
50 pcs PER case
Part Number
339-0003-2
MMCX-LR-SMT
●Vertical, PCB Through Hole
2.54
4-0.5
3.5
4.45
7.37
●Right Angle, PCB Through Hole
4-0.5
2.54
3.5
2.1
3.8
Ø3.5
6.8
CL No.
Packaging
50 pcs PER case
Part Number
339-0005-8
MMCX-R-PC
CL No.
Packaging
50 pcs PER case
Part Number
339-0013-6
MMCX-LR-PC-1



Html Pages

1 2 3 4 5 6 7 8


Datasheet Download

Go To PDF Page


Link URL
