MMCX-R-PC Datasheet(PDF) 3 Page - Hirose Electric

Part # MMCX-R-PC
Description  Ultra Miniature Snap-on Coaxial Connector (PC Card Type 2 Mountable)
PDF  8 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  HIROSE [Hirose Electric]
Direct Link  http://www.hirose-connectors.com
Logo HIROSE - Hirose Electric

MMCX-R-PC Datasheet(HTML) 3 Page - Hirose Electric

  MMCX-R-PC Datasheet HTML 1Page - Hirose Electric MMCX-R-PC Datasheet HTML 2Page - Hirose Electric MMCX-R-PC Datasheet HTML 3Page - Hirose Electric MMCX-R-PC Datasheet HTML 4Page - Hirose Electric MMCX-R-PC Datasheet HTML 5Page - Hirose Electric MMCX-R-PC Datasheet HTML 6Page - Hirose Electric MMCX-R-PC Datasheet HTML 7Page - Hirose Electric MMCX-R-PC Datasheet HTML 8Page - Hirose Electric
Zoom Inzoom in Zoom Outzoom out
 3 / 8 page
background image
B33
MMCX – [***] – [***]
■Ordering Information
e Applicable cable, PCB mounting style
178B/U : RG-178B/U (
Ø1.8)
316/U
: R/G-316/U (
Ø2.59 max)
FHSB
:
Ø1.48 single shielded cable
PC
: PCB Through Hole type
SMT
: PCB Surface Mount type
qw
e

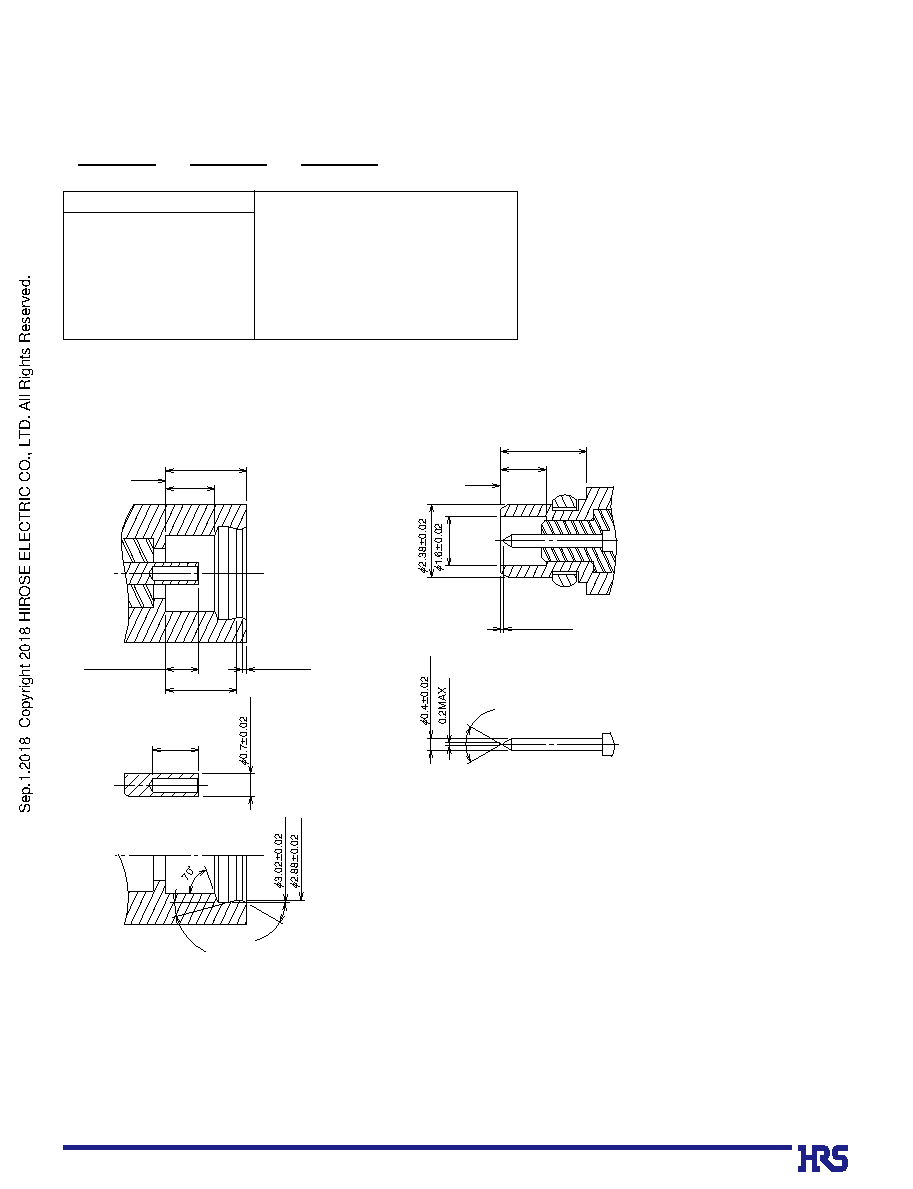

BInterface Dimensions
1.6±0.03
2.59MIN
REF.PLANE
1.05±0.15
2.32±0.02
0.23MAX
15
˚
30
˚
1.4MIN
1.48±0.02
2.69MIN
REF.PLANE
0.1
+0.15
–0.1
60˚
[Jack]
[Plug]
q Series name
: MMCX
w Connector type
P : Straight plug
LP : Right Angle plug
J : Straight jack
R : Receptacle
LR : Right Angle receptacle



Html Pages

1 2 3 4 5 6 7 8


Datasheet Download

Go To PDF Page


Link URL
