FDR54LED02 Datasheet(PDF) 1 Page - First Silicon Co., Ltd

Part # FDR54LED02
Description  Schottky Barrier Diode
PDF  4 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  FS [First Silicon Co., Ltd]
Direct Link  http://www.firstsilicon.co.kr/
Logo FS - First Silicon Co., Ltd

FDR54LED02 Datasheet(HTML) 1 Page - First Silicon Co., Ltd

  FDR54LED02 Datasheet HTML 1Page - First Silicon Co., Ltd FDR54LED02 Datasheet HTML 2Page - First Silicon Co., Ltd FDR54LED02 Datasheet HTML 3Page - First Silicon Co., Ltd FDR54LED02 Datasheet HTML 4Page - First Silicon Co., Ltd
Zoom Inzoom in Zoom Outzoom out
 1 / 4 page
background image

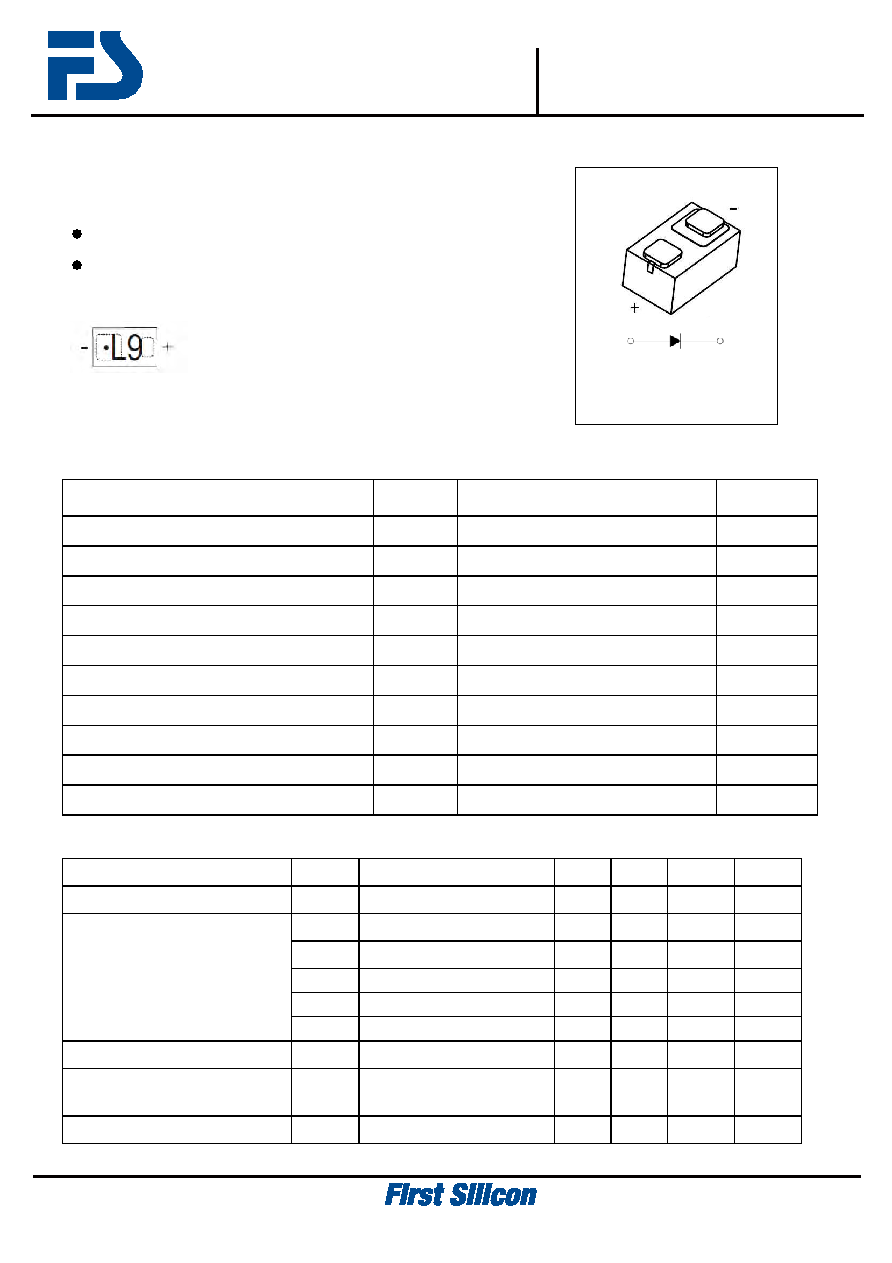

Schottky Barrier Diode
FEATURES
Extremely Fast Switching Speed
Low Forward Voltage
MARKING: L9
Maximum Ratings @Ta =25
℃
Parameter
Symbol
Limits
Unit
Non-Repetitive Peak reverse voltage
VRM
30
V
DC Blo ckin g Voltage
VR
21
V
Aver age Rectified Output Current
IO
100
mA
Forward continuous Current
IF
200
mA
Repetitiv e peak Forward Current
IFRM
300
mA
Non-repetitive Peak Forward Surge Current
@t=8 3ms
IFSM
600
mA
Power Dissip ation
Pd
200
mW
Thermal resist ance,junction to ambient air
RθJA
625
℃/W
Junction te mperature
TJ
125
℃
Storag e temperature range
TSTG
-65-150
℃
Electrical Characteristics @Ta=25
℃
Parameter
Symbol
Conditions
Min
Typ
Max
Unit
Revers e Breakdown Voltage
V (BR)R
IR=100
μA
30
V
VF1
IF=0.1mA
240
mV
VF2
IF=1.0mA
320
mV
VF3
IF=10mA
400
mV
VF4
IF=30mA
500
mV
For ward voltage
VF5
IF=100mA
1000
mV
Revers e current
IR
VR=25V
2.0
uA
Revers e recovery time
trr
IF=10mA, IR=10mA to 1mA ,
RL=100
5.0
ns
Capacitan ce between terminals
CT
VR=1V,f=1MHz
10
pF
WBFBP-02C
Ω
SEMICONDUCTOR
TECHNICAL DATA
FDR54LED02
2020. 06. 16
1/4
Revision No : 1
