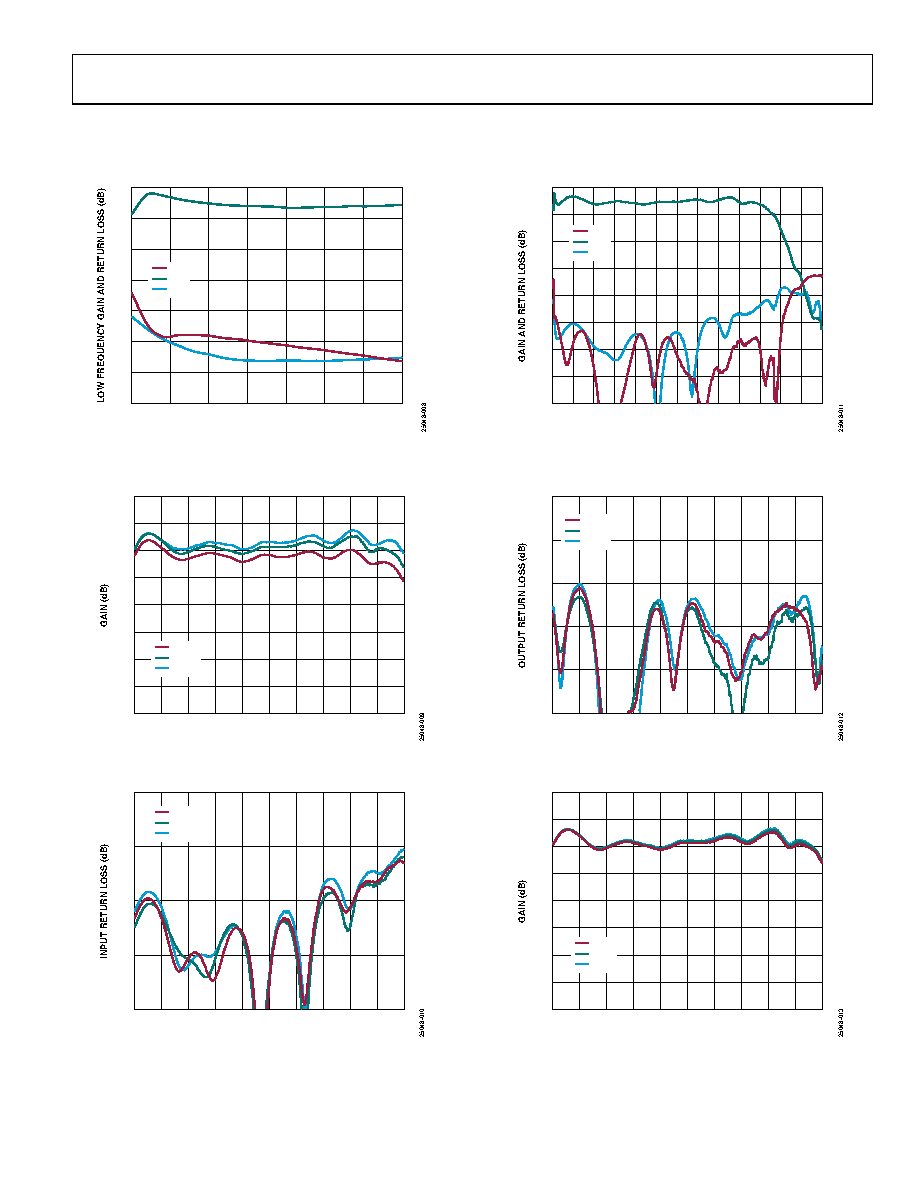

TYPICAL PERFORMANCE CHARACTERISTICS

IDQ is the drain current without the RF signal applied, and IDD is the drain current with the RF signal applied.

–20

–15

–5

–10

0.25

2.00

1.75

1.00

1.50

0.75

1.25

0.50

FREQUENCY (GHz)

S22

S21

S11

Figure 8. Low Frequency Gain and Return Loss vs. Frequency, VDD = 5 V,

IDQ = 85 mA, VGG2 = 1 V (S22 Is the Output Return Loss, S21 Is the Gain, and

S11 Is the Input Return Loss)

FREQUENCY (GHz)

+85°C

+25°C

–40°C

Figure 9.Gain vs. Frequency at Various Temperatures,

VDD = 5 V, IDQ = 85 mA, VGG2 = 1 V

–20

–15

–5

–10

FREQUENCY (GHz)

+85°C

+25°C

–40°C

Figure 10. Input Return Loss vs. Frequency at Various Temperatures,

VDD = 5 V, IDQ = 85 mA, VGG2 = 1 V

–25

–20

–15

–5

–10

FREQUENCY (GHz)

S22

S21

S11

Figure 11. Gain and Return Loss vs. Frequency,

VDD = 5 V, IDQ = 85 mA, VGG2 = 1 V

–25

–15

–5

–20

–10

FREQUENCY (GHz)

+85°C

+25°C

–40°C

Figure 12. Output Return Loss vs. Frequency at Various Temperatures,

VDD = 5 V, IDQ = 85 mA, VGG2 = 1 V

FREQUENCY (GHz)

5.0V

4.0V

3.3V

Figure 13. Gain vs. Frequency at Various VDD Voltages,

IDQ = 85 mA, VGG2 = 1 V
