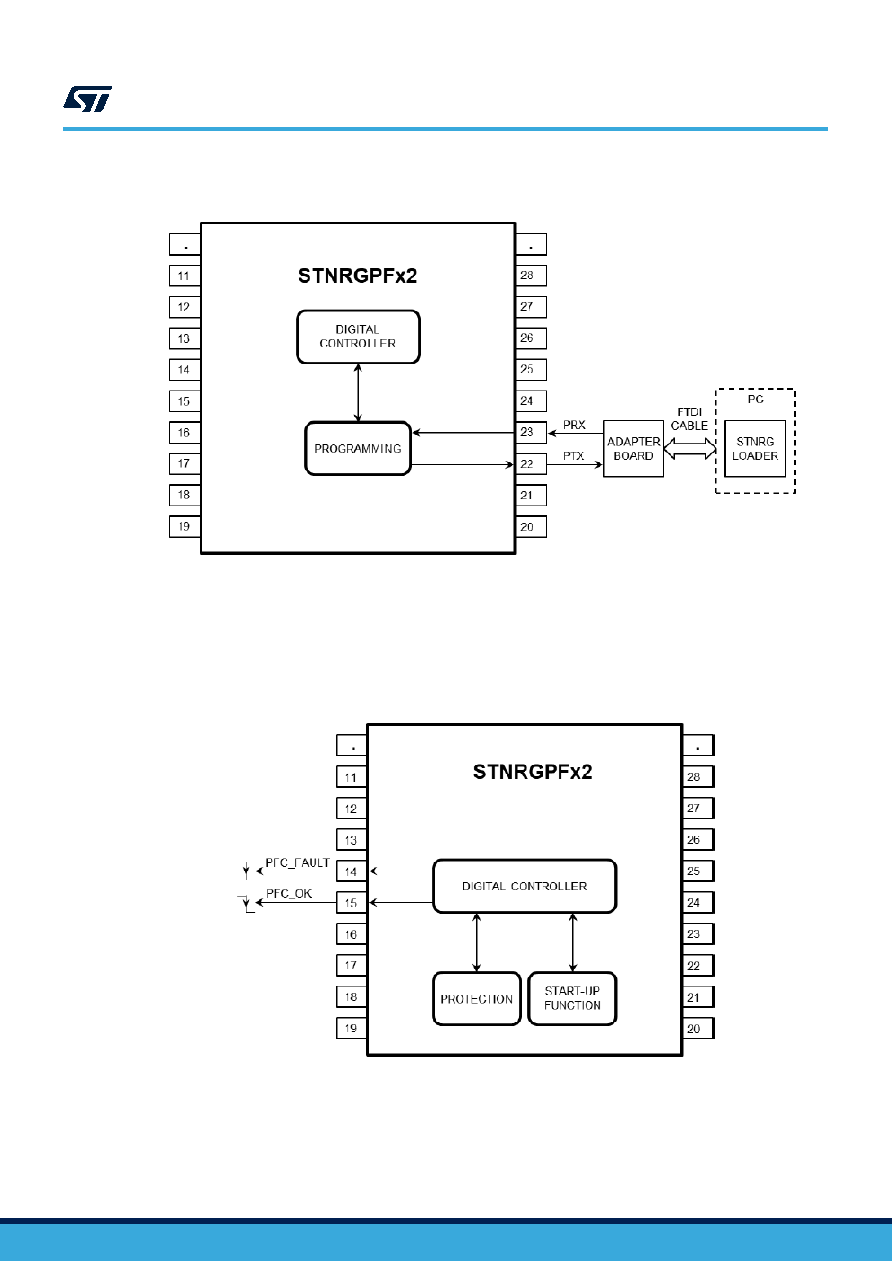

Figure 12. Programming section
3.6
Status indicator
The STNRGPFx2 include two pin to identify the running or fault status. These functions are defined on Pin 14 and
Pin 15 (See Figure 13 )
Figure 13. Status Indicator
3.7
Start-up & Inrush Current Limiter function
The start-up function can be divided in two phases. The first phase is the Inrush Current Limiter and the second
phase is the PFC Soft Power-On.
STNRGPF02, STNRGPF12
Status indicator
DS12895 - Rev 2
page 13/43
