Data Sheet
ADBMS1818
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. B | 15 of 92

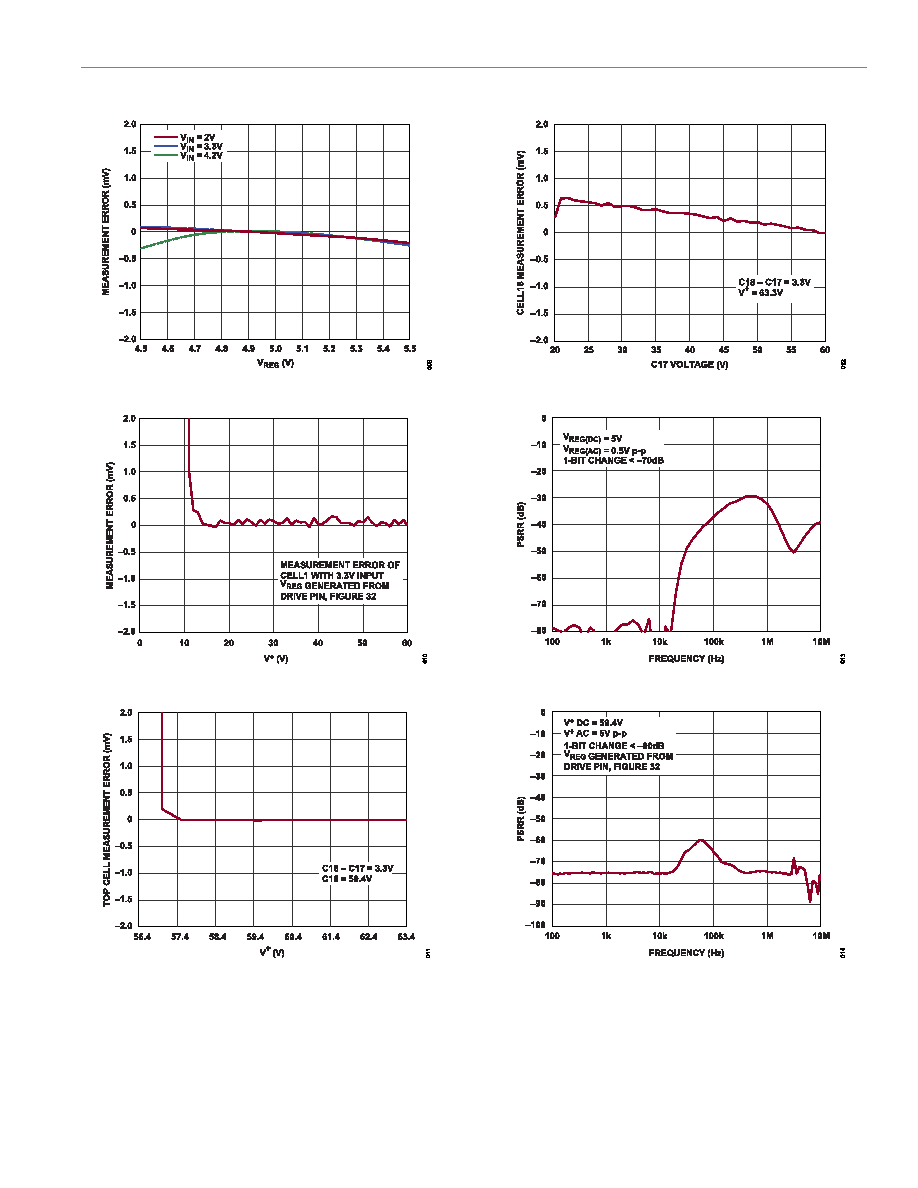

Figure 9. Measurement Error vs. VREG
Figure 10. Measurement Error vs. V+
Figure 11. Top Cell Measurement Error vs. V+
Figure 12. Measurement Error vs. Common-Mode Voltage
Figure 13. Measurement Error Due to a VREG AC Disturbance
Figure 14. Measurement Error Due to a V+ AC Disturbance (PSRR is Power
Supply Rejection Ratio)
