ADBMS1818ASWAZ-R7 Datasheet(PDF) 20 Page - Analog Devices

Part # ADBMS1818ASWAZ-R7
Description  18-Cell Battery Monitor with Daisy Chain Interface
PDF  92 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  AD [Analog Devices]
Direct Link  http://www.analog.com
Logo AD - Analog Devices

ADBMS1818ASWAZ-R7 Datasheet(HTML) 20 Page - Analog Devices

Back Button ADBMS1818ASWAZ-R7 Datasheet HTML 16Page - Analog Devices ADBMS1818ASWAZ-R7 Datasheet HTML 17Page - Analog Devices ADBMS1818ASWAZ-R7 Datasheet HTML 18Page - Analog Devices ADBMS1818ASWAZ-R7 Datasheet HTML 19Page - Analog Devices ADBMS1818ASWAZ-R7 Datasheet HTML 20Page - Analog Devices ADBMS1818ASWAZ-R7 Datasheet HTML 21Page - Analog Devices ADBMS1818ASWAZ-R7 Datasheet HTML 22Page - Analog Devices ADBMS1818ASWAZ-R7 Datasheet HTML 23Page - Analog Devices ADBMS1818ASWAZ-R7 Datasheet HTML 24Page - Analog Devices Next Button
Zoom Inzoom in Zoom Outzoom out
 20 / 92 page
background image
Data Sheet
ADBMS1818
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. B | 20 of 92

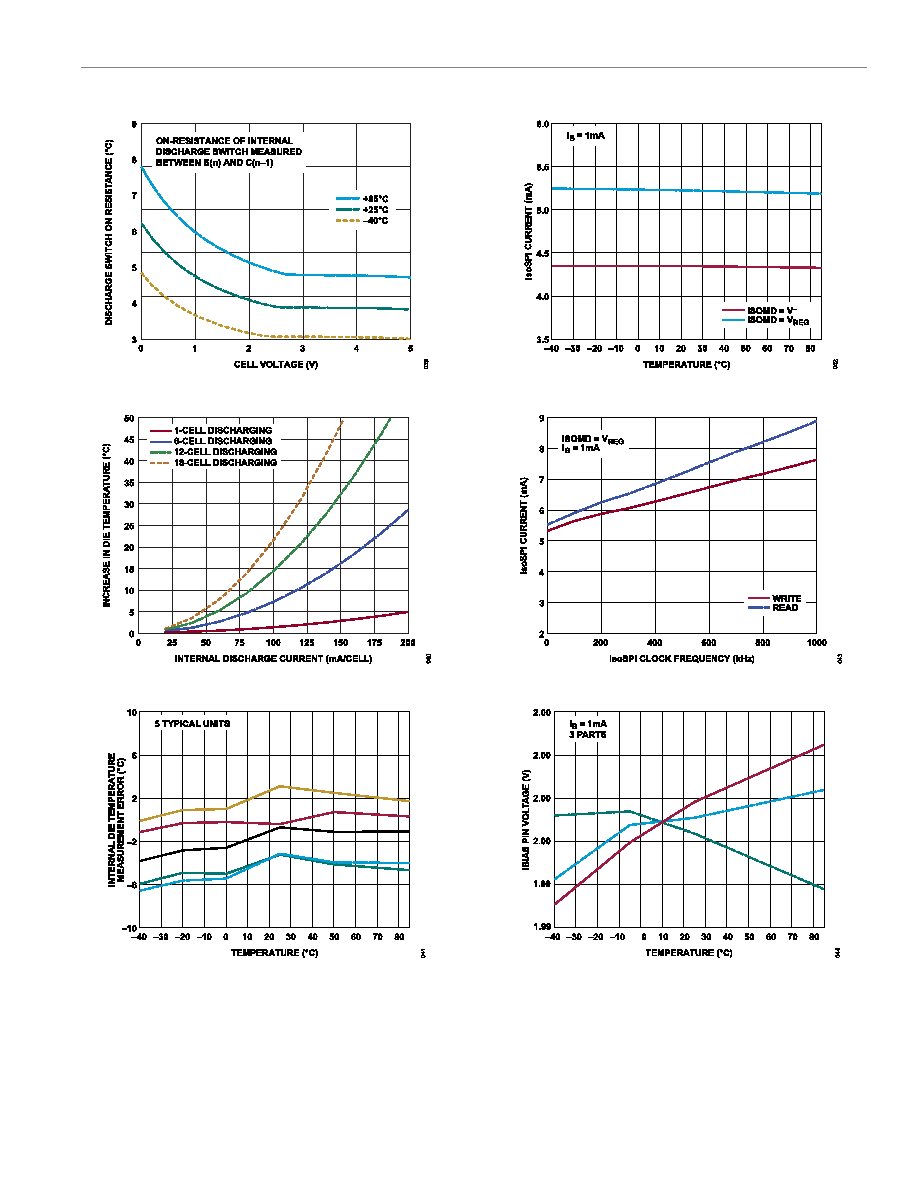

Figure 39. Discharge Switch On Resistance vs. Cell Voltage
Figure 40. Increase in Die Temperature vs. Internal Discharge Current
Figure 41. Internal Die Temperature Measurement Error vs. Temperature
Figure 42. isoSPI Current (Ready) vs. Temperature
Figure 43. isoSPI Current (Active) vs. isoSPI Clock Frequency
Figure 44. IBIAS Pin Voltage vs. Temperature
