PD30ETDR10BPM5IO Datasheet(PDF) 4 Page - Carlo Gavazzi Holding AG

Part # PD30ETDR10BPM5IO
Description  Photoelectric Diffuse Reflective sensors with IO-Link communication
PDF  19 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  CARLOGAVAZZI [Carlo Gavazzi Holding AG]
Direct Link  https://gavazziautomation.com/
Logo CARLOGAVAZZI - Carlo Gavazzi Holding AG

PD30ETDR10BPM5IO Datasheet(HTML) 4 Page - Carlo Gavazzi Holding AG

  PD30ETDR10BPM5IO Datasheet HTML 1Page - Carlo Gavazzi Holding AG PD30ETDR10BPM5IO Datasheet HTML 2Page - Carlo Gavazzi Holding AG PD30ETDR10BPM5IO Datasheet HTML 3Page - Carlo Gavazzi Holding AG PD30ETDR10BPM5IO Datasheet HTML 4Page - Carlo Gavazzi Holding AG PD30ETDR10BPM5IO Datasheet HTML 5Page - Carlo Gavazzi Holding AG PD30ETDR10BPM5IO Datasheet HTML 6Page - Carlo Gavazzi Holding AG PD30ETDR10BPM5IO Datasheet HTML 7Page - Carlo Gavazzi Holding AG PD30ETDR10BPM5IO Datasheet HTML 8Page - Carlo Gavazzi Holding AG PD30ETDR10BPM5IO Datasheet HTML 9Page - Carlo Gavazzi Holding AG Next Button
Zoom Inzoom in Zoom Outzoom out
 4 / 19 page
background image
4
Carlo Gavazzi Industri A/S
PD30ETDx10BPxxIO - IO-Link
PD30ETDx10BPxxIO ENG
28/04/2021

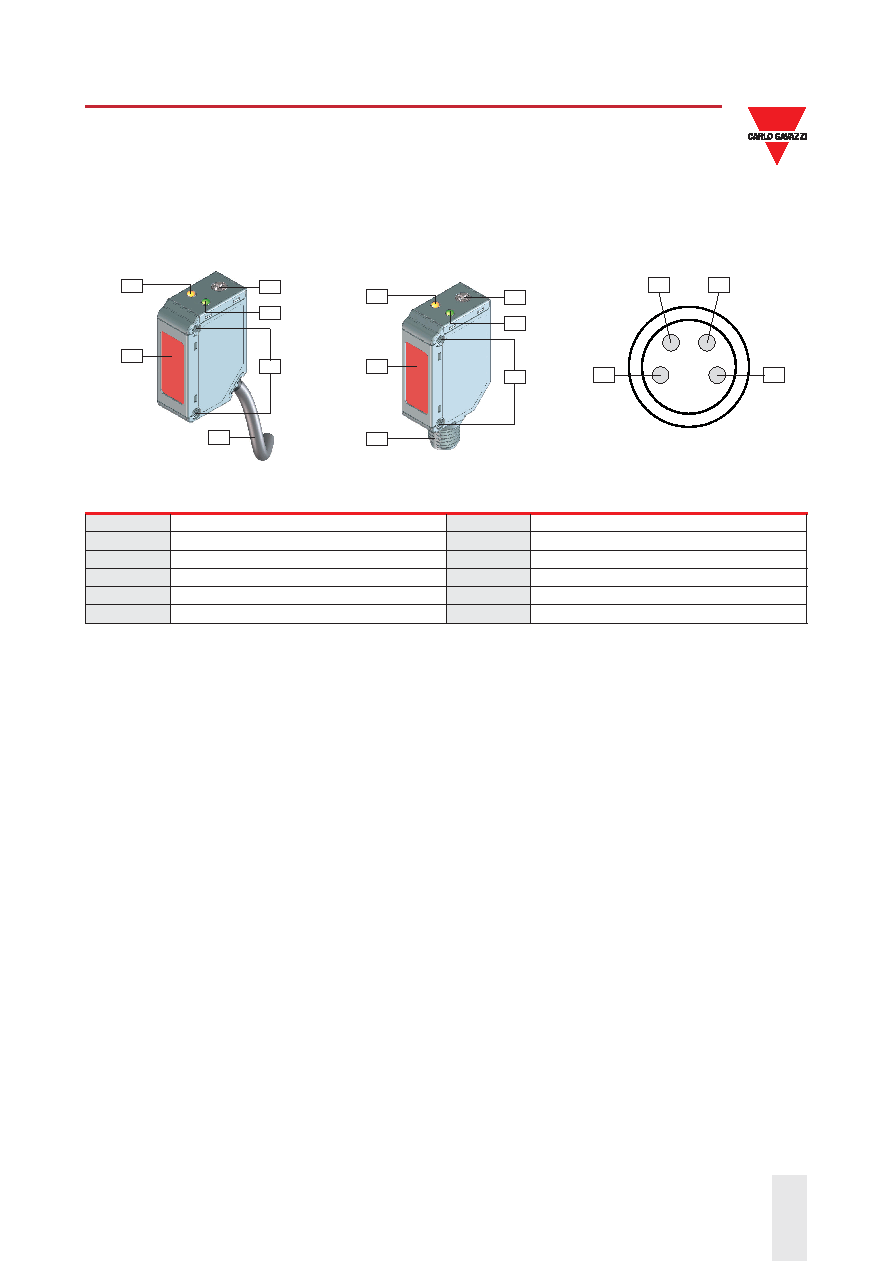

Structure
A
B
D
C
E
F
A
B
D
C
E
G
2
3
1
4
Fig. 1 Cable
Fig. 2 Plug
Fig. 3 "M8-plug" Pin numbers
A
Sensitivity adjustment (Top trimmer)
G
M8, 4-pin male connector
B
Yellow LED
1
Brown
C
Green LED
2
White
D
M3 Fixing holes for sensor mounting
3
Blue
E
Sensing window
4
Black
F
2 m, 4 wire PVC Ø 3.3 mm cable
