STPR620CT Datasheet(PDF) 5 Page - STMicroelectronics

Part # STPR620CT
Description  ULTRA FAST RECOVERY RECTIFIER DIODES
PDF  6 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  STMICROELECTRONICS [STMicroelectronics]
Direct Link  http://www.st.com
Logo STMICROELECTRONICS - STMicroelectronics

STPR620CT Datasheet(HTML) 5 Page - STMicroelectronics

  STPR620CT Datasheet HTML 1Page - STMicroelectronics STPR620CT Datasheet HTML 2Page - STMicroelectronics STPR620CT Datasheet HTML 3Page - STMicroelectronics STPR620CT Datasheet HTML 4Page - STMicroelectronics STPR620CT Datasheet HTML 5Page - STMicroelectronics STPR620CT Datasheet HTML 6Page - STMicroelectronics
Zoom Inzoom in Zoom Outzoom out
 5 / 6 page
background image
Cooling method : C
Marking : Type number
Weight : 2.08 g
Recommended torque value : 0.55m.N
Maximum torque value : 0.70m.N

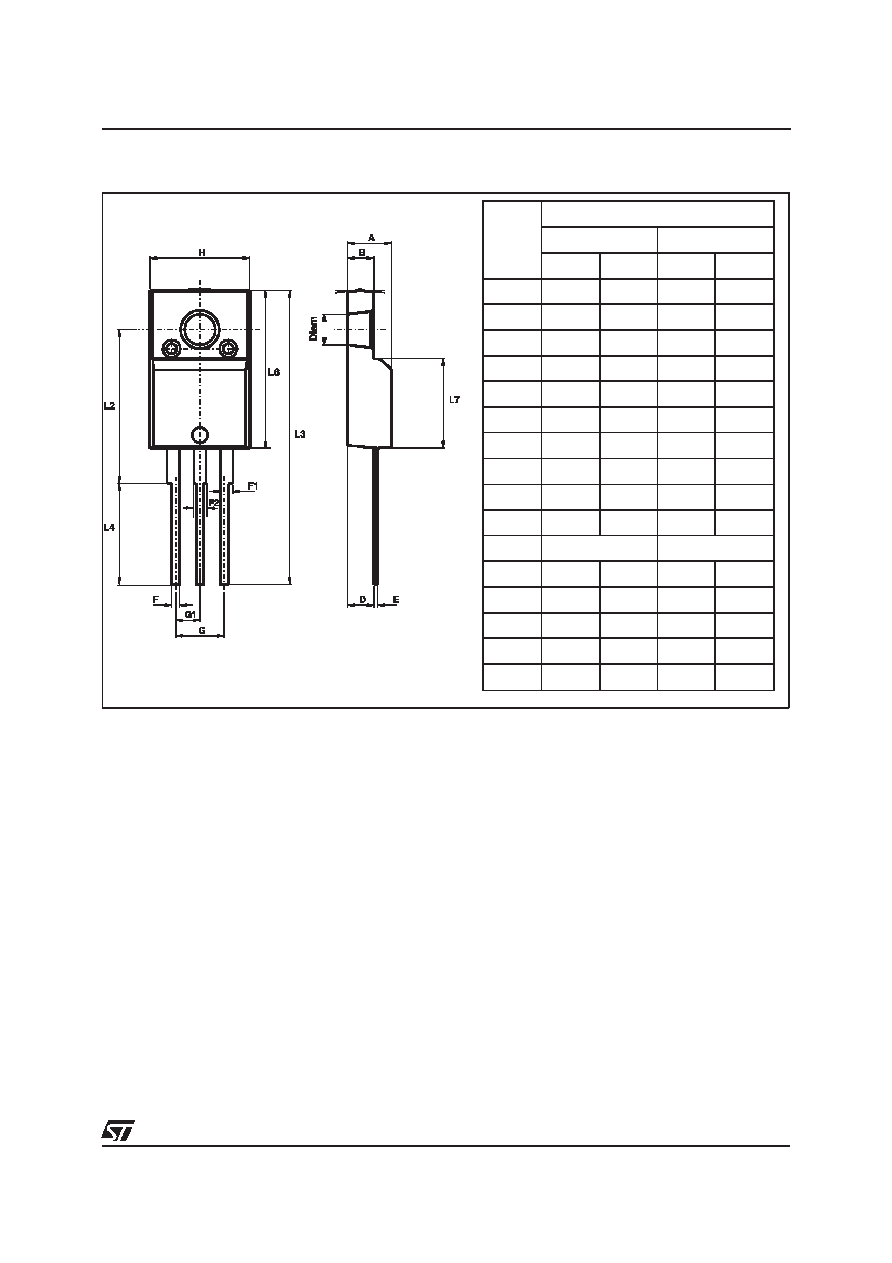

PACKAGE MECHANICAL DATA
ISOWATT220AB (JEDEC outline)
REF.
DIMENSIONS
Millimeters
Inches
Min.
Max.
Min.
Max.
A
4.40
4.60
0.173
0.181
B
2.50
2.70
0.098
0.106
D
2.50
2.75
0.098
0.108
E
0.40
0.70
0.016
0.028
F
0.75
1.00
0.030
0.039
F1
1.15
1.70
0.045
0.067
F2
1.15
1.70
0.045
0.067
G
4.95
5.20
0.195
0.205
G1
2.40
2.70
0.094
0.106
H
10.00
10.40
0.394
0.409
L2
16.00 typ.
0.630 typ.
L3
28.60
30.60
1.125
1.205
L4
9.80
10.60
0.386
0.417
L6
15.90
16.40
0.626
0.646
L7
9.00
9.30
0.354
0.366
Diam
3.00
3.20
0.118
0.126
STPR620CT/STPR620CF
