Section 19 Serial Communication Interface (SCI, IrDA, CRC)

Rev. 2.00 Sep. 24, 2008 Page 921 of 1468

REJ09B0412-0200

Yes

<End>

[1]

Initialization

Start reception

[2]

Yes

Read RDRF flag in SSR

[4]

[5]

Clear RE bit in SCR to 0

Read ORER, PER, and

FER flags in SSR

Error processing

(Continued on next page)

[3]

Read receive data in RDR, and

clear RDRF flag in SSR to 0

Yes

PER

∨ FER ∨ ORER = 1

RDRF = 1

All data received?

[1] SCI initialization:

The RxD pin is automatically

designated as the receive data input

pin.

[2] [3] Receive error processing and break

detection:

If a receive error occurs, read the

ORER, PER, and FER flags in SSR to

identify the error. After performing the

appropriate error processing, ensure

that the ORER, PER, and FER flags are

all cleared to 0. Reception cannot be

resumed if any of these flags are set to

1. In the case of a framing error, a

break can be detected by reading the

value of the input port corresponding to

the RxD pin.

[4] SCI state check and receive data read:

Read SSR and check that RDRF = 1,

then read the receive data in RDR and

clear the RDRF flag to 0. Transition of

the RDRF flag from 0 to 1 can also be

identified by an RXI interrupt.

[5] Serial reception continuation procedure:

To continue serial reception, before the

stop bit for the current frame is

received, read the RDRF flag and RDR,

and clear the RDRF flag to 0.

However, the RDRF flag is cleared

automatically when the DMAC or DTC

is initiated by an RXI interrupt and

reads data from RDR.

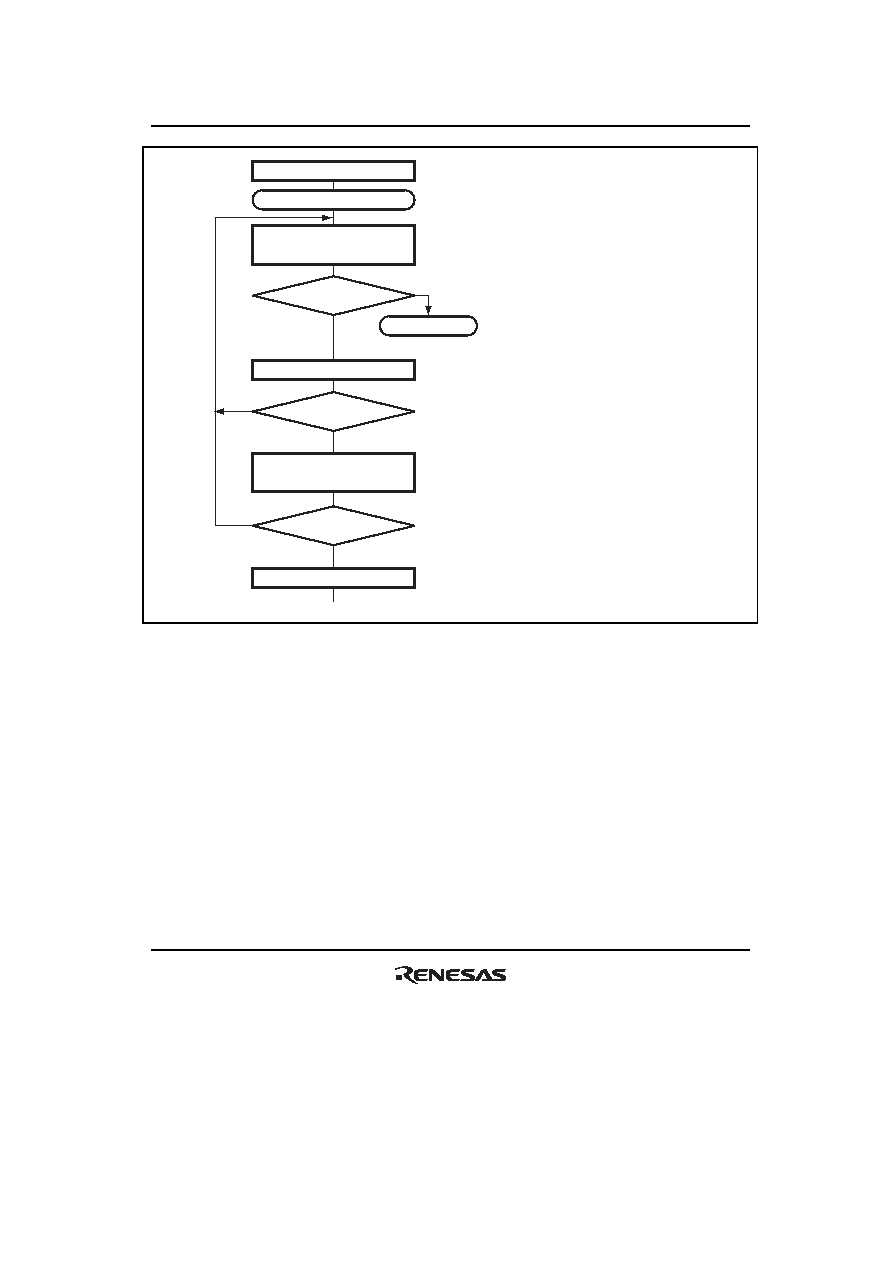

Figure 19.12 Sample Serial Reception Flowchart (1)
