Section 21 I
2C Bus Interface 2 (IIC2)
Rev. 2.00 Sep. 24, 2008 Page 1062 of 1468
REJ09B0412-0200
TDRE = 1?
Yes
Yes
No
No
No
[1]
[4]
[5]
[6]
[7]
[8]
[9]
[2]
[3]
Yes
TEND = 1?
[1] Clear the AAS flag.
[2] Set the transmit data for ICDRT (except the last byte).
[3] Wait for ICDRT empty.
[4] Set the last byte of transmit data.
[5] Wait for the last byte of data to be transmitted.
[6] Clear the TEND flag.
[7] Set to slave receive mode.
[8] Dummy read ICDRR to free the SCL line.
[9] Clear the TDRE flag.
Slave transmit mode
Clear AAS in ICSR
Write the transmit data
to ICDRT
Read TRD in ICSR
Last byte?
Write the transmit data
to ICDRT
Read TEND in ICSR
Clear TEND in ICSR
Set TRS = 0 (ICCRA)
Dummy read ICDRR
Clear TDRE in ICSR
End

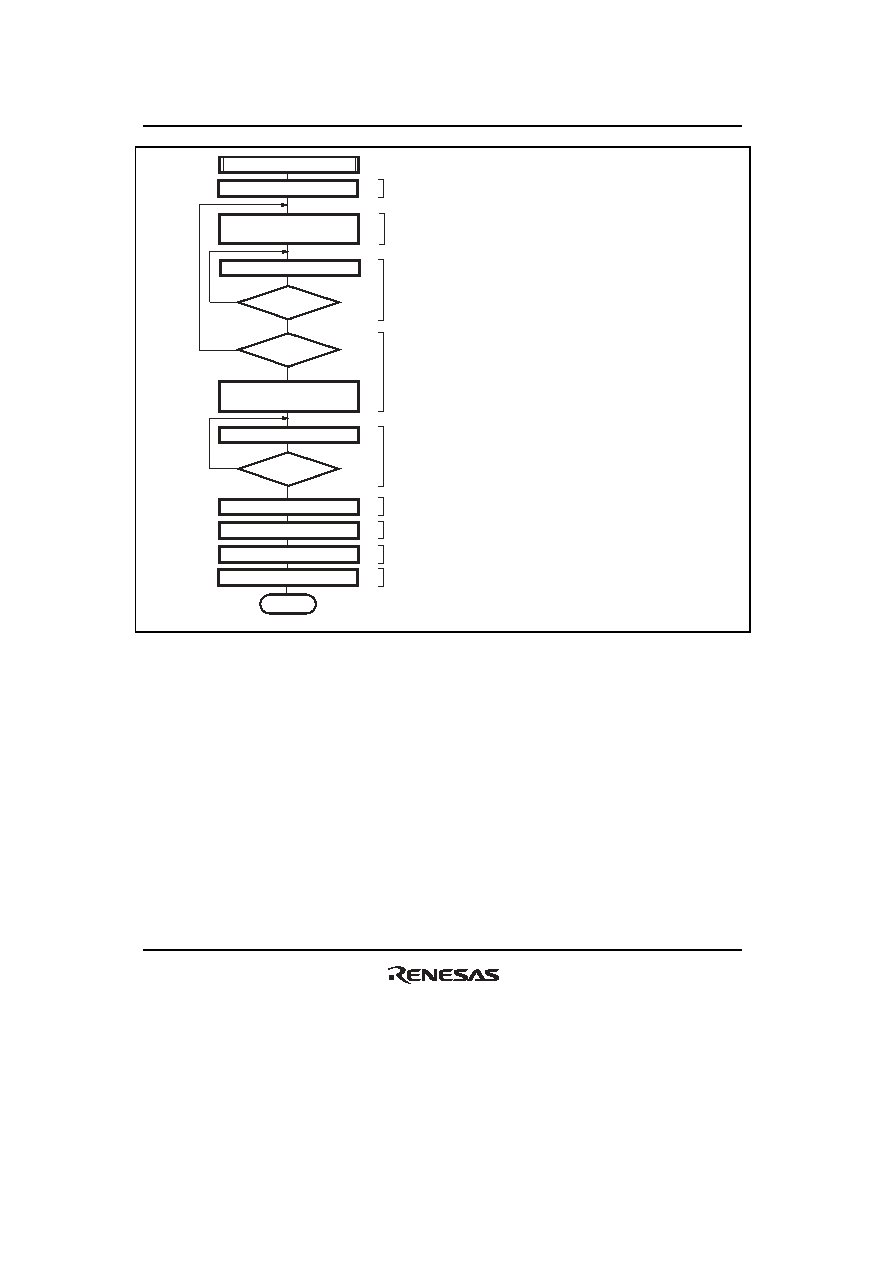

Figure 21.16 Sample Flowchart for Slave Transmit Mode
