Copyright © Future Technology Devices International Limited
4
FT260 HID-CLASS USB TO UART/I2C BRIDGE IC
Version 1.1
Document No.: FT_001272 Clearance No.: FTDI#484
2

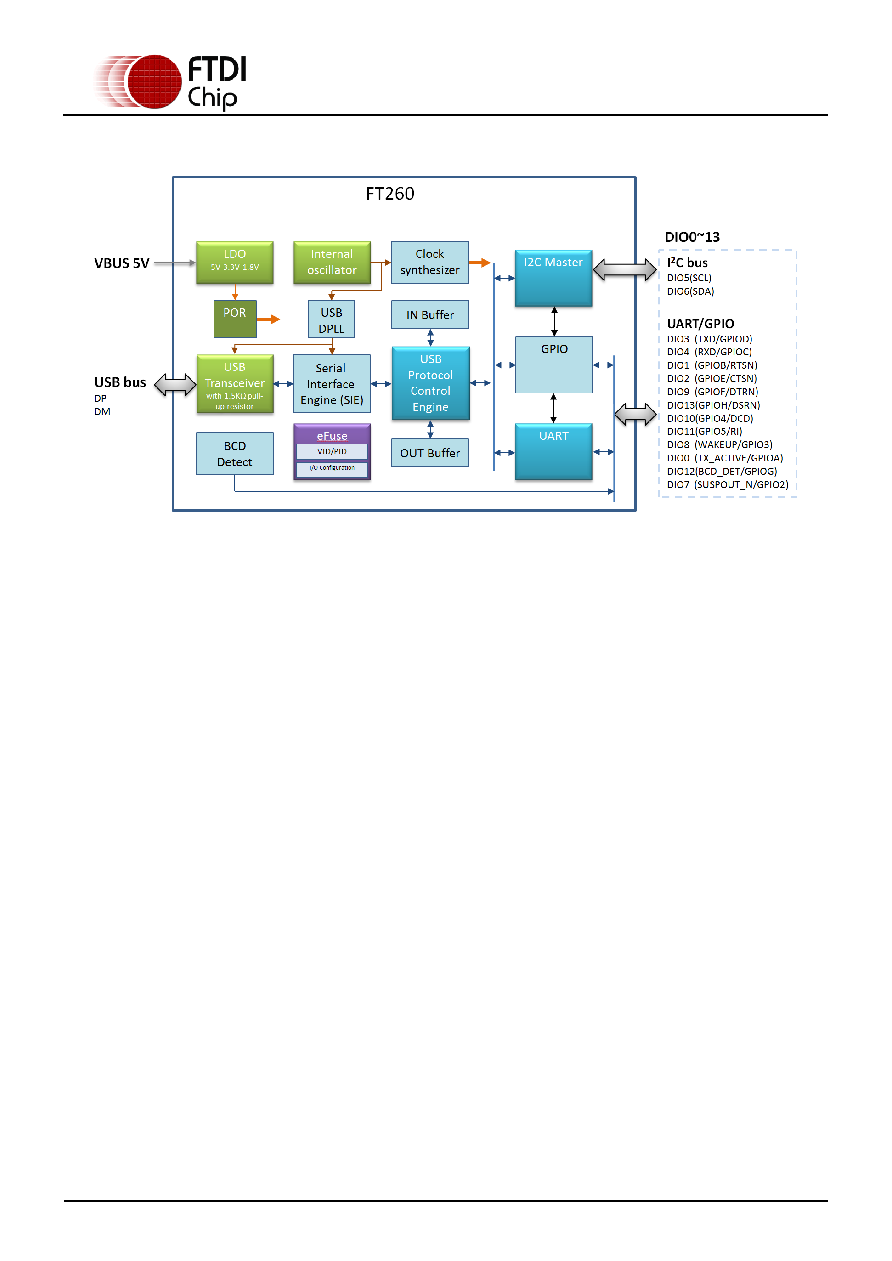

FT260 Block Diagram
Figure 2.1 FT260 Block Diagram
For a description of each function please refer to Function Description.
