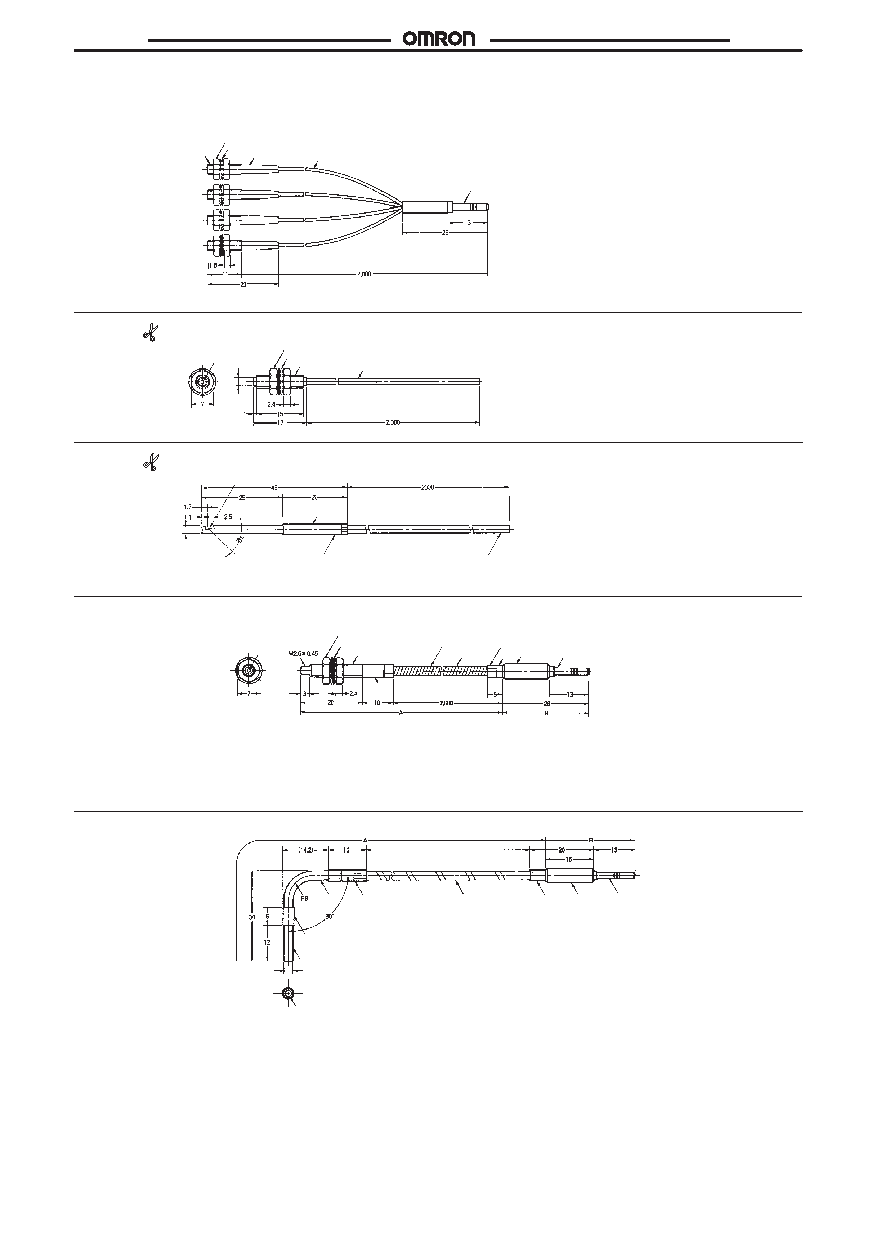

E3X-NH

E32-T51

E32-T61

Note:

Section A resists 300

°C and section B (which is inserted to the Amplifier) resists 110°C.

The operating temperature of the section to be inserted (marked with *) must be within

the operating temperature range of the Amplifier.

Two toothed washers

Two hexagon clamping nuts

Sensing head M4 x 0.7 (nickel-plated brass)

Optical fiber, 2.2 dia.

2.85 dia.

1.5 dia.

4 dia.

4 dia. 5 dia.

2.8 dia.

Sleeve

SUS flexible tube

Hexagon clamping screw

1.0 dia.

Two hexagon clamping nuts

Two toothed washers

Sensing head M4 x 0.7

(SUS303)

Note:

Resistant temperature is 150

°C.

Resistant temperature is 130

°C

when used continuously.

E32-M21

Sensing head

M3 x 0.35

(SUS303)

Two hexagon clamping nuts

Two toothed washers

Silicone tube (see note)

Plastic fibers, four, 1 dia.

Sleeve

Note:

One set of silicone tubes is black while the other

set is grey for easy identification when they are

connected to the emitter and receiver.

E32-T54

Note:

Resistant temperature is 150

°C.

Resistant temperature is 130

°C

when used continuously.

Sensing head (stainless)

Optical fiber, 2.2 dia.

3 dia.

Sensing surface

2 dia.

E32-T84S

Note:

Section A resists 200

°C and section B (which is inserted to the Amplifier) resists 110°C.

The operating temperature of the section to be inserted (marked with *) must be within

the operating temperature range of the Amplifier.

2.9-dia flexible

tube (stainless)

Sensing head

(stainless)

Lens (2 dia.)

Sleeve

5 dia.

4 dia.

3 dia.

4 dia.

3 dia.

3.5 dia.

2,000 (standard length)

(See note)
