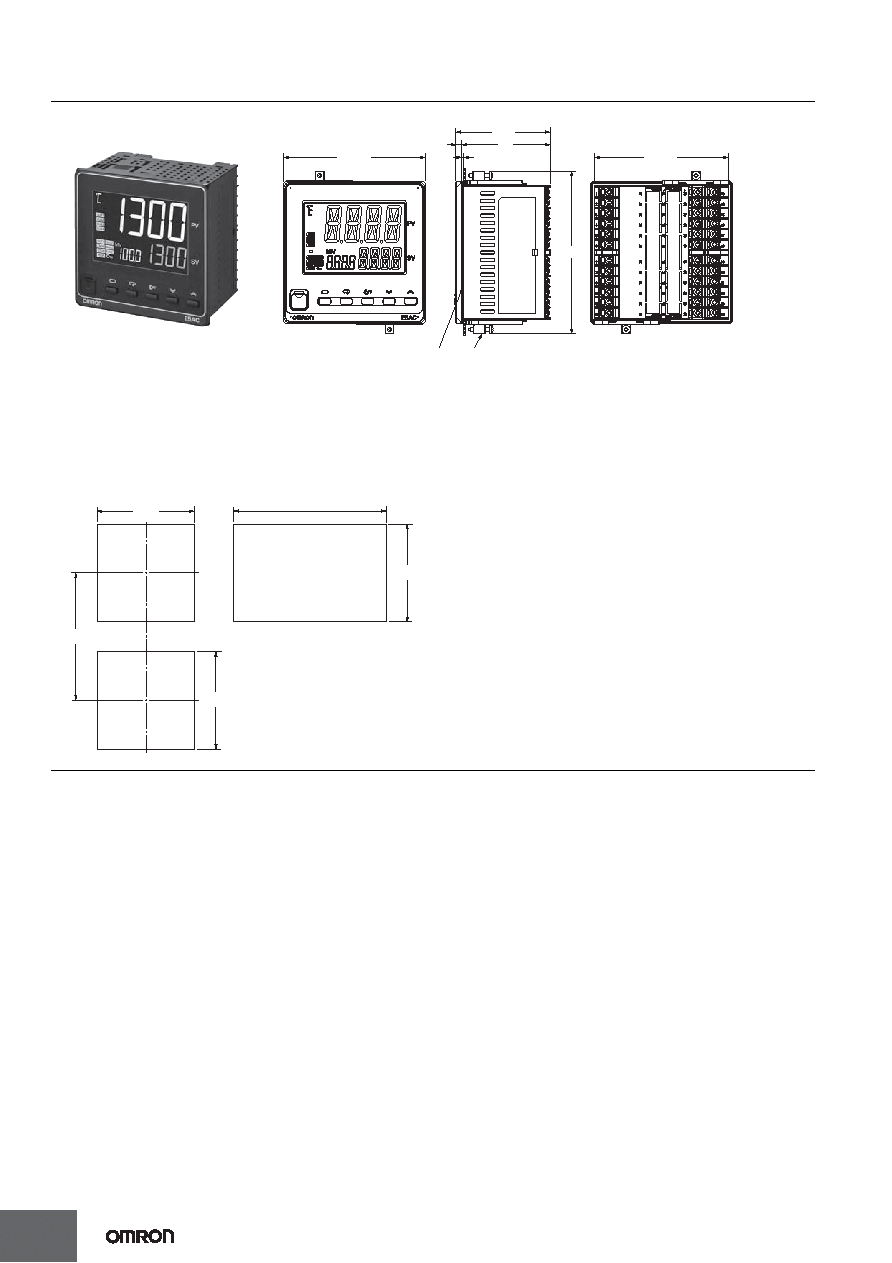

E5EC/E5EC-B/E5AC

110

96 x 96

(64)

Mounting Adapter

(Accessory, Y92F-51

(also available for

ordering separately))

Waterproof Packing

(Accessory, Y92S-P10

(also available for

ordering separately))

91 x 91

92+0.8

120 min.

(96 × number of units − 3.5)+1.0

Group mounting does not

allow waterproofing.

Mounted Separately

Group Mounted

92+0.8

E5AC

• Recommended panel thickness is 1 to 8 mm.

• Group mounting is not possible in the vertical direction. (Maintain the

specified mounting space between Controllers.)

• To mount the Controller so that it is waterproof, insert the waterproof

packing onto the Controller.

• When two or more Controllers are mounted, make sure that the sur-

rounding temperature does not exceed the allowable operating tem-

perature specified in the specifications.

• Setup Tool ports are provided as standard feature. Use these ports to connect a computer to the

Digital Temperature Controller. The E58-CIFQ2 USB-Serial Conversion Cable is required to

connect to the port on the top panel. The E58-CIFQ2 USB-Serial Conversion Cable and E58-

CIFQ2-E Communications Conversion Cable are required to connect to the port on the front panel.

(You cannot leave either port connected constantly during operation.)
