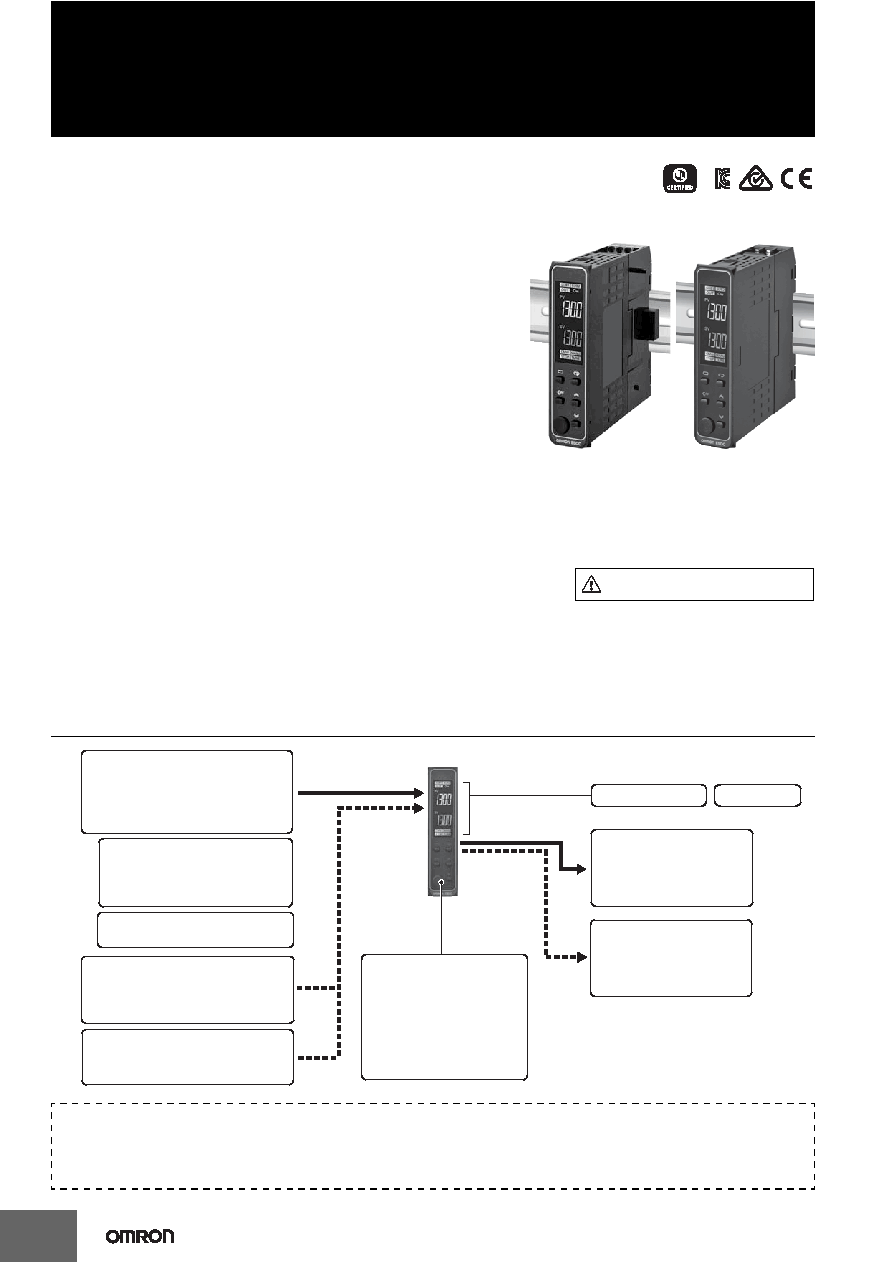

Digital Temperature Controller

E5DC/E5DC-B

(22.5 mm Wide, and DIN Track-mounting Type)

The E5DC Mounts to DIN Track and

Is Ideal for Connections to HMIs and PLCs.

It provides the Same Easy Operation and

Advanced Performance as the Rest of the

@C Series.

Models with Push-In Plus Terminal Blocks

Added to Lineup.

• A slim body at 85

× 22.5 mm (D × W) that fits into narrow control

panels and mounts to DIN Track.

• Removable terminal block for easy replacement to simplify maintenance.

• Select from models with screw terminal blocks and models with

Push-In Plus terminal blocks for reduced wiring work.

• No need for power supply and communication line wiring when

using connectors with Push-In Plus terminal blocks.

(Maximum connectable units: 16)

• High-speed sampling at 50 ms for applications with high-speed

temperature increases.

• Easy connections to a PLC with programless communications.

• Set up the Controller without wiring the power supply by connecting to

the computer with a Communications Conversion Cable (sold separately).

Setup is easy with the CX-Thermo (sold separately).

• Models are available with up to 2 auxiliary outputs and 1 event input to complete basic functions.

• A white PV display (height: 8.5 mm) is easy to read when setting up,

checking alarms, and making settings in a control panel.

Main I/O Functions

Refer to Safety Precautions on page 122.

Refer to your OMRON website for the most recent

information on applicable safety standards.

22.5 mm Wide, and

DIN Track-mounting Type

Models with Screw

Terminal Blocks

E5DC

22.5 mm Wide, and

DIN Track-mounting Type

Models with Push-In Plus

Terminal Blocks

E5DC-B

* CSA conformance

evaluation by UL.

Event Inputs

<E5DC>

<E5DC-B>

• None

• 1

Control Output 1

• Relay output

• Voltage output (for driving SSR)

• Linear current output

Auxiliary Outputs

• None

• 2

Dual displays: PV/SV

4-digit displays

• PF (shift) Key

• Temperature status display

• Simple programming

• Changed parameter display

• Display brightness setting

Serial Communications

• None

• RS-485

E5DC/E5DC-B

• Independent heating and

cooling PID control

Sensor Input

Indication Accuracy

• Thermocouple input: ±0.3% of PV

• Pt input: ±0.2% of PV

• Analog input: ±0.2% of FS

Sampling Period

• 50 ms

Universal input

• Thermocouple

• Pt

• Analog current/voltage

This datasheet is provided as a guideline for selecting products.

Be sure to refer to the following manuals for application precautions and other information required for operation before attempting

to use the product.

@C Digital Temperature Controllers User’s Manual (Cat. No. H174)

@C Digital Temperature Controllers Communications Manual (Cat. No. H175)
