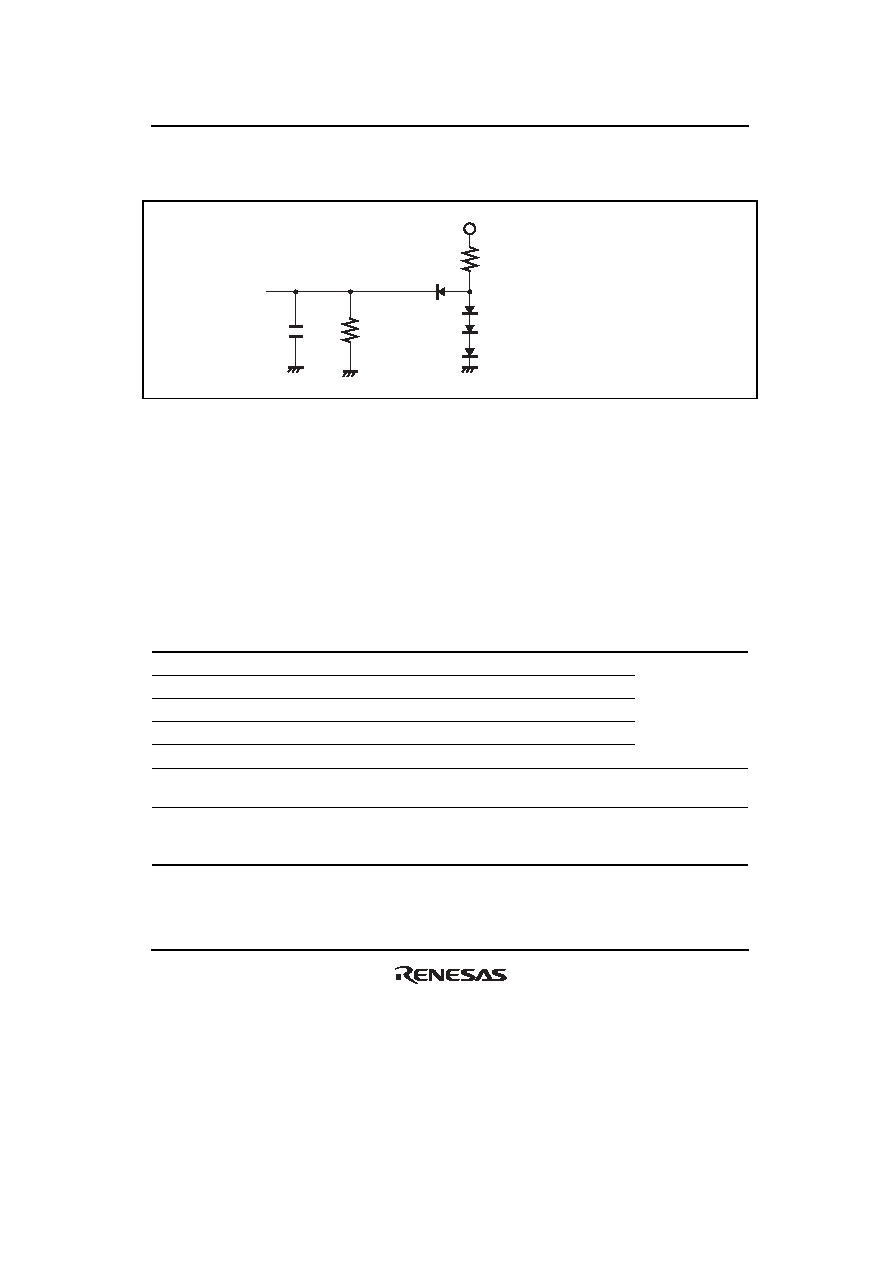

1095 / 1158 page ![]() Section 25 Electrical Characteristics Rev.1.00 Jun. 07, 2006 Page 1043 of 1102 REJ09B0294-0100 25.3 AC Characteristics LSI output pin C RH RL 3 V C = 30 pF RL = 2.4 k Ω RH = 12 k Ω Input/output timing measurement level: 1.5 V (Vcc = 3.0 V to 3.6 V) Figure 25.1 Output Load Circuit 25.3.1 Clock Timing Table 25.4 Clock Timing Conditions: V CC = PLLVCC = DrVCC = 3.0 V to 3.6 V, AVCC = 3.0 V to 3.6 V, Vref = 3.0 V to AVCC, V SS = PLLVSS = DrVSS = AVSS = 0 V, Iφ = 8 MHz to 50 MHz, B φ = 8 MHz to 50 MHz, Pφ = 8 MHz to 35 MHz, T a = –20°C to +75°C (regular specifications), T a = –40°C to +85°C (wide-range specifications) Item Symbol Min. Max. Unit. Test Conditions Clock cycle time t cyc 20 125 ns Figure 25.2 Clock high pulse width t CH 5 ns Clock low pulse width t CL 5 ns Clock rising time t Cr 5 ns Clock falling time t Cf 5 ns Oscillation settling time after reset (crystal) t OSC1 10 ms Figure 25.4 Oscillation settling time after leaving software standby mode (crystal) t OSC2 10 ms Figure 25.3 |
|
