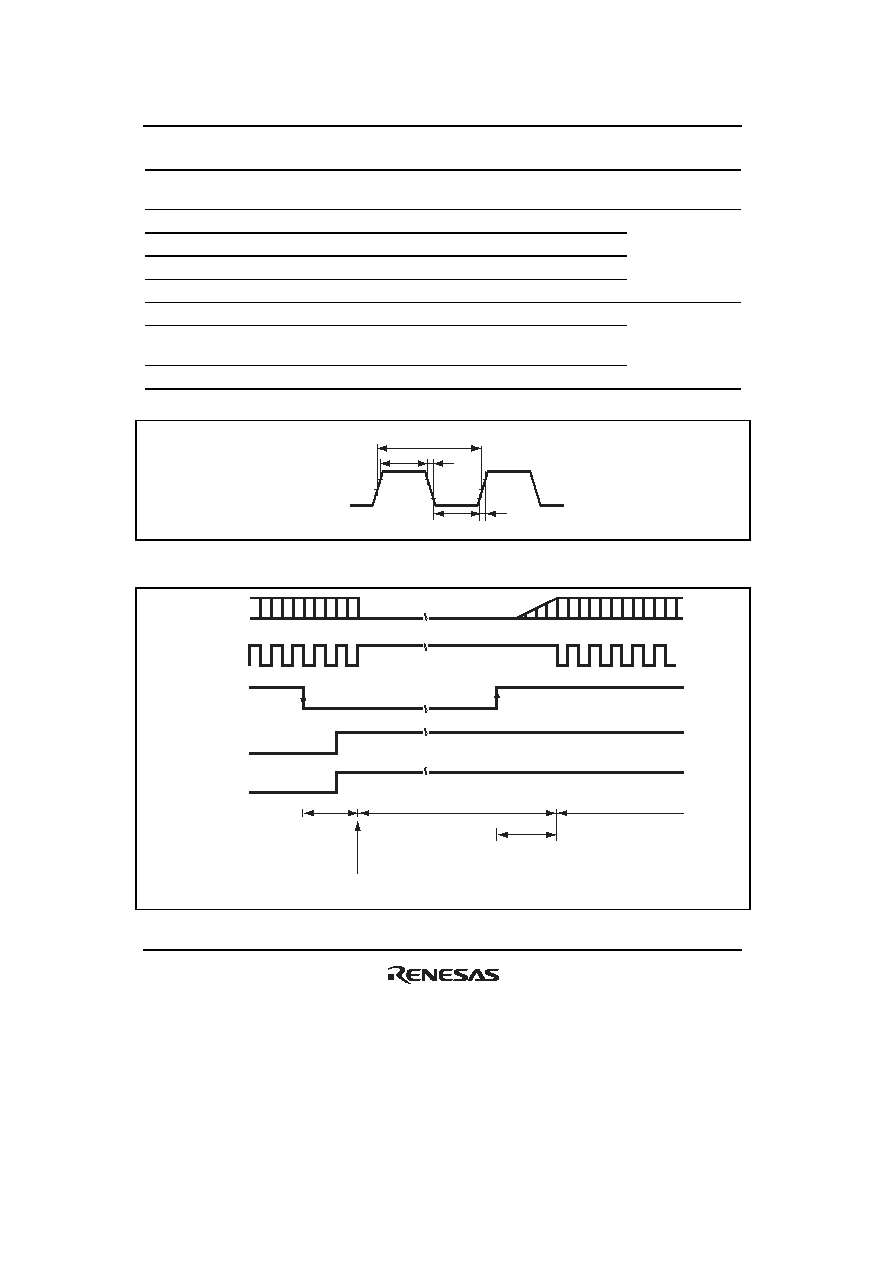

1096 / 1158 page  Section 25 Electrical Characteristics Rev.1.00 Jun. 07, 2006 Page 1044 of 1102 REJ09B0294-0100 Item Symbol Min. Max. Unit. Test Conditions External clock output delay settling time t DEXT 1 ms Figure 25.4 External clock input low pulse width t EXL 27.7 ns Figure 25.5 External clock input high pulse width t EXH 27.7 ns External clock rising time t EXr 5 ns External clock falling time t EXf 5 ns Subclock oscillation settling time t OSC3 2 s Subclock oscillator oscillation frequency f SUB 32.768 32.768 kHz Subclock cycle time t SUB 30.5 30.5 µs tcyc B φ tCH tCf tCL tCr Figure 25.2 External Bus Clock Timing Oscillator Software standby mode (power-down mode) Oscillation settling time tOSC2 I φ NMI NMI exception handling NMIEG = 1 SSBY = 1 NMI exception handling SLEEP instruction NMIEG SSBY Figure 25.3 Oscillation Settling Timing after Software Standby Mode |
|
