H8SX/1663 Datasheet(PDF) 1098 Page - Renesas Technology Corp |
|
|
|||||||||||||||||||||||||||||
H8SX/1663 Datasheet(HTML) 1098 Page - Renesas Technology Corp |
|
|

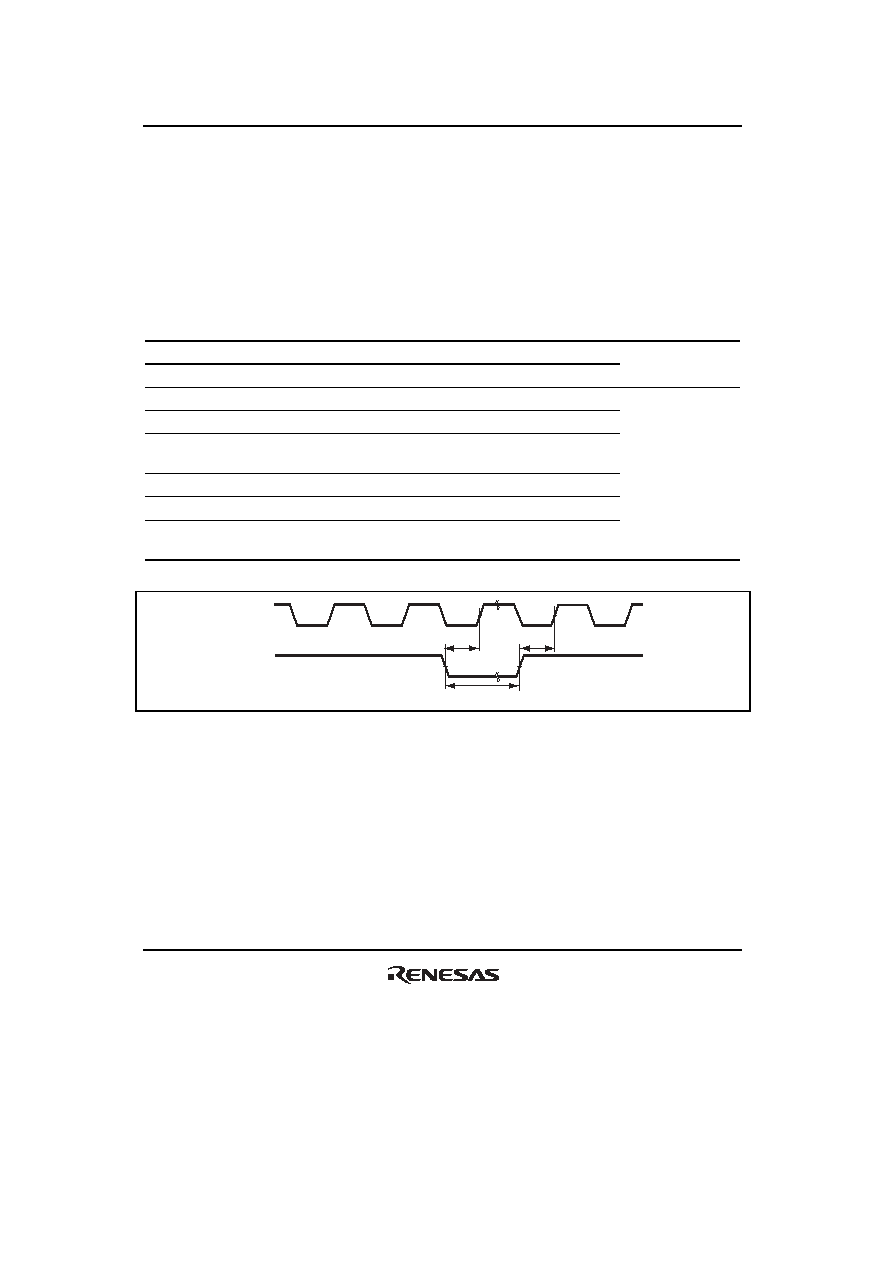

1098 / 1158 page  Section 25 Electrical Characteristics Rev.1.00 Jun. 07, 2006 Page 1046 of 1102 REJ09B0294-0100 25.3.2 Control Signal Timing Table 25.5 Control Signal Timing Conditions: V CC = PLLVCC = DrVCC = 3.0 V to 3.6 V, AVCC = 3.0 V to 3.6 V, Vref = 3.0 V to AVCC, V SS = PLLVSS = DrVSS = AVSS = 0 V, Iφ = 8 MHz to 50 MHz, T a = –20°C to +75°C (regular specifications), T a = –40°C to +85°C (wide-range specifications) Item Symbol Min. Max. Unit Test Conditions RES setup time t RESS 200 ns Figure 25.6 RES pulse width t RESW 20 t cyc NMI setup time t NMIS 150 ns Figure 25.7 NMI hold time t NMIH 10 ns NMI pulse width (after leaving software standby mode) t NMIW 200 ns IRQ setup time t IRQS 150 ns IRQ hold time t IRQH 10 ns IRQ pulse width (after leaving software standby mode) t IRQW 200 ns I φ RES t RESS t RESS t RESW Figure 25.6 Reset Input Timing |
|
