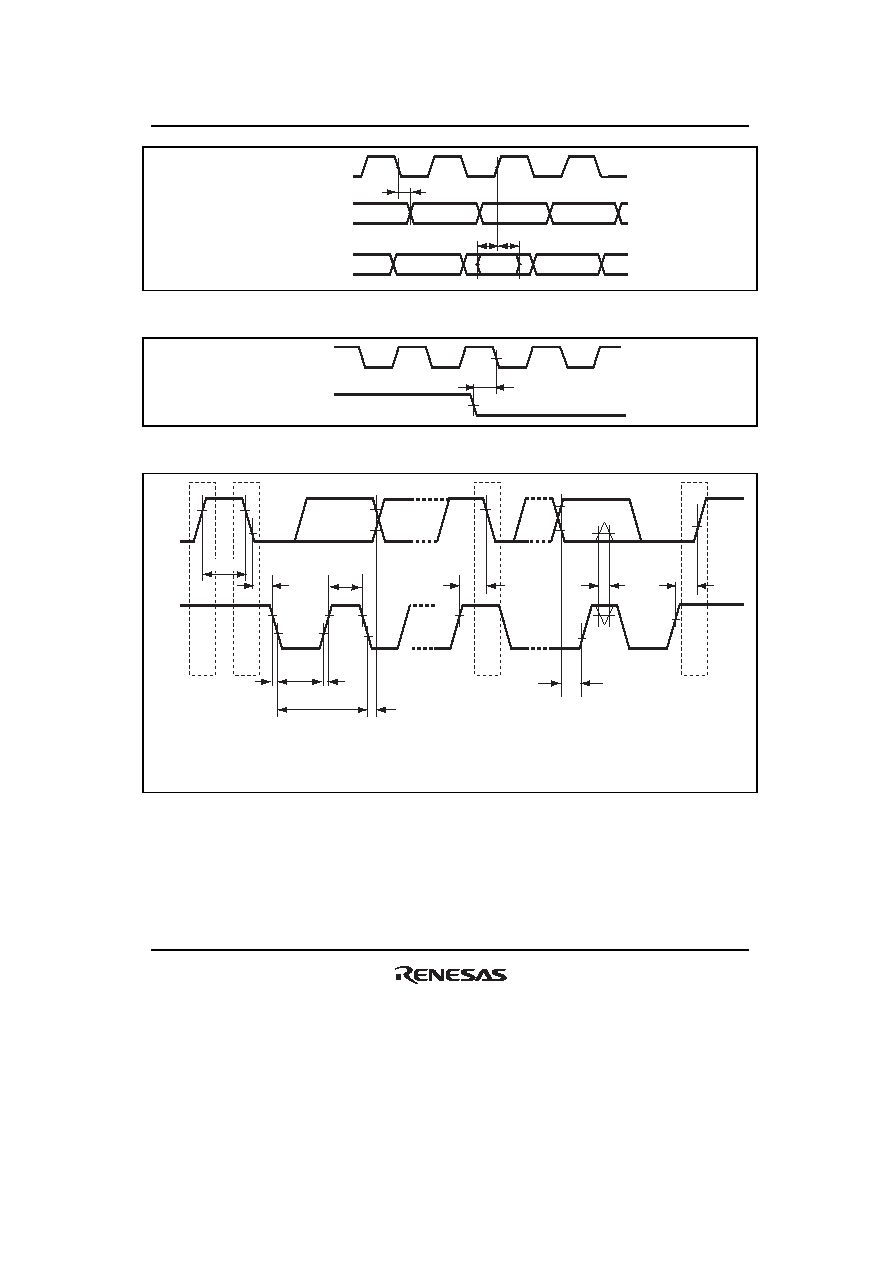

Section 25 Electrical Characteristics
Rev.1.00 Jun. 07, 2006 Page 1081 of 1102
REJ09B0294-0100
SCK0 to SCK2,
SCK4
tTXD
tRXS tRXH
TxD0 to TxD2,
TxD4
(transmit data)
RxD0 to RxD2,
RxD4
(receive data)
Figure 25.48 SCI Input/Output Timing: Clocked Synchronous Mode
P
φ
ADTRG0
tTRGS
Figure 25.49 A/D Converter External Trigger Input Timing
tBUF
tSTAH
tSTAS
tSP
tSTOS
tSCLH
tSCLL
tSf
tSr
tSCL
tSDAH
tSDAS
P*
P*
S*
Sr*
VIH
VIL
SDA0
to
SDA1
SCL0
to
SCL1
Note:
S, P, and Sr represent the following conditions:
S: Start condition
P: Stop condition
Sr: Retransmit start condition
Figure 25.50 I
2C Bus Interface2 Input/Output Timing (Option)
