H8SX/1663M Datasheet(PDF) 1100 Page - Renesas Technology Corp |
|
|
|||||||||||||||||||||||||||||
H8SX/1663M Datasheet(HTML) 1100 Page - Renesas Technology Corp |
|
|

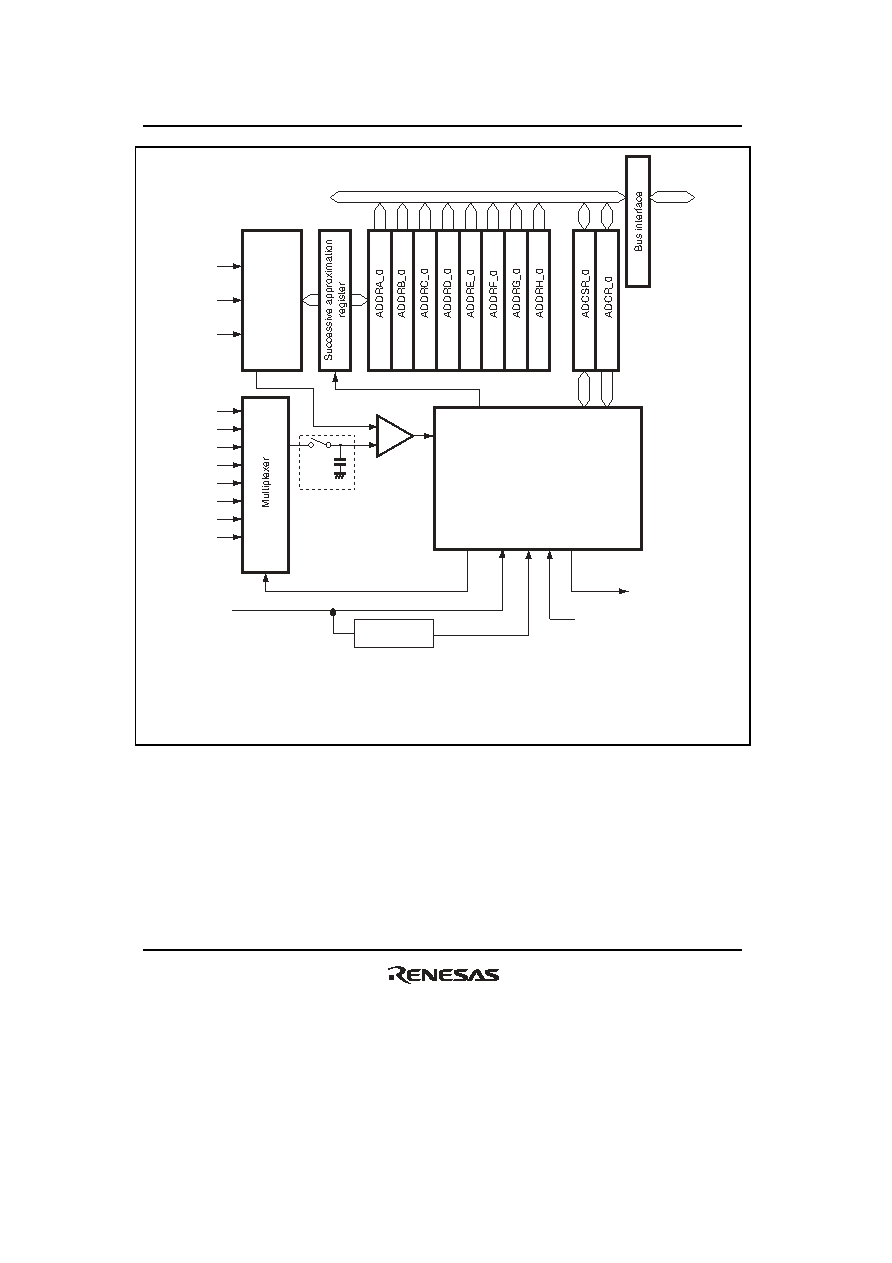

1100 / 1504 page  Section 22 A/D Converter Rev. 2.00 Sep. 24, 2008 Page 1068 of 1468 REJ09B0412-0200 Module data bus Control circuit Internal data bus 10-bit A/D Comparator + – Sample-and- hold circuit ADI0 interrupt signal AVCC Vref AVSS AN0 AN1 AN2 AN3 AN4 AN5 AN6 AN7 ADTRG0 Conversion start trigger from the TPU or TMR (units 0, 1) [Legend] ADCR_0: A/D control register_0 ADCSR_0: A/D control/status register_0 ADDRA_0: A/D data register A_0 ADDRB_0: A/D data register B_0 ADDRC_0: A/D data register C_0 ADDRD_0: A/D data register D_0 ADDRE_0: A/D data register E_0 ADDRF_0: A/D data register F_0 ADDRG_0: A/D data register G_0 ADDRH_0: A/D data register H_0 Synchronization circuit Figure 22.1 Block Diagram of A/D Converter Unit 0 (AD_0) |
|
