H8SX/1663M Datasheet(PDF) 1101 Page - Renesas Technology Corp |
|
|
|||||||||||||||||||||||||||||
H8SX/1663M Datasheet(HTML) 1101 Page - Renesas Technology Corp |
|
|

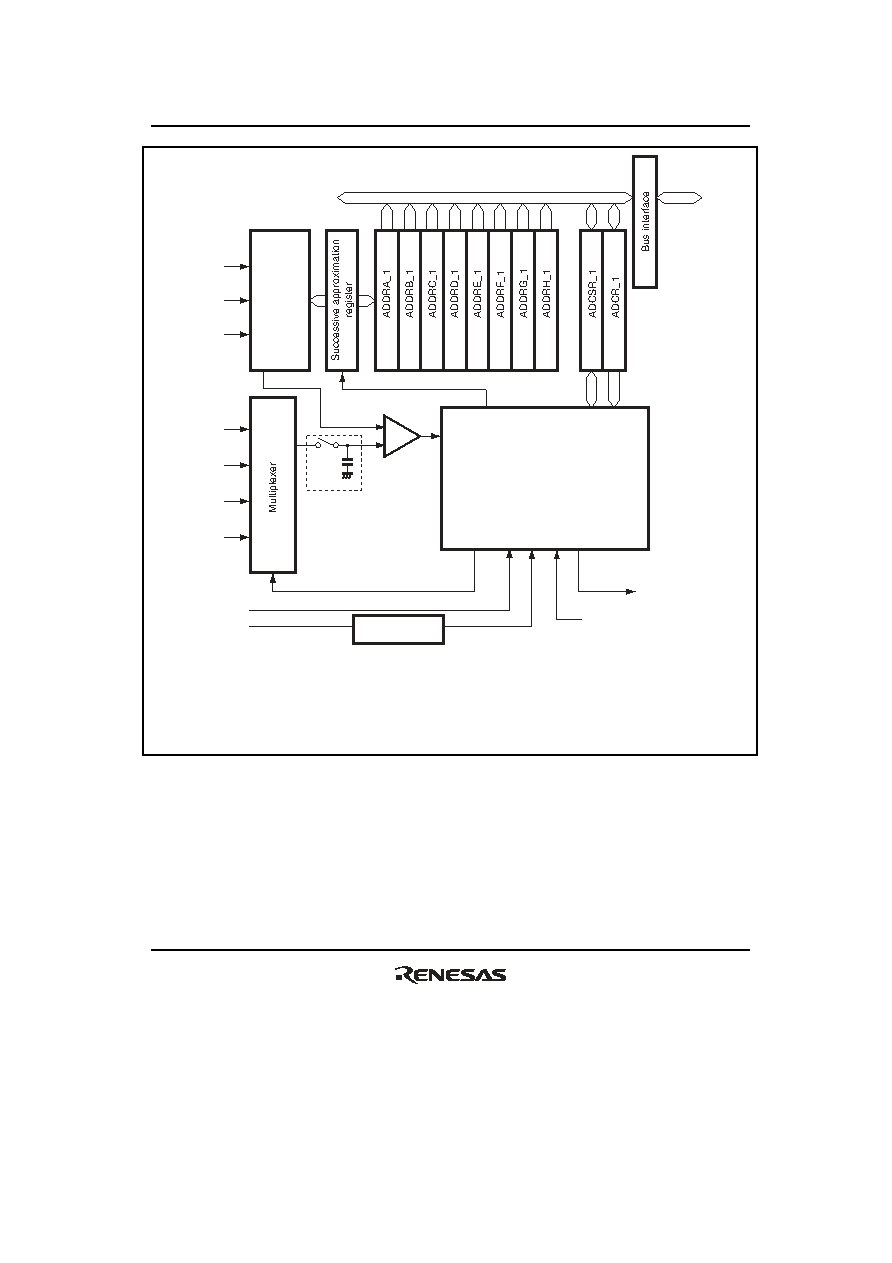

1101 / 1504 page  Section 22 A/D Converter Rev. 2.00 Sep. 24, 2008 Page 1069 of 1468 REJ09B0412-0200 Module data bus Control circuit Internal data bus 10-bit A/D Comparator + – Sample-and- hold circuit ADI1 interrupt signal AVCC Vref AVSS AN4 AN5 AN6 AN7 ADTRG1 Conversion start trigger from the TMR (units 2, 3) [Legend] ADCR_1: A/D control register_1 ADCSR_1: A/D control/status register_1 ADDRA_1: A/D data register A_1 ADDRB_1: A/D data register B_1 ADDRC_1: A/D data register C_1 ADDRD_1: A/D data register D_1 ADDRE_1: A/D data register E_1 ADDRF_1: A/D data register F_1 ADDRG_1: A/D data register G_1 ADDRH_1: A/D data register H_1 ADTRG0 Synchronization circuit Figure 22.2 Block Diagram of A/D Converter Unit 1 (AD_1) |
|
