ADBMS1818ASWZ-R7 Datasheet(PDF) 13 Page - Analog Devices

Part # ADBMS1818ASWZ-R7
Description  18-Cell Battery Monitor with Daisy Chain Interface
PDF  89 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  AD [Analog Devices]
Direct Link  http://www.analog.com
Logo AD - Analog Devices

ADBMS1818ASWZ-R7 Datasheet(HTML) 13 Page - Analog Devices

Back Button ADBMS1818ASWZ-R7 Datasheet HTML 9Page - Analog Devices ADBMS1818ASWZ-R7 Datasheet HTML 10Page - Analog Devices ADBMS1818ASWZ-R7 Datasheet HTML 11Page - Analog Devices ADBMS1818ASWZ-R7 Datasheet HTML 12Page - Analog Devices ADBMS1818ASWZ-R7 Datasheet HTML 13Page - Analog Devices ADBMS1818ASWZ-R7 Datasheet HTML 14Page - Analog Devices ADBMS1818ASWZ-R7 Datasheet HTML 15Page - Analog Devices ADBMS1818ASWZ-R7 Datasheet HTML 16Page - Analog Devices ADBMS1818ASWZ-R7 Datasheet HTML 17Page - Analog Devices Next Button
Zoom Inzoom in Zoom Outzoom out
 13 / 89 page
background image
Data Sheet
ADBMS1818
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. 0 | 13 of 89
TA = 25°C, unless otherwise noted.

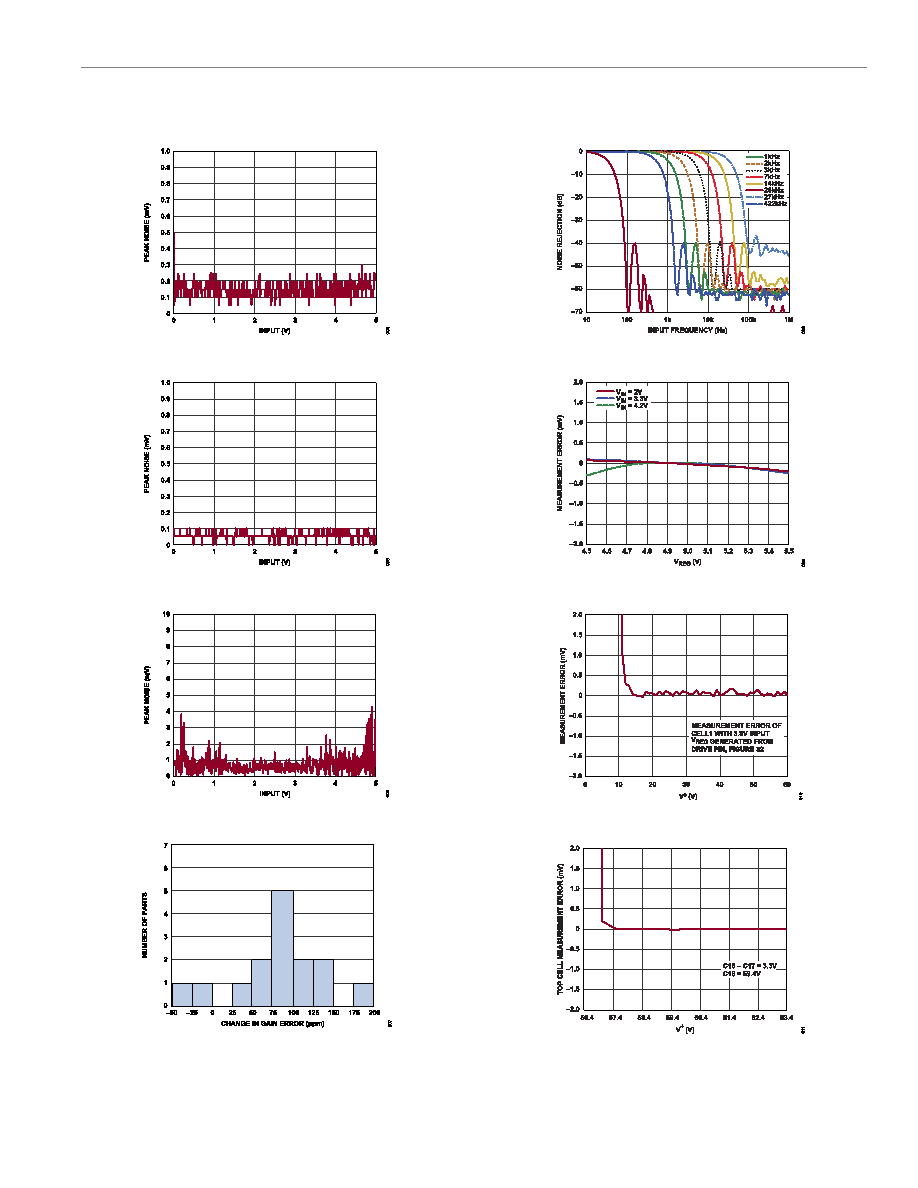

Figure 4. Measurement Noise vs. Input, Normal Mode
Figure 5. Measurement Noise vs. Input, Filtered Mode
Figure 6. Measurement Noise vs. Input, Fast Mode
Figure 7. Measurement Error Due to IR Reflow
Figure 8. Noise Filter Response
Figure 9. Measurement Error vs. VREG
Figure 10. Measurement Error vs. V+
Figure 11. Top Cell Measurement Error vs. V+
