Data Sheet
ADBMS1818
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. 0 | 18 of 89

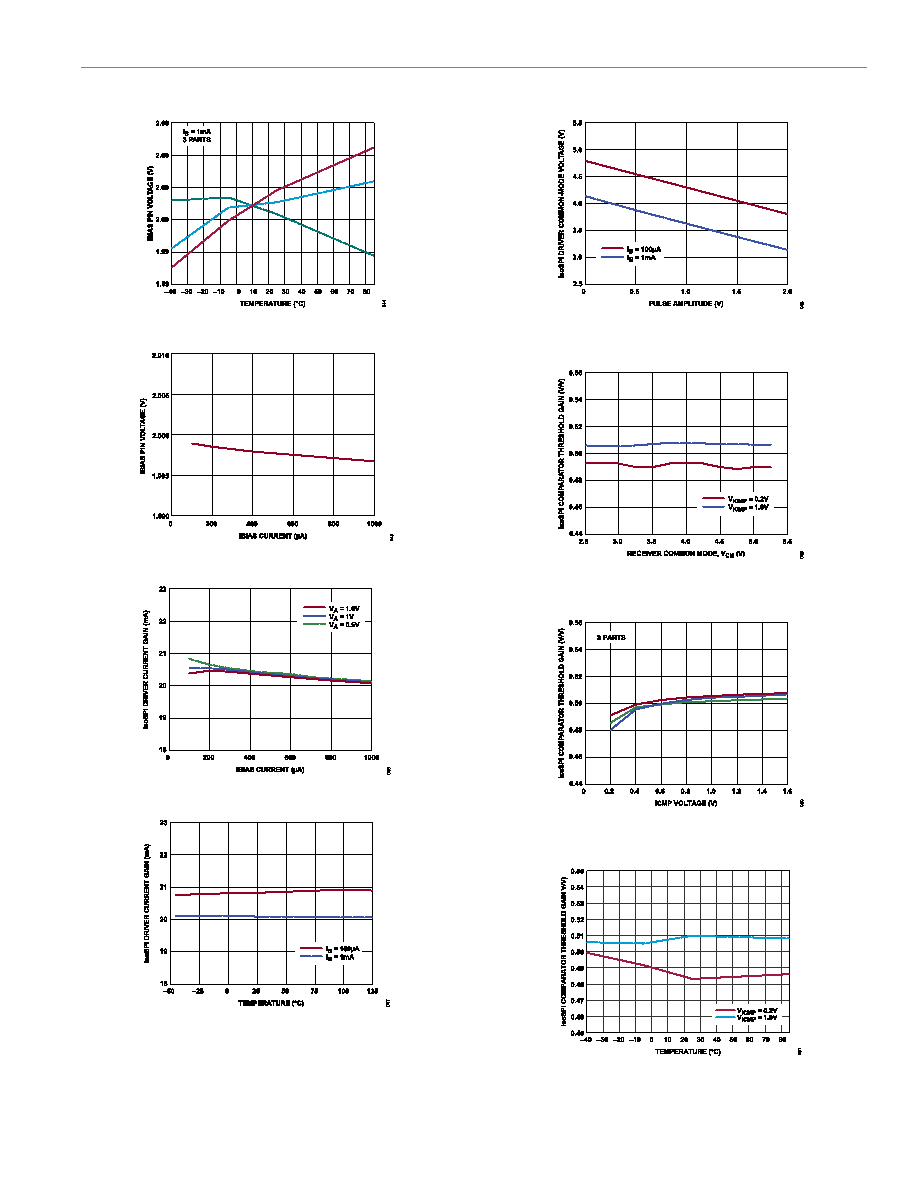

Figure 44. IBIAS Pin Voltage vs. Temperature
Figure 45. IBIAS Pin Voltage Load Regulation
Figure 46. isoSPI Driver Current Gain (Port A and Port B) vs. IBIAS Current
Figure 47. isoSPI Driver Current Gain (Port A and Port B) vs. Temperature
Figure 48. isoSPI Driver Common-Mode Voltage (Port A and Port B) vs. Pulse
Amplitude
Figure 49. isoSPI Comparator Threshold Gain (Port A and Port B) vs.
Receiver Common Mode
Figure 50. isoSPI Comparator Threshold Gain (Port A and Port B) vs. ICMP
Voltage
Figure 51. isoSPI Comparator Threshold Gain (Port A and Port B) vs.
Temperature
