ADBMS1818ASWZ-R7 Datasheet(PDF) 16 Page - Analog Devices

Part # ADBMS1818ASWZ-R7
Description  18-Cell Battery Monitor with Daisy Chain Interface
PDF  89 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  AD [Analog Devices]
Direct Link  http://www.analog.com
Logo AD - Analog Devices

ADBMS1818ASWZ-R7 Datasheet(HTML) 16 Page - Analog Devices

Back Button ADBMS1818ASWZ-R7 Datasheet HTML 12Page - Analog Devices ADBMS1818ASWZ-R7 Datasheet HTML 13Page - Analog Devices ADBMS1818ASWZ-R7 Datasheet HTML 14Page - Analog Devices ADBMS1818ASWZ-R7 Datasheet HTML 15Page - Analog Devices ADBMS1818ASWZ-R7 Datasheet HTML 16Page - Analog Devices ADBMS1818ASWZ-R7 Datasheet HTML 17Page - Analog Devices ADBMS1818ASWZ-R7 Datasheet HTML 18Page - Analog Devices ADBMS1818ASWZ-R7 Datasheet HTML 19Page - Analog Devices ADBMS1818ASWZ-R7 Datasheet HTML 20Page - Analog Devices Next Button
Zoom Inzoom in Zoom Outzoom out
 16 / 89 page
background image
Data Sheet
ADBMS1818
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. 0 | 16 of 89

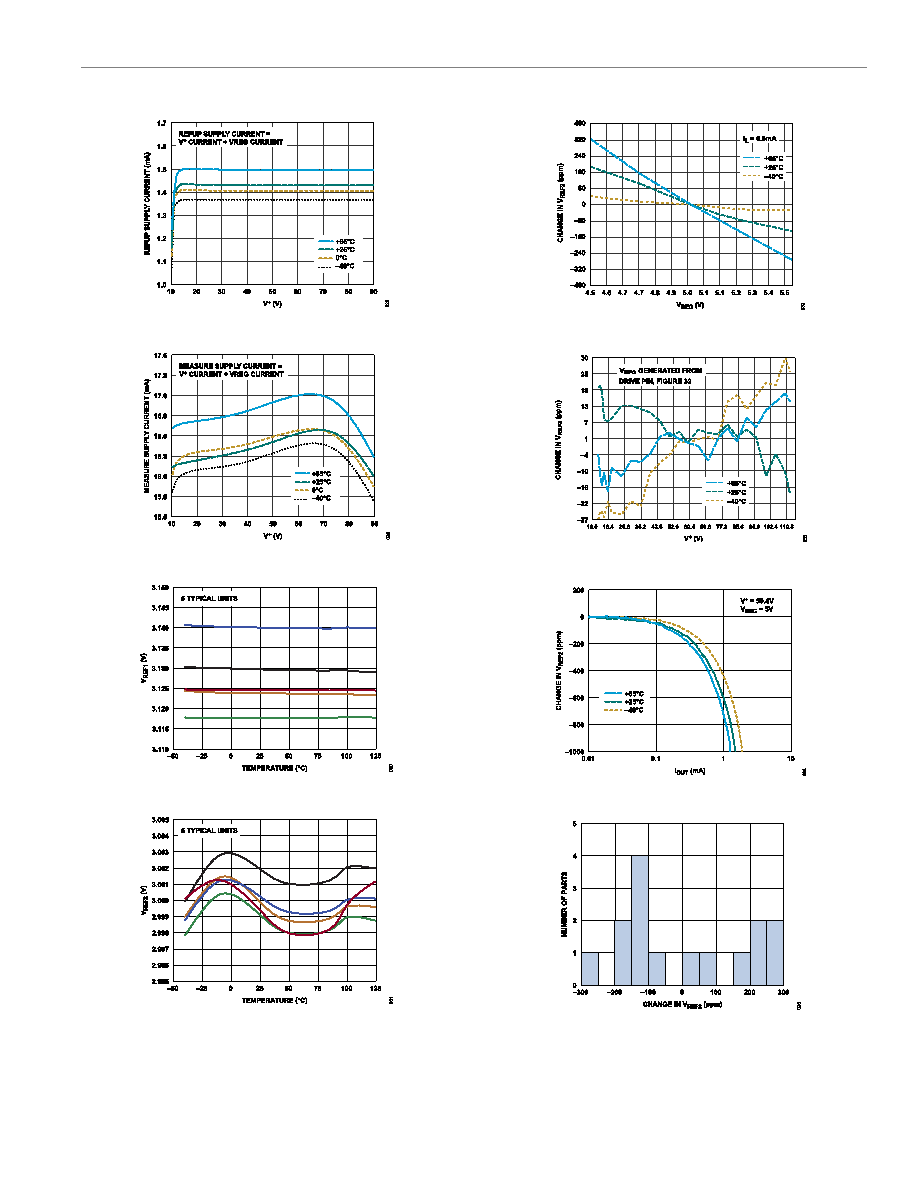

Figure 28. REFUP Supply Current vs. V+
Figure 29. Measure Supply Current vs. V+
Figure 30. VREF1 vs. Temperature
Figure 31. VREF2 vs. Temperature
Figure 32. VREF2 and VREG Line Regulation
Figure 33. VREF2 and V+ Line Regulation
Figure 34. VREF2 Load Regulation (IOUT is Output Current)
Figure 35. VREF2 Change Due to IR Reflow
