89 / 181 page

4173D–USB–02/06

AT89C5132

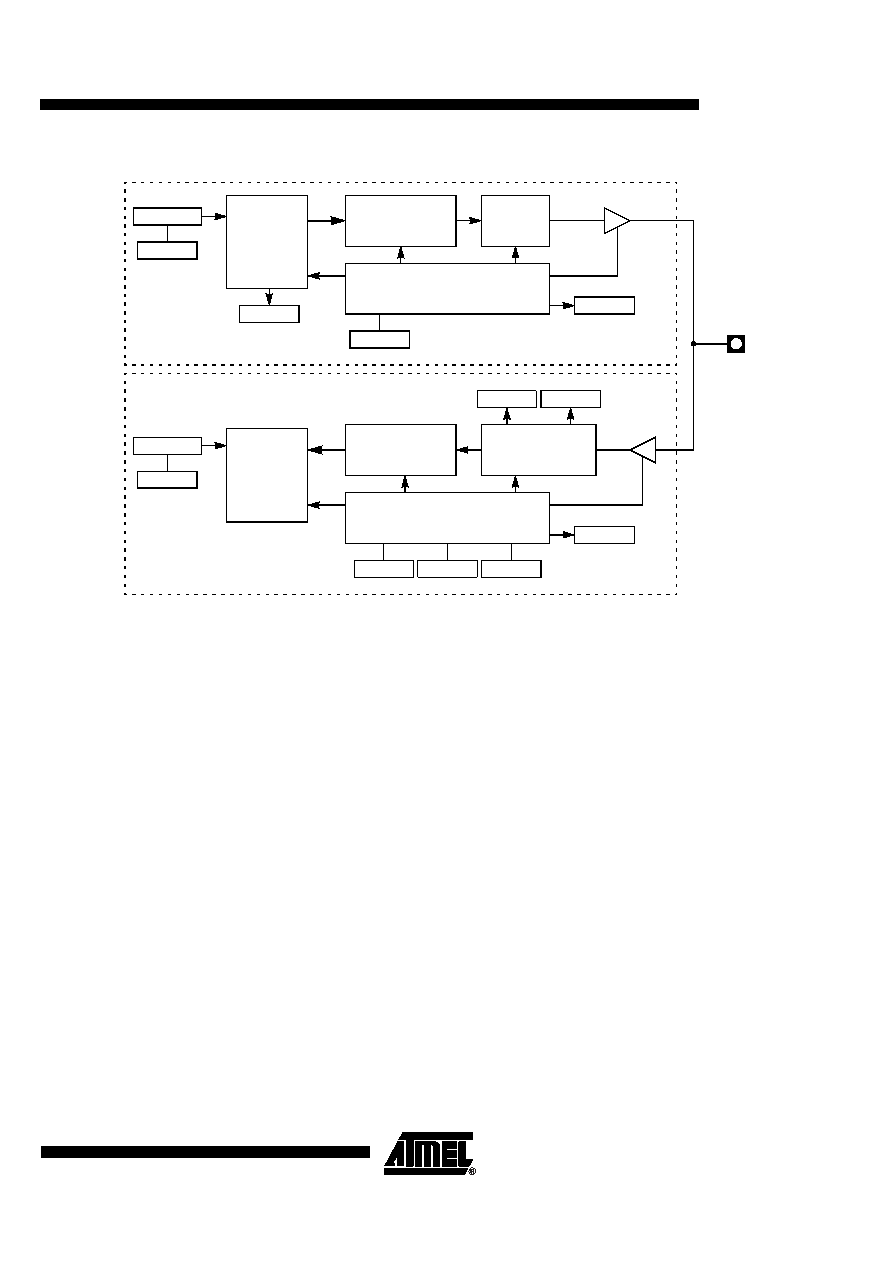

Figure 16-12. Command Line Controller Block Diagram

16.5.1

Command Transmitter

To send a command to the card, the user must load the command index (1 byte) and argument

(4 Bytes) in the command transmit FIFO using the MMCMD register. Before starting transmis-

sion by setting and clearing the CMDEN bit in MMCON1 register, the user must first configure:

•

RESPEN bit in MMCON1 register to indicate whether a response is expected or not.

•

RFMT bit in MMCON0 register to indicate the response size expected.

•

CRCDIS bit in MMCON0 register to indicate whether the CRC7 included in the response will

be computed or not. In order to avoid CRC error, CRCDIS may be set for responses that do

not include CRC7.

Figure 16-13 summarizes the command transmission flow.

As soon as command transmission is enabled, the CFLCK flag in MMSTA is set indicating that

write to the FIFO is locked. This mechanism is implemented to avoid command over-run.

The end of the command transmission is signalled by the EOCI flag in MMINT register becoming

set. This flag may generate an MMC interrupt request as detailed in Section "Interrupt", page 96.

The end of the command transmission also resets the CFLCK flag.

The user may abort command loading by setting and clearing the CTPTR bit in MMCON0 regis-

ter which resets the write pointer to the transmit FIFO.

CTPTR

MMCON0.4

CRPTR

MMCON0.5

MCMD

CMDEN

MMCON1.0

TX COMMAND Line

Finished State Machine

Data Converter

// -> Serial

5-byte FIFO

MMCMD

TX Pointer

RFMT

MMCON0.1

CRCDIS

MMCON0.0

RESPEN

MMCON1.1

Data Converter

Serial -> //

RX Pointer

17-byte FIFO

MMCMD

CFLCK

MMSTA.0

CRC7

Generator

RX COMMAND Line

Finished State Machine

CRC7 and Format

Checker

CRC7S

MMSTA.2

RESPFS

MMSTA.1

EOCI

MMINT.5

EORI

MMINT.6

Command Transmitter

Command Receiver

Write

Read
