AT89C5132-ROTIL Datasheet(PDF) 169 Page - ATMEL Corporation |
|
|
|||||||||||||||||||||||||||||
AT89C5132-ROTIL Datasheet(HTML) 169 Page - ATMEL Corporation |
|
|

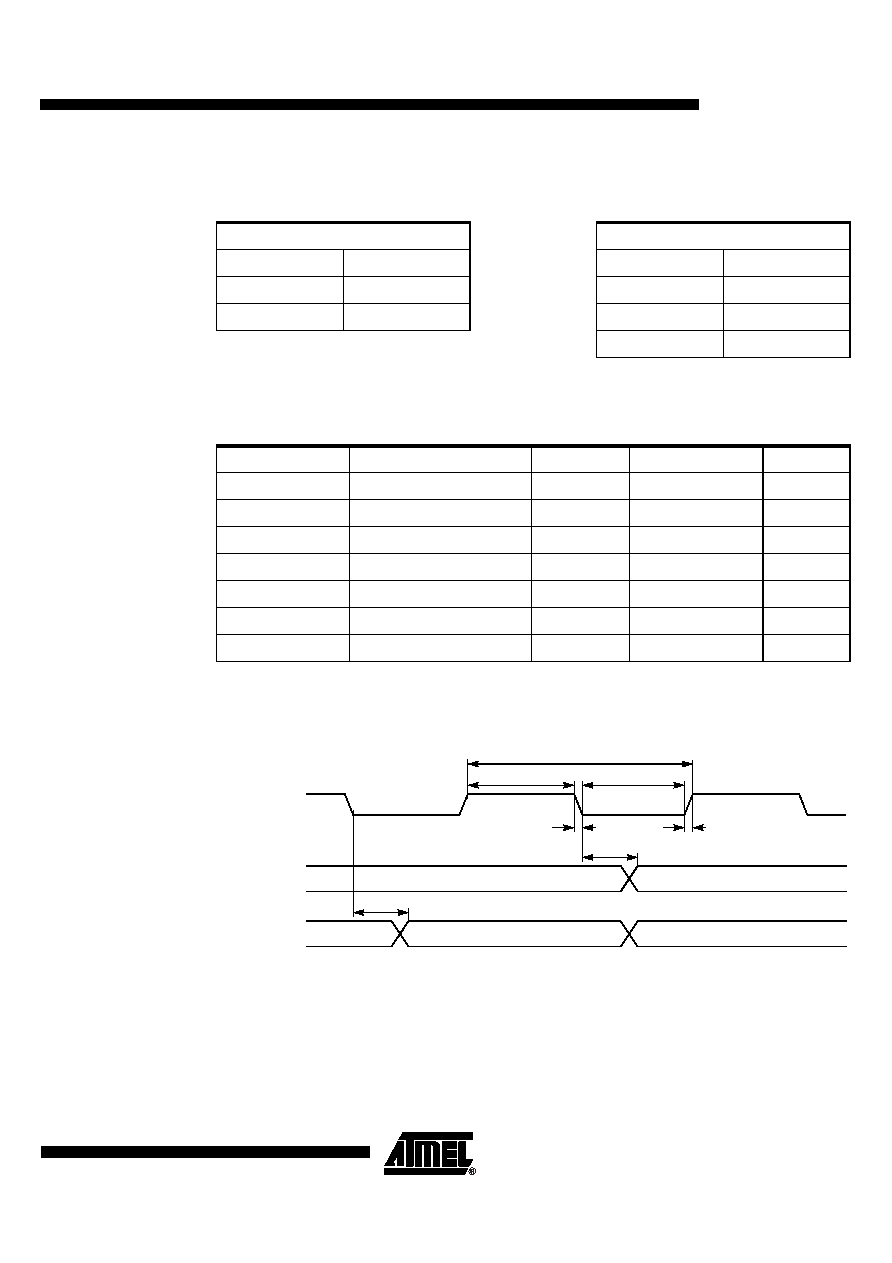

169 / 181 page  169 4173D–USB–02/06 AT89C5132 24.2.6 Audio Interface 24.2.6.1 Definition of Symbols Table 118. Audio Interface Timing Symbol Definitions 24.2.6.2 Timings Table 119. Audio Interface AC timings V DD = 2.7 to 3.3V, TA = -40 to +85°C, CL ≤ 30pF Note: 32-bit format with Fs = 48 kHz. 24.2.6.3 Waveforms Figure 24-18. Audio Interface Waveforms Signals Conditions CClock HHigh O Data Out L Low S Data Select V Valid X No Longer Valid Symbol Parameter Min Max Unit T CHCH Clock Period 325.5 (1) ns T CHCX Clock High Time 30 ns T CLCX Clock Low Time 30 ns T CLCH Clock Rise Time 10 ns T CHCL Clock Fall Time 10 ns T CLSV Clock Low to Select Valid 10 ns T CLOV Clock Low to Data Valid 10 ns DCLK T CHCH T CLCX T CHCX T CLCH T CHCL DSEL DDAT Right Left T CLSV T CLOV |
|
