AT89C5132-ROTIL Datasheet(PDF) 84 Page - ATMEL Corporation

Part # AT89C5132-ROTIL
Description  USB Microcontroller with 64K Bytes Flash Memory
PDF  182 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  ATMEL [ATMEL Corporation]
Direct Link  http://www.atmel.com
Logo ATMEL - ATMEL Corporation

AT89C5132-ROTIL Datasheet(HTML) 84 Page - ATMEL Corporation

Back Button AT89C5132-ROTIL Datasheet HTML 80Page - ATMEL Corporation AT89C5132-ROTIL Datasheet HTML 81Page - ATMEL Corporation AT89C5132-ROTIL Datasheet HTML 82Page - ATMEL Corporation AT89C5132-ROTIL Datasheet HTML 83Page - ATMEL Corporation AT89C5132-ROTIL Datasheet HTML 84Page - ATMEL Corporation AT89C5132-ROTIL Datasheet HTML 85Page - ATMEL Corporation AT89C5132-ROTIL Datasheet HTML 86Page - ATMEL Corporation AT89C5132-ROTIL Datasheet HTML 87Page - ATMEL Corporation AT89C5132-ROTIL Datasheet HTML 88Page - ATMEL Corporation Next Button
Zoom Inzoom in Zoom Outzoom out
 84 / 182 page
background image
84
4173E–USB–09/07
AT89C5132

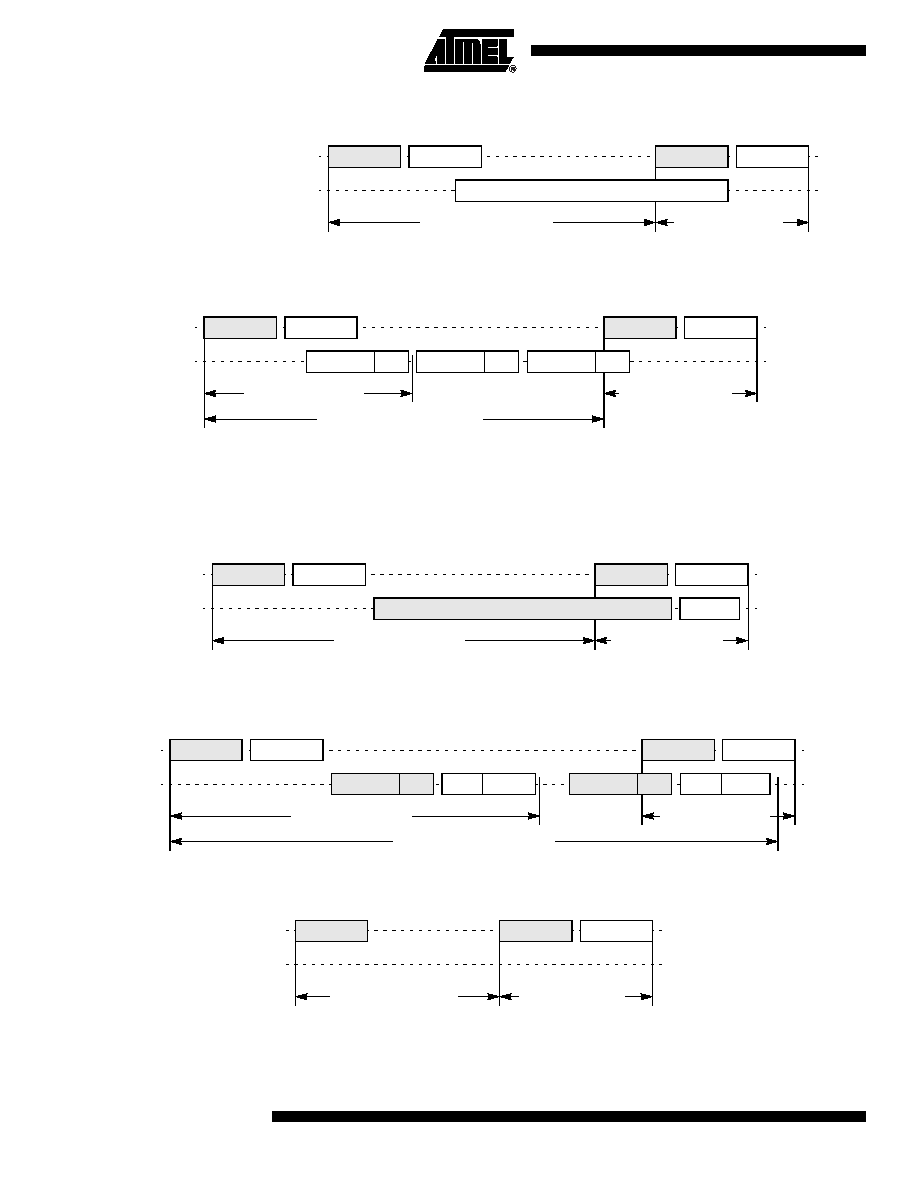

Figure 16-1. Sequential Read Operation
Figure 16-2. (Multiple) Block Read Operation
As shown in Figure 16-3 and Figure 16-4 the data write operation uses a simple busy signalling
of the write operation duration on the data line (MDAT).
Figure 16-3. Sequential Write Operation
Figure 16-4. (Multiple) Block Write Operation
Figure 16-5. No Response and No Data Operation
Data Stream
Command
Response
MCMD
MDAT
Data Stop Operation
Data Transfer Operation
Command
Response
Stop Command
Data Block
MCMD
MDAT
Data Stop Operation
Block Read Operation
CRC
Multiple Block Read Operation
Command
Response
Command
Response
Data Block CRC Data Block CRC
Stop Command
Data Stream
MCMD
MDAT
Data Stop Operation
Data Transfer Operation
Command
Response
Command
Response
Stop Command
Busy
MCMD
MDAT
Data Stop Operation
Block Write Operation
Multiple Block Write Operation
Busy
Data Block CRC
Data Block CRC
Command
Response
Command
Response
Stop Command
Status
Busy
Status
Command
MCMD
MDAT
No Data Operation
No Response Operation
Command
Response
