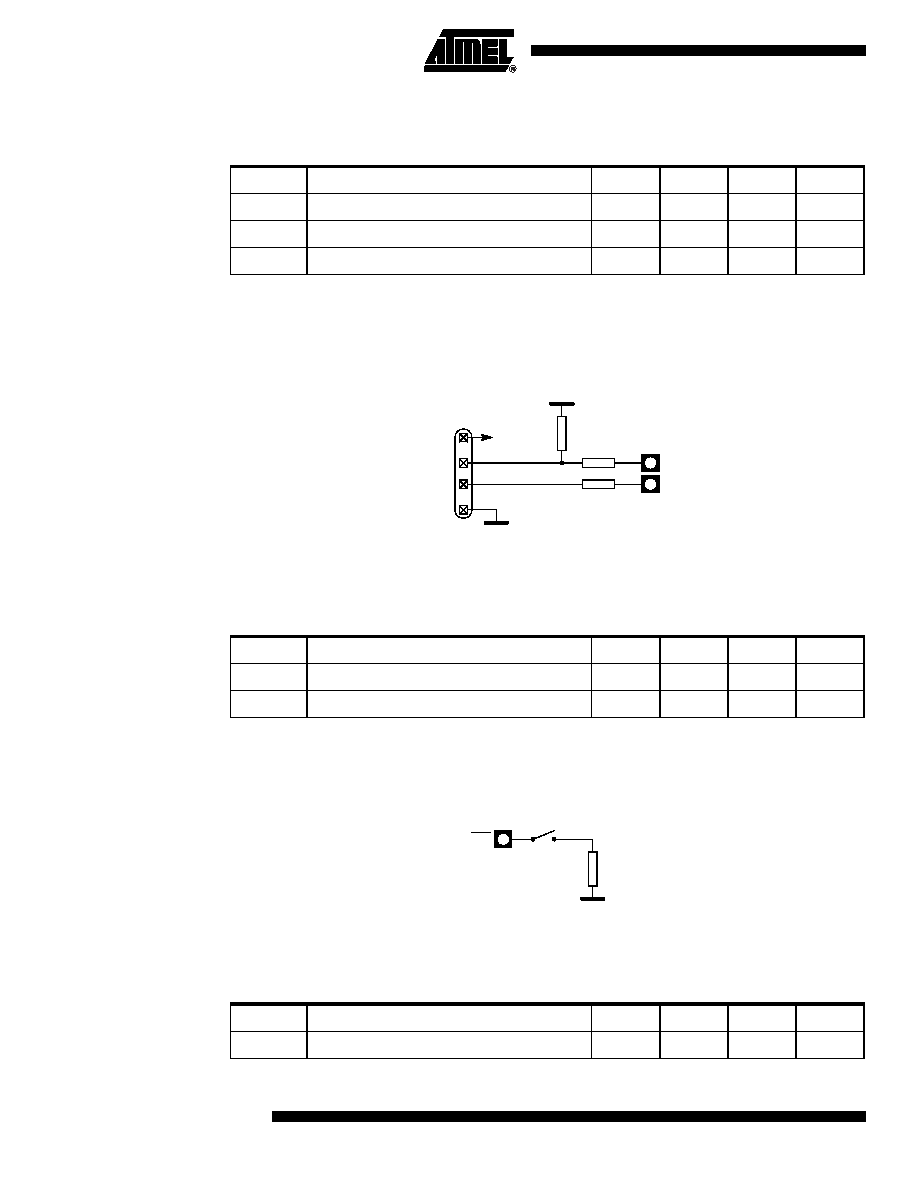

158 / 182 page  158 4173E–USB–09/07 AT89C5132 23.2.5.2 Parameters Table 106. PLL Filter Characteristics VDD = 2.7 to 3.3V , TA = -40 to +85°C 23.2.6 USB Connection 23.2.6.1 Schematic Figure 23-6. USB Connection 23.2.6.2 Parameters Table 35. USB Characteristics VDD = 3 to 3.3 V, TA = -40 to +85°C 23.2.7 In-system Programming 23.2.7.1 Schematic Figure 23-7. ISP Pull-down Connection 23.2.7.2 Parameters Table 107. ISP Pull-Down Characteristics VDD = 3 to 3.3V , TA = -40 to +85°C Symbol Parameter Min Typ Max Unit R Filter Resistor 100 Ω C1 Filter Capacitance 1 10 nF C2 Filter Capacitance 2 2.2 nF D+ D- VBUS GND D+ D- VSS To Power R USB R USB VDD Supply R FS Symbol Parameter Min Typ Max Unit RUSB USB Termination Resistor 27 Ω RFS USB Full Speed Resistor 1.5 KΩ VSS ISP RISP Symbol Parameter Min Typ Max Unit R ISP ISP Pull-Down Resistor 2.2 kΩ |
|
