Section 23 Power-Down Modes

Rev.1.00 Jun. 07, 2006 Page 986 of 1102

REJ09B0294-0100

23.7.4

Software Standby Mode Application Example

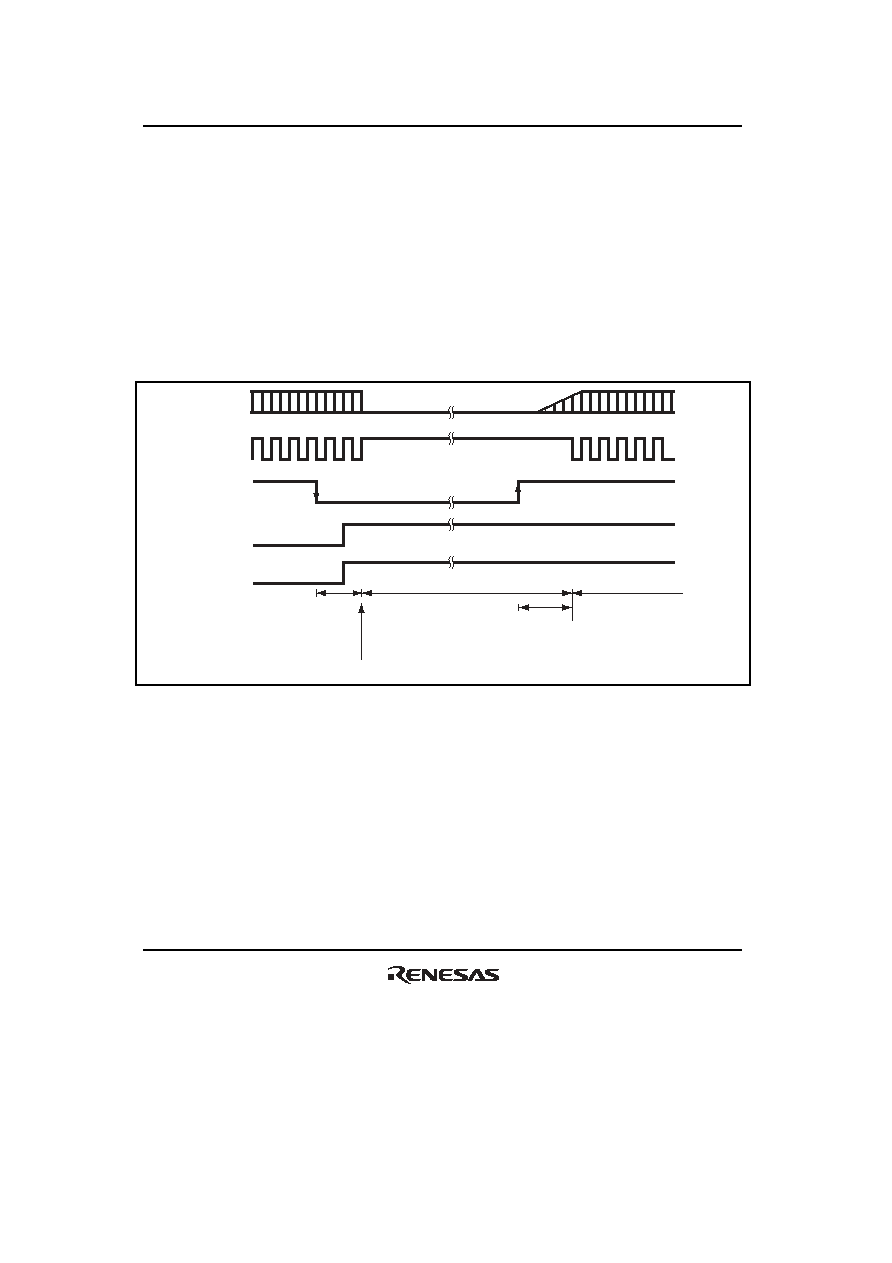

Figure 23.2 shows an example in which a transition is made to software standby mode at the

falling edge on the NMI pin, and software standby mode is cleared at the rising edge on the NMI

pin.

In this example, an NMI interrupt is accepted with the NMIEG bit in INTCR cleared to 0 (falling

edge specification), then the NMIEG bit is set to 1 (rising edge specification), the SSBY bit is set

to 1, and a SLEEP instruction is executed, causing a transition to software standby mode.

Software standby mode is then cleared at the rising edge on the NMI pin.

Oscillator

NMI

NMIEG

SSBY

NMI exception

handling

NMIEG = 1

SSBY = 1

SLEEP instruction

Software standby mode

(power-down mode)

Oscillation

settling time

tOSC2

NMI exception

handling

Figure 23.2 Software Standby Mode Application Example
