Document Feedback
CSG14K_CSG8K
Functional Description
Datasheet
• PUBLIC
DS000571
• v2-01 • 2023-Feb-10
113
│ 83

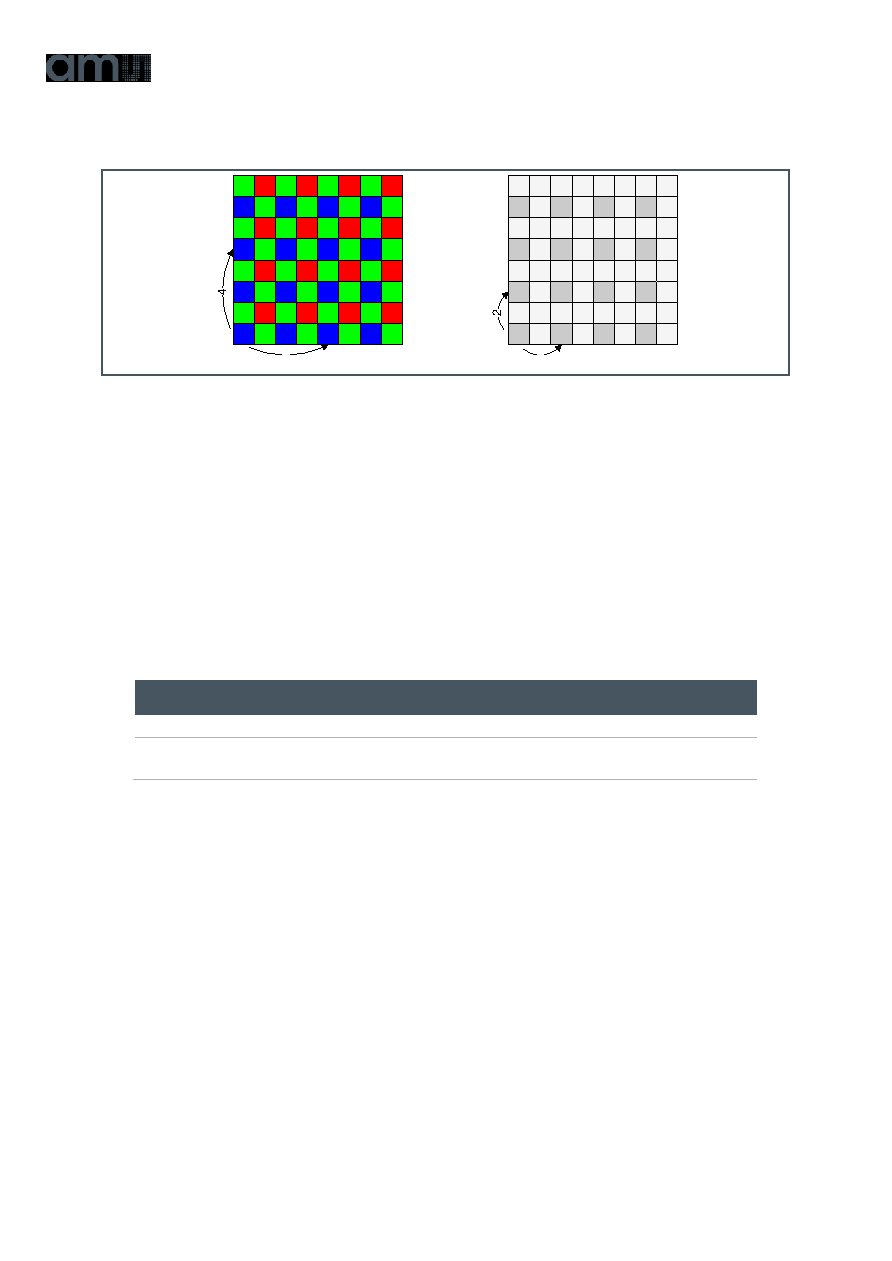

Figure 100:
XY-Subsampling for Color and Mono Sensors
In color mode, only 4 out of 4x4 neighboring pixels are read out. The output data is still Bayer
patterned.
In monochrome mode, only 1 out of 2x2 neighboring pixels is read out.
The amount of pixels per channel mentioned in section 7.6.2, scales accordingly when
combining horizontal subsampling with the readout over a reduced number of data channels.
Vertical Subsampling
Figure 101:
Vertical Subsampling Registers
Register Name
Bank
Addr
Bits
Description
YWINi.SUBS
0
18+4×i
[30:28]
Row subsampling in window i
COLOR_MODE
4
4
[0]
0: Monochrome
1: Color
The sensor supports vertical subsampling (skipping rows), which can be set per window. The
register YWINi.SUBS defines the ratio of the accessed rows in window i as 1 out of every
2SUBS rows.
When COLOR_MODE register is set to 1, the rows are grouped per 2 to follow the Bayer
pattern, as illustrated in Figure 102. It is recommended to only use even window sizes in color
mode to keep the Bayer filter pattern intact. ROI0 in the example below demonstrates the
effect of an odd window size.
4
2
