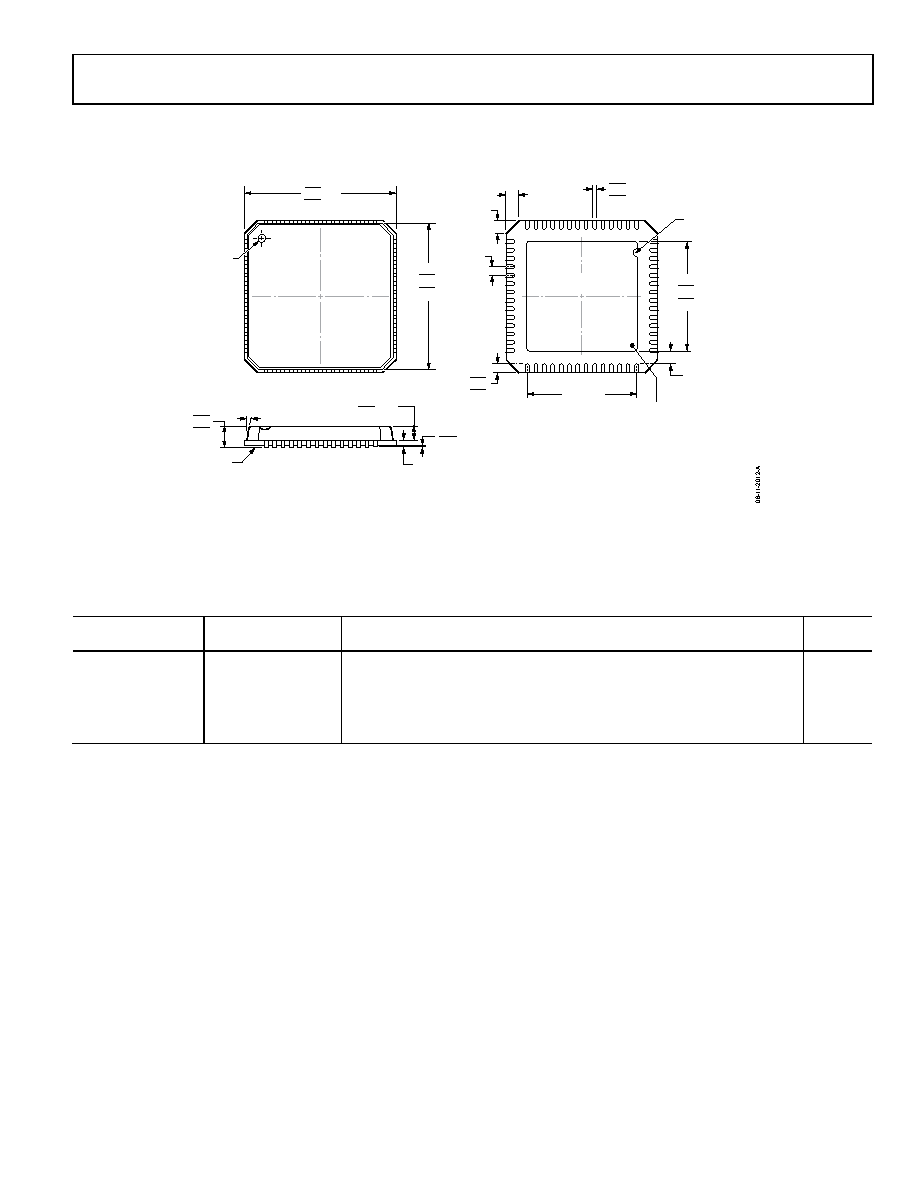

OUTLINE DIMENSIONS

Figure 78. 56-Lead Lead Frame Chip Scale Package [LFCSP_VQ]

8 mm × 8 mm Body, Very Thin Quad

(CP-56-4)

Dimensions shown in millimeters

ORDERING GUIDE

Model1, 2

Temperature Range

Package Description

Package

Option

ADRF6755ACPZ

−40°C to +85°C

56-Lead Lead Frame Chip Scale Package [LFCSP_VQ], Tray

CP-56-4

ADRF6755ACPZ-R7

−40°C to +85°C

56-Lead Lead Frame Chip Scale Package [LFCSP_VQ], 7" Tape and Reel

CP-56-4

EVAL-ADRF6755SDZ

Evaluation Board

EVAL-SDP-CS1Z

SDP-S Controller Board; Interface to EVAL-ADRF6755SDZ (also required)

EVAL-SDP-CB1Z

SDP-B Controller Board; Interface to EVAL-ADRF6755SDZ (alternative solution)

1 Z = RoHS Compliant Part.

2 Choose either EVAL-SDP-CS1Z or EVAL-SDP-CB1Z as EVAL-ADRF6755SDZ interface solution.

COMPLIANT TO JEDEC STANDARDS MO-220-VLLD-2

TOP VIEW

SIDE VIEW

0.50

0.40

0.30

0.23

0.18

0.20 REF

12° MAX

1.00

0.85

0.80

6.50 REF

SEATING

PLANE

0.60 MAX

0.60

MAX

COPLANARITY

0.08

0.05 MAX

0.02 NOM

0.20 MIN

FOR PROPER CONNECTION OF

THE EXPOSED PAD, REFER TO

THE PIN CONFIGURATION AND

FUNCTION DESCRIPTIONS

SECTION OF THIS DATA SHEET.

PIN 1

INDICATOR

8.10

8.00 SQ

7.90

7.85

7.75 SQ

7.65

0.50

BSC

BOTTOM VIEW

EXPOSED

PAD

PIN 1

INDICATOR

0.80 MAX

0.65 TYP

6.65

6.50 SQ

6.35
