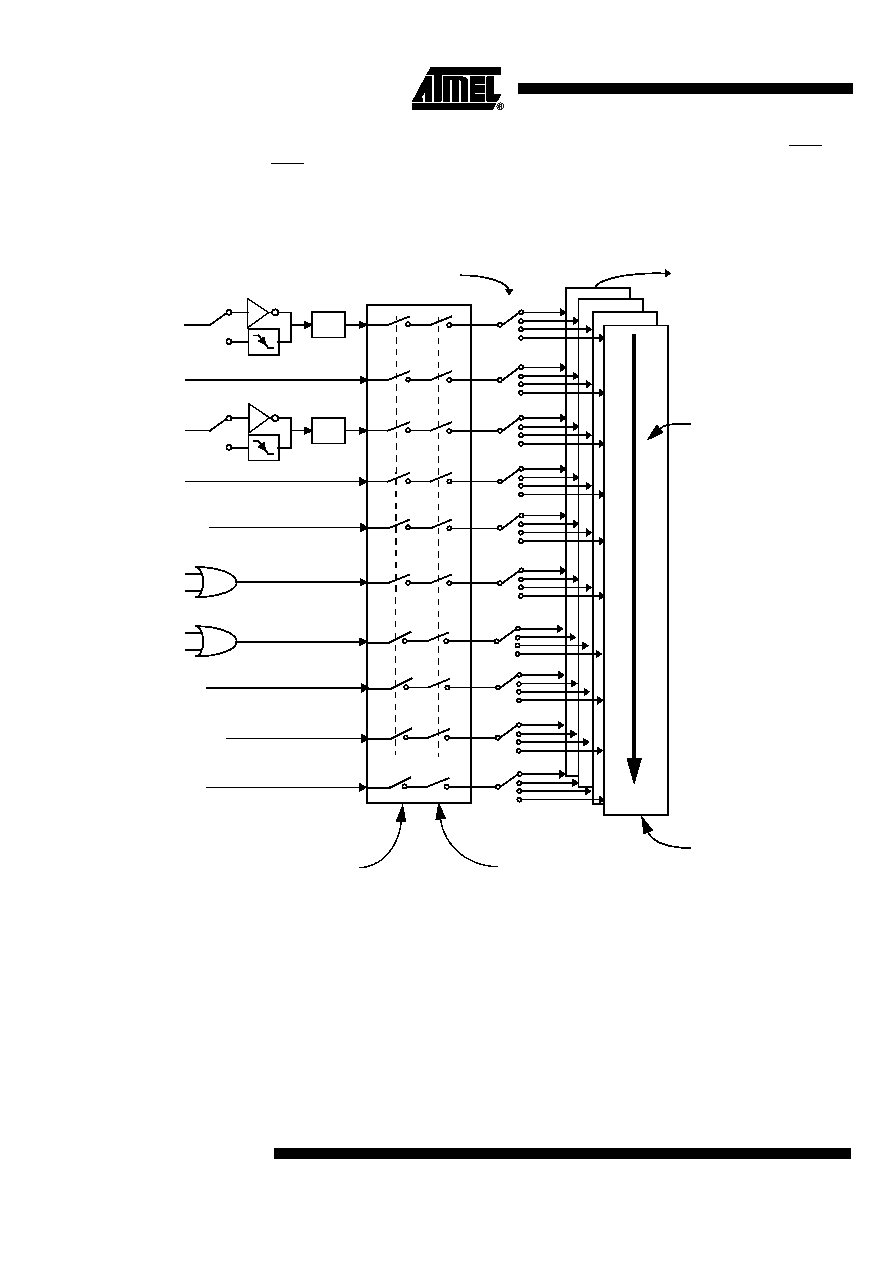

64 / 159 page  64 AT89C51ID2 4289A–8051–09/03 Interrupt System The AT89C51ID2 has a total of 10 interrupt vectors: two external interrupts (INT0 and INT1), three timer interrupts (timers 0, 1 and 2), the serial port interrupt, SPI interrupt, Keyboard interrupt and the PCA global interrupt. These interrupts are shown in Figure 26. Figure 26. Interrupt Control System Each of the interrupt sources can be individually enabled or disabled by setting or clear- ing a bit in the Interrupt Enable register (Table 51 and Table 49). This register also contains a global disable bit, which must be cleared to disable all interrupts at once. Each interrupt source can also be individually programmed to one out of four priority lev- els by setting or clearing a bit in the Interrupt Priority register (Table 52) and in the Interrupt Priority High register (Table 50 and Table 51) shows the bit values and priority levels associated with each combination. IE1 0 3 High priority interrupt Interrupt polling sequence, decreasing from high to low priority Low priority interrupt Global Disable Individual Enable EXF2 TF2 TI RI TF0 INT0 INT1 TF1 IPH, IPL IE0 0 3 0 3 0 3 0 3 0 3 0 3 PCA IT KBD IT SPI IT 0 3 0 3 0 3 TWI IT |
|
