IR3447
39
www.irf.com
© 2013 International Rectifier
July 17, 2013
TYPICAL OPERATING WAVEFORMS
Vin=PVin=12V, Vout=1.2V, Iout=25A, Fs=600kHz, Room Temperature, No air flow

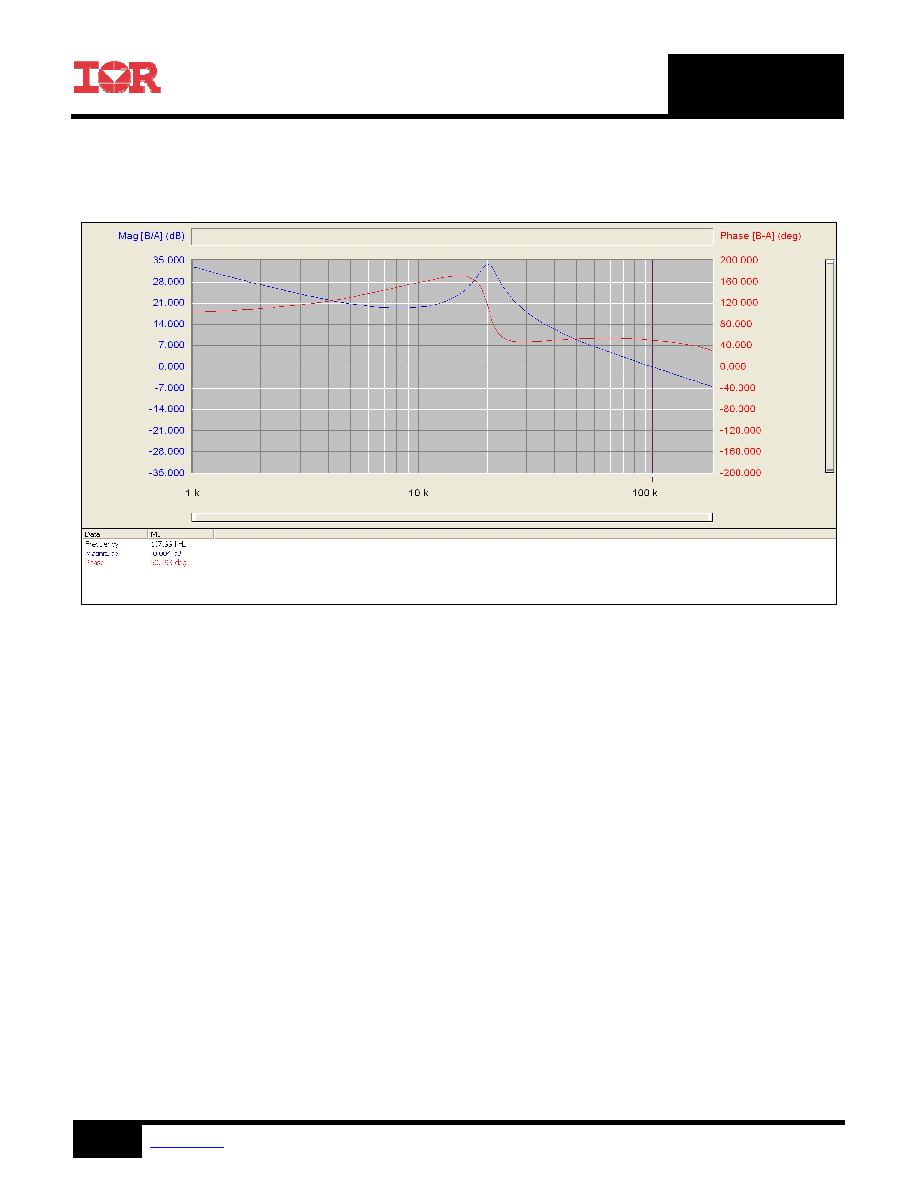

Figure 39: Bode Plot with 25A load: Fo=108 kHz, Phase Margin=50.2 Degrees
