IR3447
10
www.irf.com
© 2013 International Rectifier
July 17, 2013

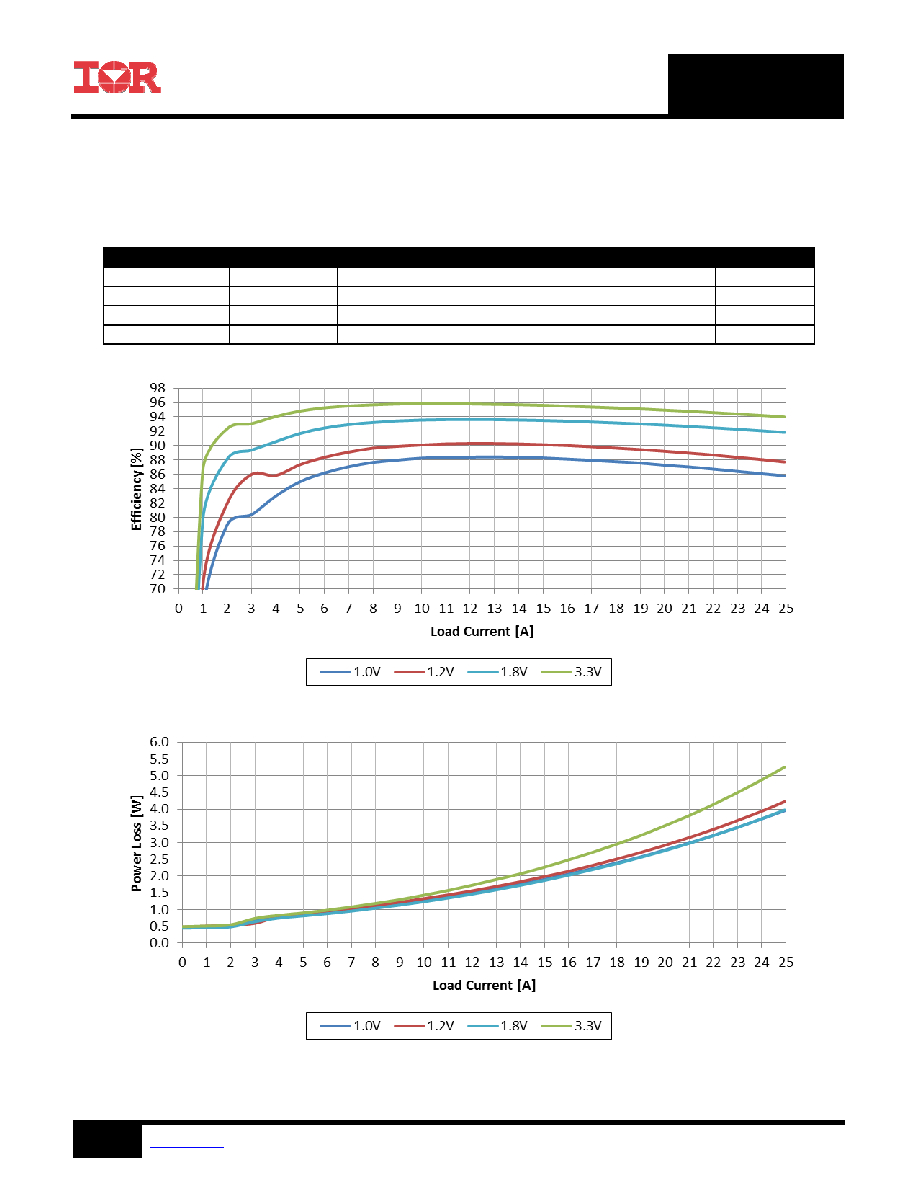

TYPICAL EFFICIENCY AND POWER LOSS CURVES
PVin = Vin = 12V, VCC = Internal LDO, Io=0-25A, Fs= 600kHz, Room Temperature, No Air Flow. Note that the
losses of the inductor, input and output capacitors are also considered in the efficiency and power loss curves.
The table below shows the indicator used for each of the output voltages in the efficiency measurement.
VOUT (V)
LOUT (uH)
P/N
DCR (mΩ)
1.0
0.215
PCDC1008-R215EMO (Cyntec)
0.29
1.2
0.215
PCDC1008-R215EMO (Cyntec)
0.29
1.8
0.311
FP1109-R33-R (Coiltronics)
0.42
3.3
0.68
7443320068 (Wurth Elektronik)
0.72
