IR3447
48
www.irf.com
© 2013 International Rectifier
July 17, 2013
STENCIL DESIGN
Stencils for PQFN can be used with
thicknesses of 0.100-0.250mm (0.004-0.010”).
Stencils thinner than 0.100mm are unsuitable
because they deposit insufficient solder paste
to make good solder joints with the ground
pad; high reductions sometimes create similar
problems. Stencils in the range of 0.125mm-
0.200mm
(0.005-0.008”),
with
suitable
reductions, give best results.
Evaluations have shown that the best overall
performance is achieved using the stencil
design shown in following figure. This design
for a stencil thickness of 0.127mm (0.005”).
The reduction should be adjusted for stencils
of other thicknesses.

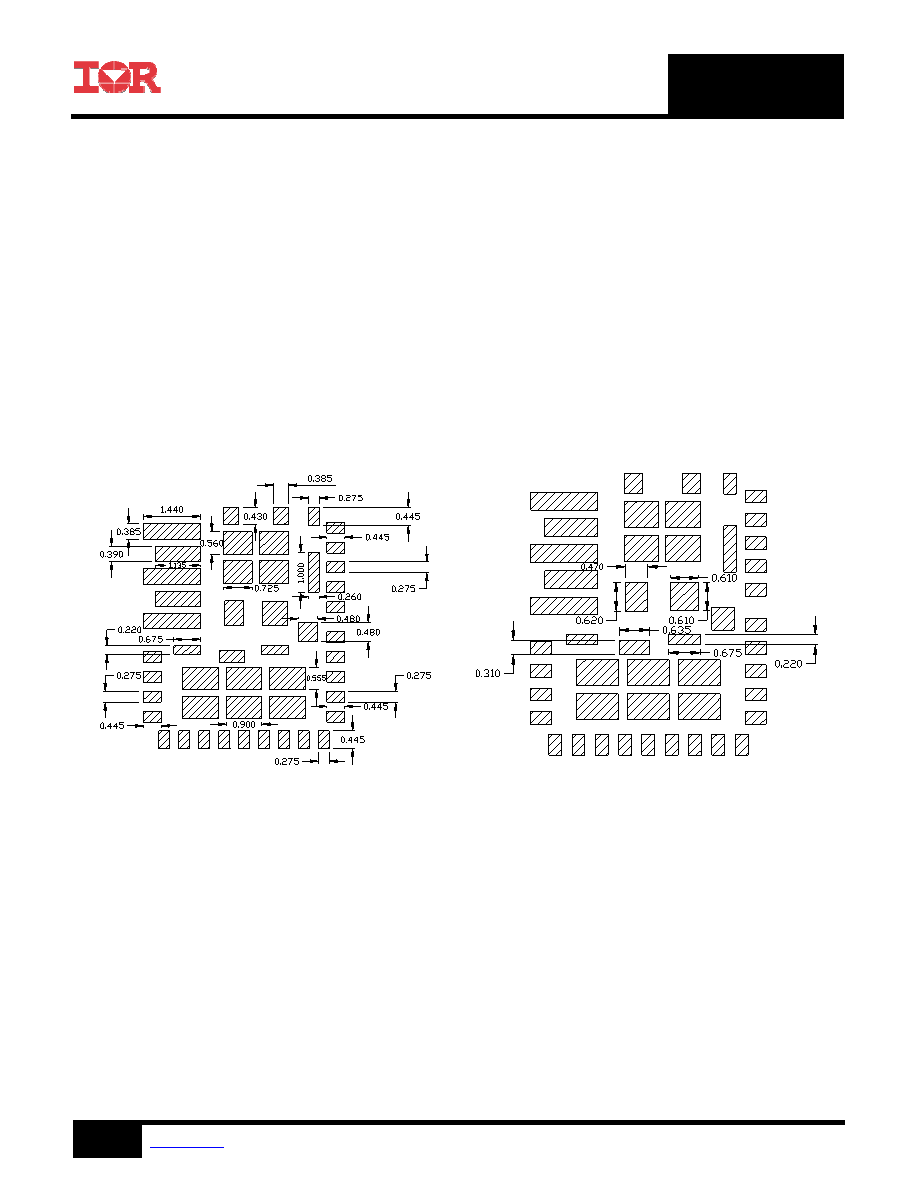

SOLDER PASTE STENCIL
PAD SIZES (DETAIL 1)
SOLDER PASTE STENCIL
PAD SIZES (DETAIL 2)
