ADAR4002ACPZ-R7 Datasheet(PDF) 34 Page - Analog Devices

Part # ADAR4002ACPZ-R7
Description  0.5 GHz to 19 GHz, 1-Channel, Bidirectional True Time Delay Unit
PDF  66 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  AD [Analog Devices]
Direct Link  http://www.analog.com
Logo AD - Analog Devices

ADAR4002ACPZ-R7 Datasheet(HTML) 34 Page - Analog Devices

Back Button ADAR4002ACPZ-R7 Datasheet HTML 30Page - Analog Devices ADAR4002ACPZ-R7 Datasheet HTML 31Page - Analog Devices ADAR4002ACPZ-R7 Datasheet HTML 32Page - Analog Devices ADAR4002ACPZ-R7 Datasheet HTML 33Page - Analog Devices ADAR4002ACPZ-R7 Datasheet HTML 34Page - Analog Devices ADAR4002ACPZ-R7 Datasheet HTML 35Page - Analog Devices ADAR4002ACPZ-R7 Datasheet HTML 36Page - Analog Devices ADAR4002ACPZ-R7 Datasheet HTML 37Page - Analog Devices ADAR4002ACPZ-R7 Datasheet HTML 38Page - Analog Devices Next Button
Zoom Inzoom in Zoom Outzoom out
 34 / 66 page
background image
Data Sheet
ADAR4002
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. A | 34 of 66

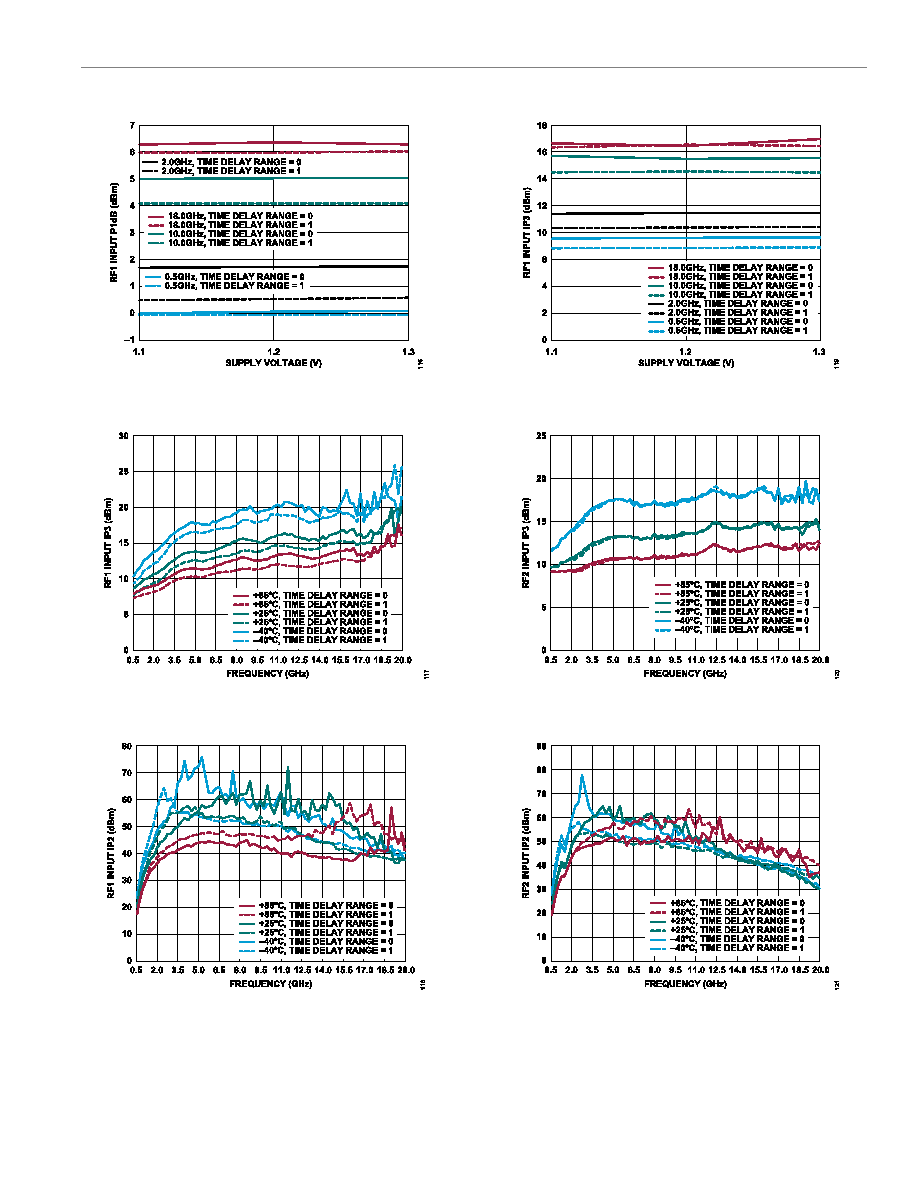

Figure 107. RF1 Input P1dB vs. Supply Voltage over Frequency and Time
Delay Range
Figure 108. RF1 Input IP3 vs. Frequency over Temperature and Time Delay
Range
Figure 109. RF1 Input IP2 vs. Frequency over Temperature and Time Delay
Range
Figure 110. RF1 Input IP3 vs. Supply Voltage over Frequency and Time Delay
Range
Figure 111. RF2 Input IP3 vs. Frequency over Temperature and Time Delay
Range
Figure 112. RF2 Input IP2 vs. Frequency over Temperature and Time Delay
Range
