Data Sheet

ADAR4002

TYPICAL PERFORMANCE CHARACTERISTICS

analog.com

Rev. A | 20 of 66

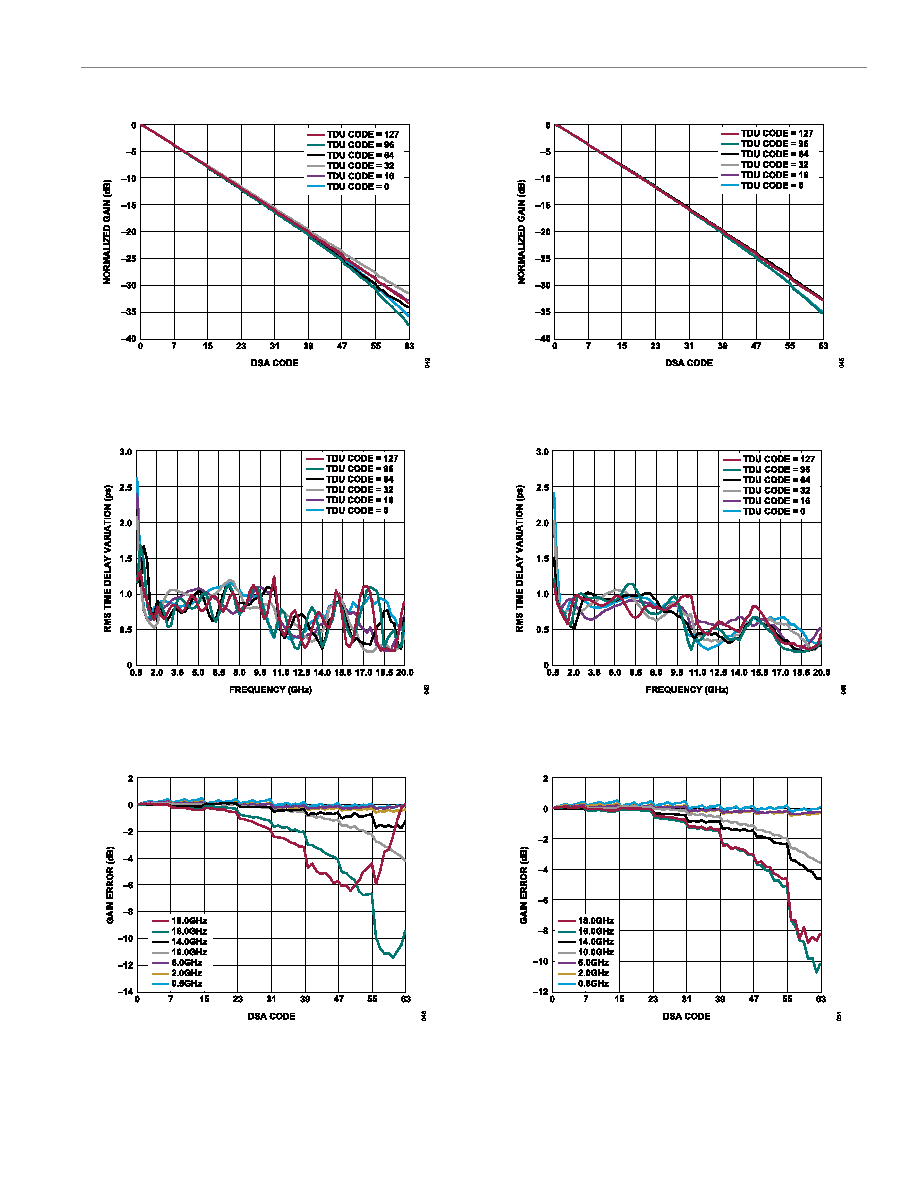

Figure 36. Normalized Gain vs. DSA Code over TDU Code 0, TDU Code 16,

TDU Code 32, TDU Code 64, TDU Code 96, and TDU Code 127, Time Delay

Range 0

Figure 37. RMS Time Delay Variation vs. Frequency, Computed over DSA

Code 0 to DSA Code 31 at TDU Code 0, TDU Code 16, TDU Code 32, TDU

Code 64, TDU Code 96, and TDU Code 127, Time Delay Range 0

Figure 38. Gain Error vs. DSA Code over Frequency, Time Delay Range 0

Figure 39. Normalized Gain vs. DSA Code over TDU Code 0, TDU Code 16,

TDU Code 32, TDU Code 64, TDU Code 96, and TDU Code 127, Time Delay

Range 1

Figure 40. RMS Time Delay Variation vs. Frequency, Computed over DSA

Code 0 to DSA Code 31 at TDU Code 0, TDU Code 16, TDU Code 32, TDU

Code 64, TDU Code 96, and TDU Code 127, Time Delay Range 1

Figure 41. Gain Error vs. DSA Code over Frequency, Time Delay Range 1
