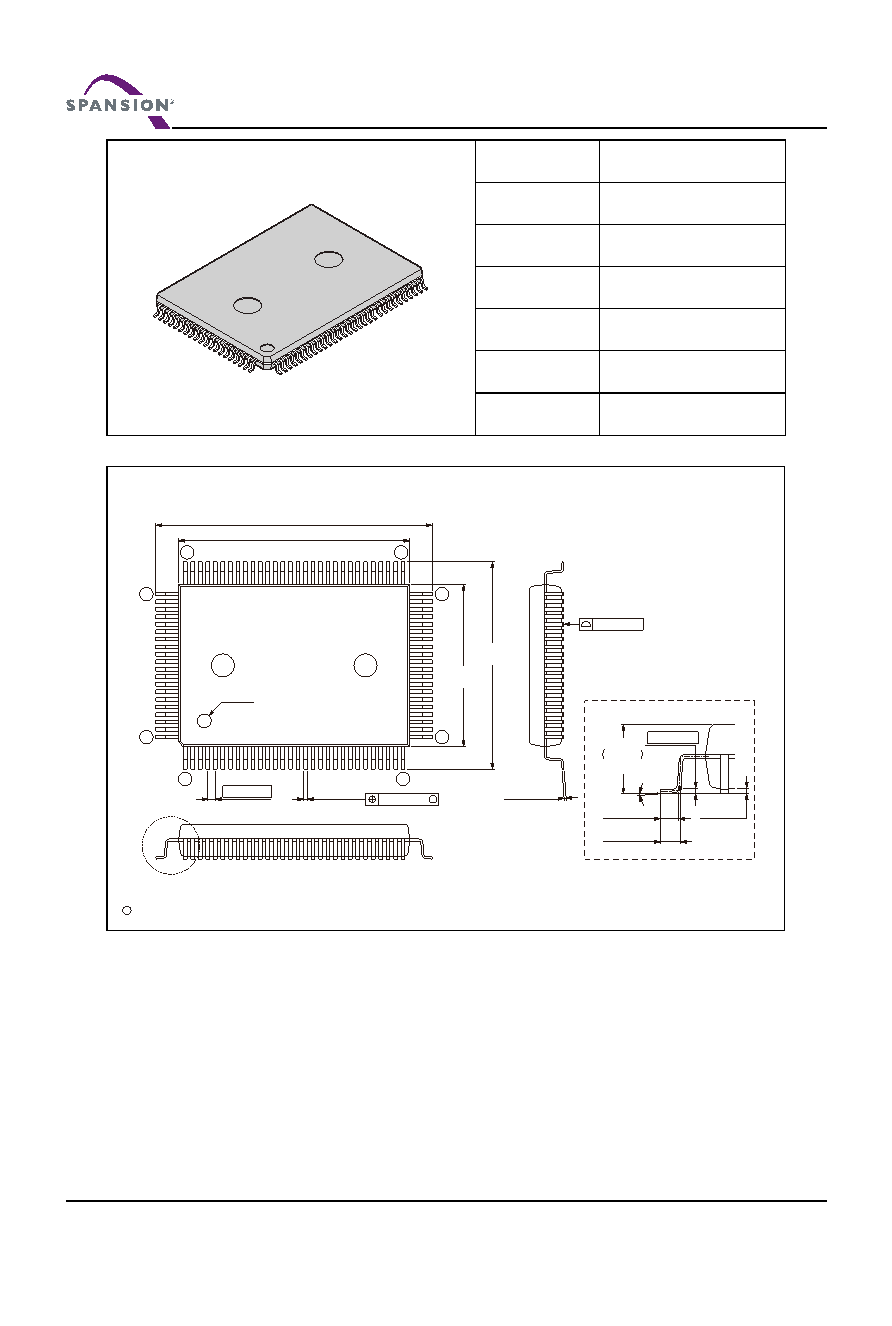

100-pin plastic QFP

Lead pitch

0.65 mm

Package width ×

package length

14.00 mm × 20.00 mm

Lead shape

Gullwing

Sealing method

Plastic mold

Mounting height

3.35 mm MAX

Code

(Reference)

P-QFP100-14 × 20-0.65

100-pin plastic QFP

(FPT-100P-M36)

2011 FUJITSU SEMICONDUCTOR LIMITED HMbF100-36Sc-1-1

130

100

20.00±0.20(.787±.008)

23.90±0.40(.941±.016)

(.551±.008)

17.90± 0.40

(.705±.016)

INDEX

0.65(.026)

0.32 ± 0.05

(.013±.002)

0.13(.005)

"A"

0.17 ± 0.06

(.007 ±. 002)

0.10(.004)

Details of "A" part

(.035 ±. 006)

0.88 ± 0.15

(.031 ±. 008)

0.80 ± 0.20

0.25(.010)

3.00

+0.35

–0.20

+.014

–.008

.118

(Mounting height)

0.25 ± 0.20

(.010 ±. 008)

(Stand off)

0~8°

*14.00±0.20

Dimensions in mm (inches).

Note: The valuesin parentheses are reference values.

Note 1) * : These dimensions do not include resin protrusion.

Note 2) Pins width and pins thickness include plating thickness.

Note 3) Pins width do not include tie bar cutting remainder.
