D a t a S h e e t
12
MB9B410R-DS706-00026-3v0-E, March 11, 2015
CONFIDENTIAL

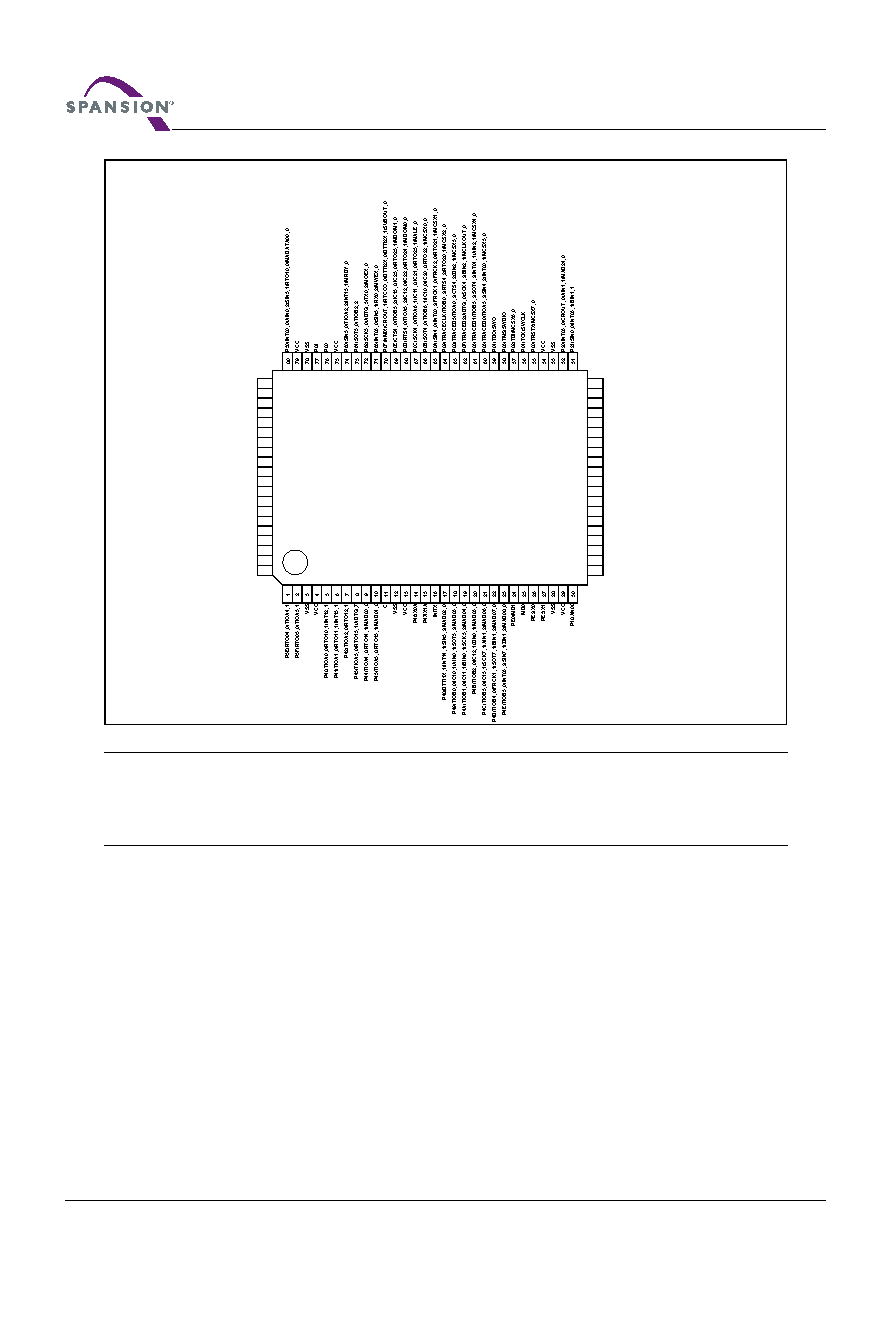

・ FPT-100P-M36
(TOP VIEW)
P51/INT01_0/BIN0_2/SOT3_1/RTO11_0/MADATA01_0
81
50
P22/SOT0_0/TIOB7_1/ZIN1_1
P52/INT02_0/ZIN0_2/SCK3_1/RTO12_0/MADATA02_0
82
49
P23/SCK0_0/TIOA7_1
P53/SIN6_0/TIOA1_2/INT07_2/RTO13_0/MADATA03_0
83
48
P1F/AN15/ADTG_5/FRCK0_1/MAD23_0
P54/SOT6_0/TIOB1_2/RTO14_0/MADATA04_0
84
47
P1E/AN14/RTS4_1/DTTI0X_1/MAD22_0
P55/SCK6_0/ADTG_1/RTO15_0/MADATA05_0
85
46
P1D/AN13/CTS4_1/IC03_1/MAD21_0
P56/INT08_2/DTTI1X_0/MADATA06_0
86
45
P1C/AN12/SCK4_1/IC02_1/MAD20_0
P30/AIN0_0/TIOB0_1/INT03_2/MADATA07_0
87
44
P1B/AN11/SOT4_1/IC01_1/MAD19_0
P31/BIN0_0/TIOB1_1/SCK6_1/INT04_2/MADATA08_0
88
43
P1A/AN10/SIN4_1/INT05_1/IC00_1/MAD18_0
P32/ZIN0_0/TIOB2_1/SOT6_1/INT05_2/MADATA09_0
89
42
P19/AN09/SCK2_2/MAD17_0
P33/INT04_0/TIOB3_1/SIN6_1/ADTG_6/MADATA10_0
90
41
P18/AN08/SOT2_2/MAD16_0
P34/FRCK0_0/TIOB4_1/TX0_1/MADATA11_0
91
40
AVSS
P35/IC03_0/TIOB5_1/RX0_1/INT08_1/MADATA12_0
92
39
AVRH
P36/IC02_0/SIN5_2/INT09_1/MADATA13_0
93
38
AVCC
P37/IC01_0/SOT5_2/INT10_1/MADATA14_0
94
37
P17/AN07/SIN2_2/INT04_1/MAD15_0
P38/IC00_0/SCK5_2/INT11_1/MADATA15_0
95
36
P16/AN06/SCK0_1/MAD14_0
P39/DTTI0X_0/ADTG_2
96
35
P15/AN05/SOT0_1/IC03_2/MAD13_0
P3A/RTO00_0/TIOA0_1/RTCCO_2/SUBOUT_2
97
34
P14/AN04/SIN0_1/INT03_1/IC02_2/MAD12_0
P3B/RTO01_0/TIOA1_1
98
33
P13/AN03/SCK1_1/RTCCO_1/SUBOUT_1/IC01_2/MAD11_0
P3C/RTO02_0/TIOA2_1
99
32
P12/AN02/SOT1_1/TX1_2/IC00_2/MAD10_0
P3D/RTO03_0/TIOA3_1 100
31
P11/AN01/SIN1_1/INT02_1/RX1_2/FRCK0_2/MAD09_0
QFP - 100
<Note>
The number after the underscore ("_") in pin names such as XXX_1 and XXX_2 indicates the relocated
port number. For these pins, there are multiple pins that provide the same function for the same channel.
Use the extended port function register (EPFR) to select the pin.
