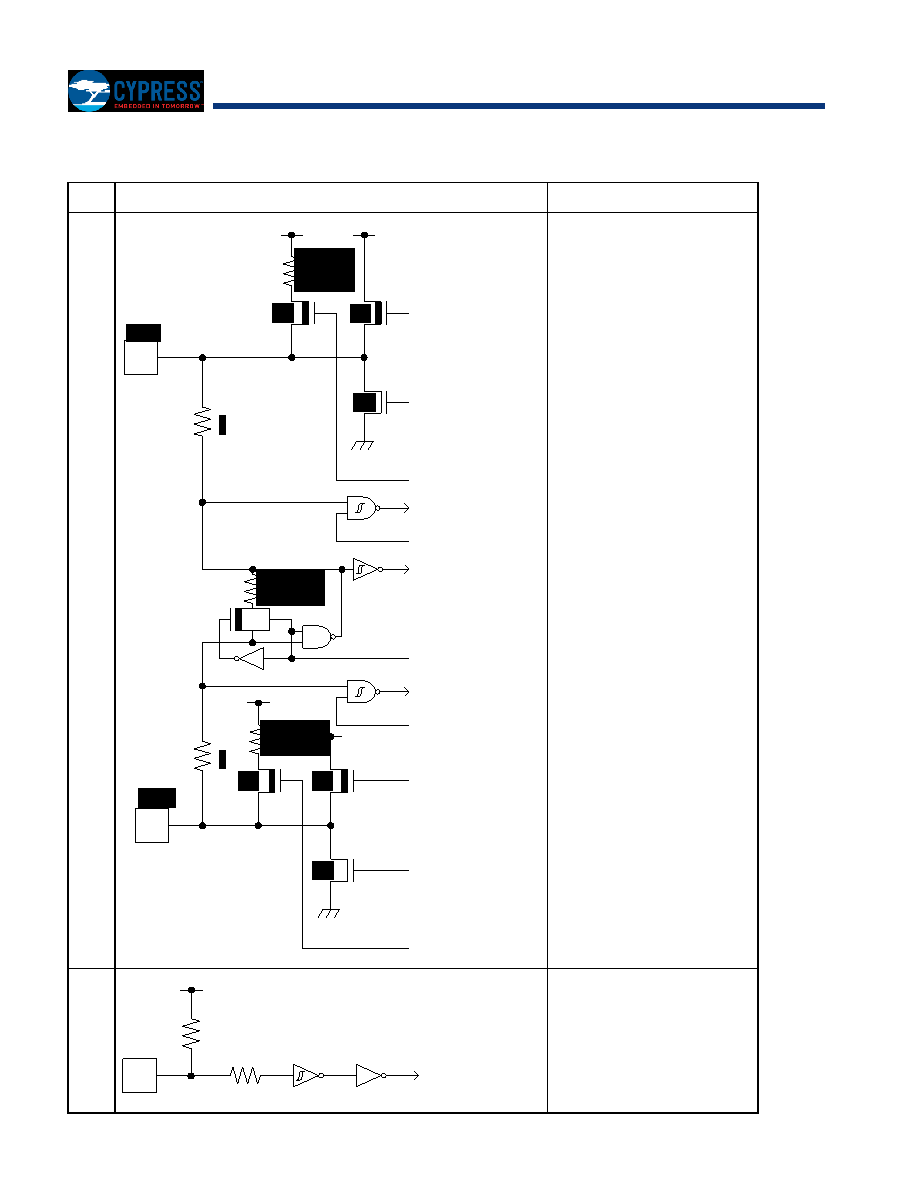

40 / 112 page  Document Number: 002-05615 Rev. *D Page 40 of 112 MB9B410R Series 5. I/O Circuit Type Type Circuit Remarks A It is possible to select the main oscillation / GPIO function When the main oscillation is selected. − Oscillation feedback resistor: Approximately 1 MΩ − With Standby mode control When the GPIO is selected. − CMOS level output. − CMOS level hysteresis input − With pull-up resistor control − With standby mode control − Pull-up resistor: Approximately 50 kΩ − IOH = -4 mA, IOL = 4 mA B − CMOS level hysteresis input − Pull-up resistor: Approximately 50 kΩ P-ch P-ch N-ch R R P-ch P-ch N-ch X0 X1 Pull-up resistor Feedback resistor Pull-up resistor Digital output Digital output Pull-up resistor control Digital input Standby mode Control Clock input Standby mode Control Digital input Standby mode Control Digital output Digital output Pull-up resistor control Pull-up resistor Digital input |
|
