MB9B410R Series

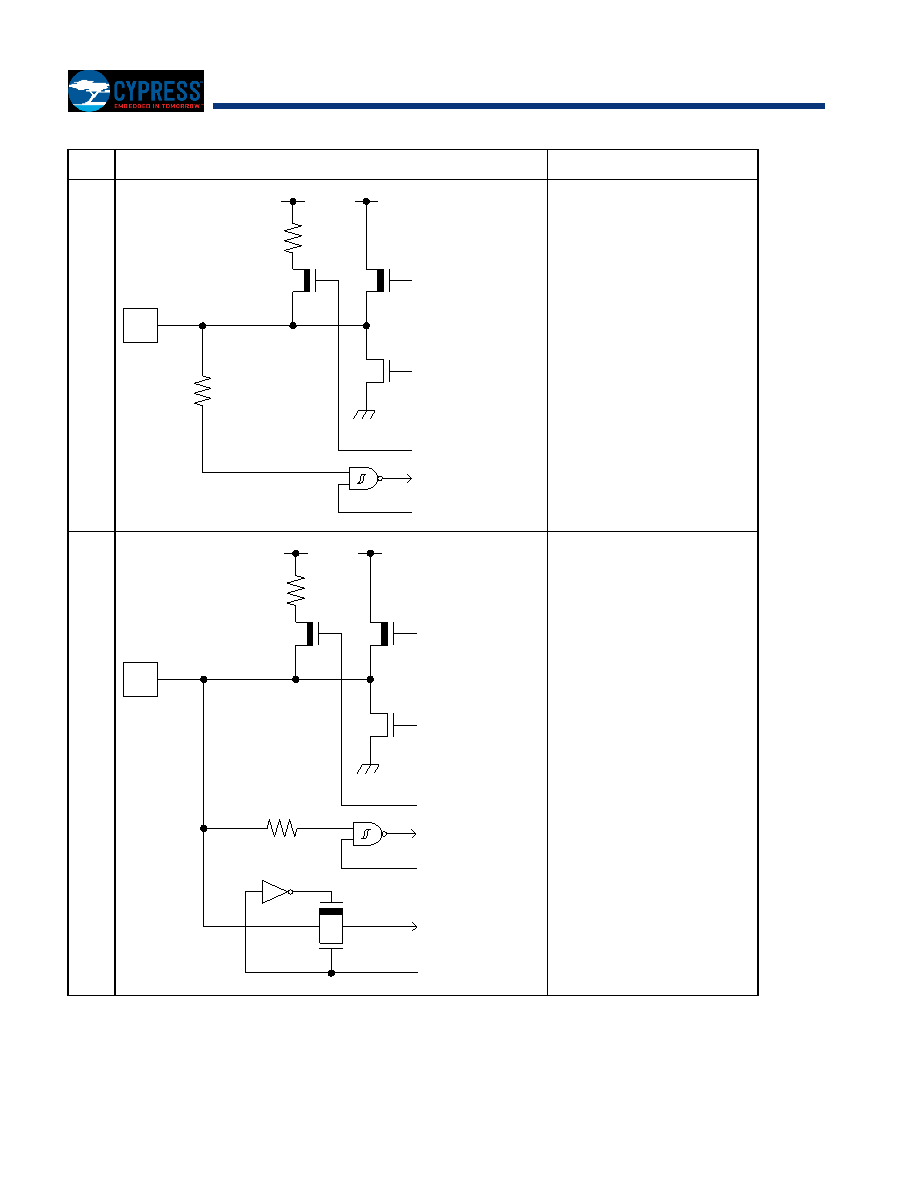

Type

Circuit

Remarks

−

CMOS level output

−

CMOS level hysteresis input

−

With pull-up resistor control

−

With standby mode control

−

Pull-up resistor:

Approximately 50 kΩ

−

IOH = -4 mA, IOL = 4 mA

−

When this pin is used as an

I2C pin, the digital output

−

P-ch transistor is always off

−

+B input is available

−

CMOS level output

−

CMOS level hysteresis input

−

With input control

−

Analog input

−

With pull-up resistor control

−

With standby mode control

−

Pull-up resistor:

Approximately 50 kΩ

−

IOH = -4 mA, IOL = 4 mA

−

When this pin is used as an

I2C pin, the digital output

−

P-ch transistor is always off

−

+B input is available

P-ch

N-ch

P-ch

N-ch

Digital output

Pull-up resistor control

Digital input

Standby mode Control

Digital output

Pull-up resistor control

Digital input

Standby mode Control

Analog input

Input control
