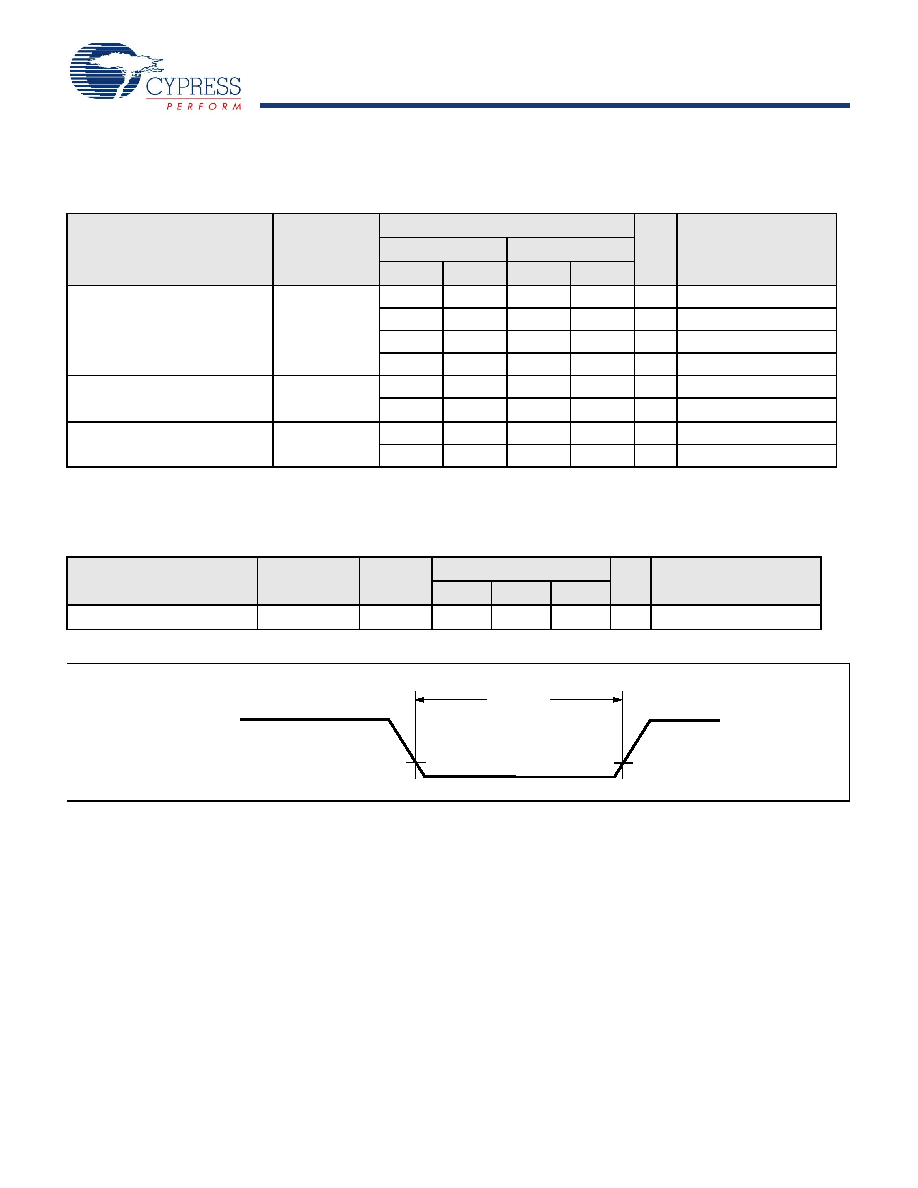

MB96340 Series
Document Number: 002-04579 Rev. *A
Page 71 of 109
14.4.2 Internal Clock timing
14.4.3 External Reset timing
(TA = -40°C to 125°C, VCC = AVCC = 3.0V to 5.5V, VSS = AVSS = 0V)
Parameter
Symbol
Core Voltage Settings
Unit
Remarks
1.8V
1.9V
Min
Max
Min
Max
Internal System clock frequency
(CLKS1 and CLKS2)
fCLKS1, fCLKS2
0
92
0
96
MHz
Others than below
0
86
0
96
MHz
MB96F348T/H/CxB/C
0
72080
MHz
MB96F345
0
68
0
74
MHz
MB96F34xY/R/Axx
Internal CPU clock frequency (CLKB),
internal peripheral clock frequency
(CLKP1)
fCLKB, fCLKP1
0
52
0
56
MHz
Others than below
0
36040
MHz
MB96F345
Internal peripheral clock frequency
(CLKP2)
fCLKP2
0
28
0
32
MHz
Others than below
0
26
0
28
MHz
MB96F34xY/R/Axx
(TA = -40°C to 125°C, VCC = AVCC = 3.0V to 5.5V, VSS = AVSS = 0V)
Parameter
Symbol
Pin
Value
Unit
Remarks
Min
Typ
Max
Reset input time
tRSTL
RSTX
500
-
-
ns
0.2 VCC
RSTX
tRSTL
0.2 VCC
