MB96340 Series
Document Number: 002-04579 Rev. *A
Page 97 of 109

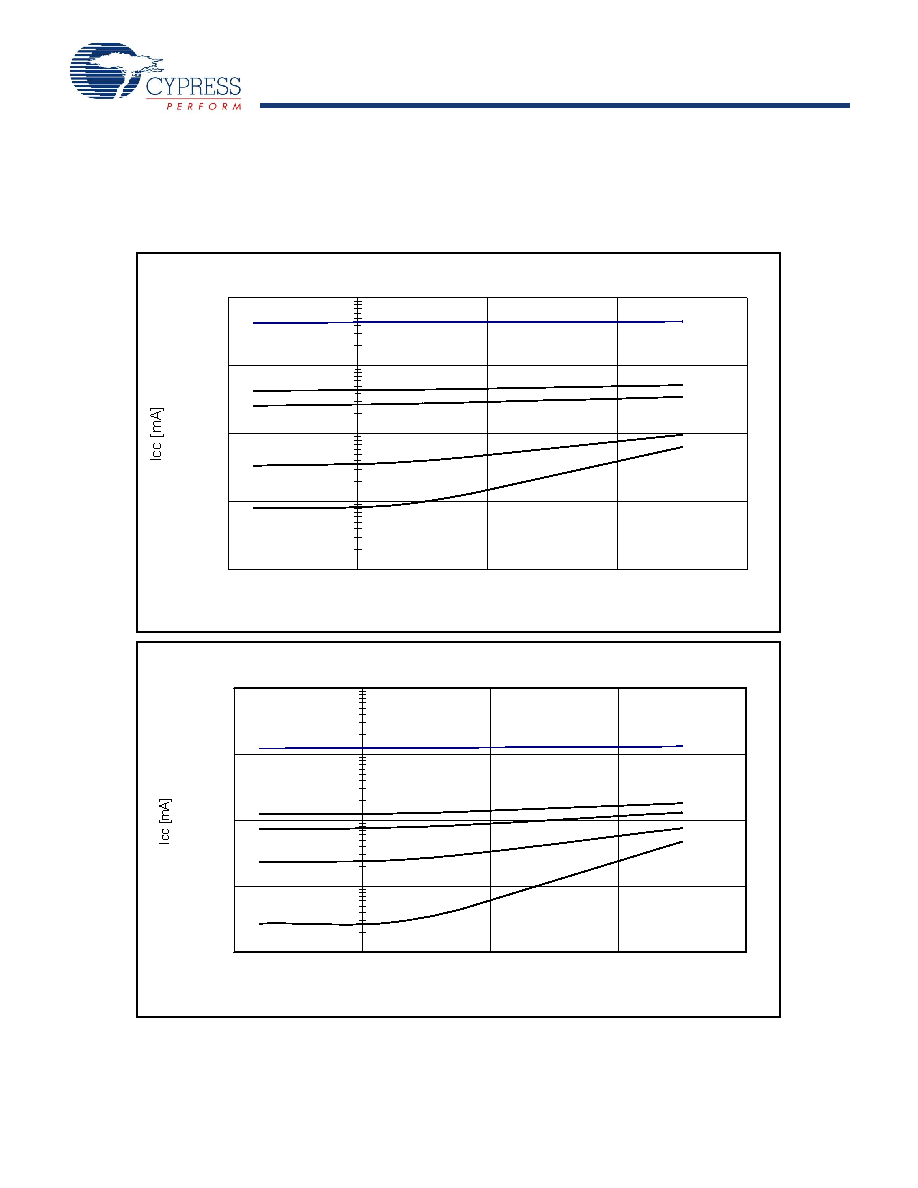

15. Example Characteristics
The diagrams below show the characteristics of one measured sample with typical process parameters.
Run Mode
0.01
0.10
1.00
10.00
100.00
-50.00
0.00
50.00
100.00
150.00
Ta [ºC]
Main osc. (4 MHz)
RC clock (2 MHz)
RC clock (100 kHz)
Sub osc.(32 kHz)
PLL clock (56 MHz)
Sleep mode
0.01
0.10
1.00
10.00
100.00
-50.00
0.00
50.00
100.00
150.00
Ta [ºC]
Main osc. (4 MHz)
RC clock (100 kHz)
Sub osc.(32 kHz)
RC clock (2 MHz)
PLL clock (56 MHz)
