MB96340 Series

Document Number: 002-04579 Rev. *A

Page 16 of 109

■ CMOS level output (programmable IOL = 5mA, IOH = -5mA

and IOL = 2mA, IOH = -2mA)

■ 2 different CMOS hysteresis inputs with input shutdown

function *

■ Automotive input with input shutdown function

■ TTL input with input shutdown function *

■ Programmable pull-up resistor: 50k approx.

■ Analog input

*MB96F345Dyy or MB96F345Fyy: Only Automotive input

and CMOS hysteresis input (0.7/0.3) are supported

■ CMOS level output (IOL = 3mA, IOH = -3mA)

■ 2 different CMOS hysteresis inputs with input shutdown

function *

■ Automotive input with input shutdown function

■ TTL input with input shutdown function *

■ Programmable pull-up resistor: 50k approx.

*MB96F345Dyy or MB96F345Fyy: Only Automotive input

and CMOS hysteresis input (0.7/0.3) are supported

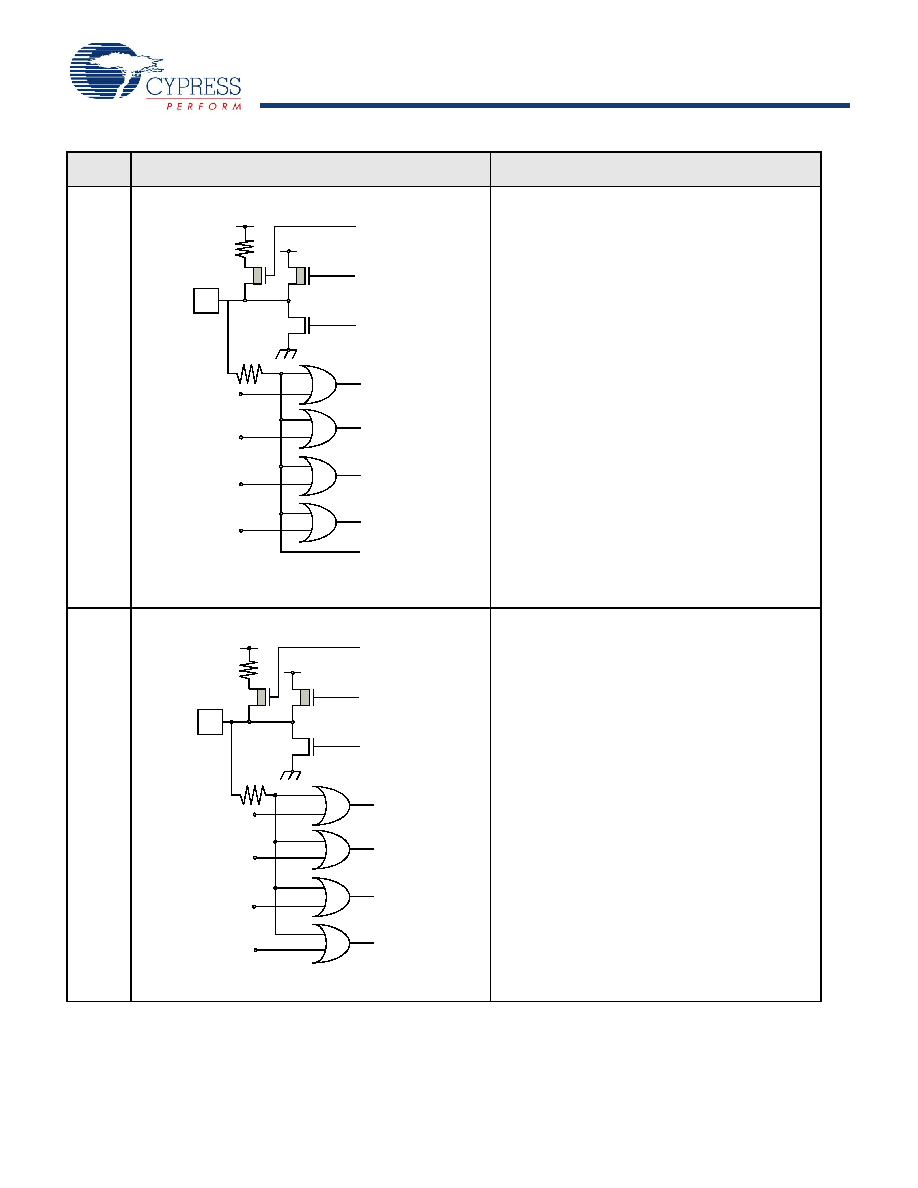

Type

Circuit

Remarks

Hysteresis input

Standby control

for input shutdown

Standby control

for input shutdown

Standby control

for input shutdown

Standby control

for input shutdown

Pull-up control

Pout

Nout

Automotive input

TTL input

Analog input

Pout

pull-up control

Nout

Hysteresis input

Automotive input

TTL input

Hysteresis input

Standby control

for input shutdown

Standby control

for input shutdown

Standby control

for input shutdown

Standby control

for input shutdown
